ARNVG w/ ELBIT New Production High FOM 1800 Plus Full Spec Grade Generation III White Phosphor Image Tubes. Data Sheets Supplied.
- Auto-Gated Dual Tube Performance

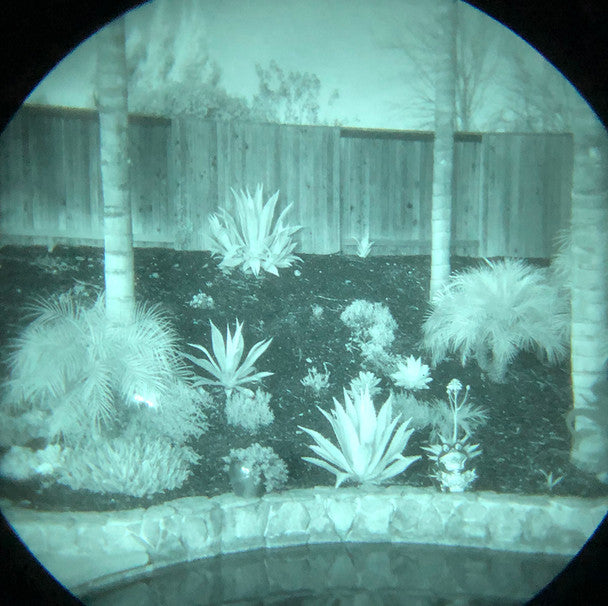

- Gen III P45 White Phosphor Image Intensifiers
- Lemo Port For Battery Pack
- Single 3V Battery
- MADE IN USA

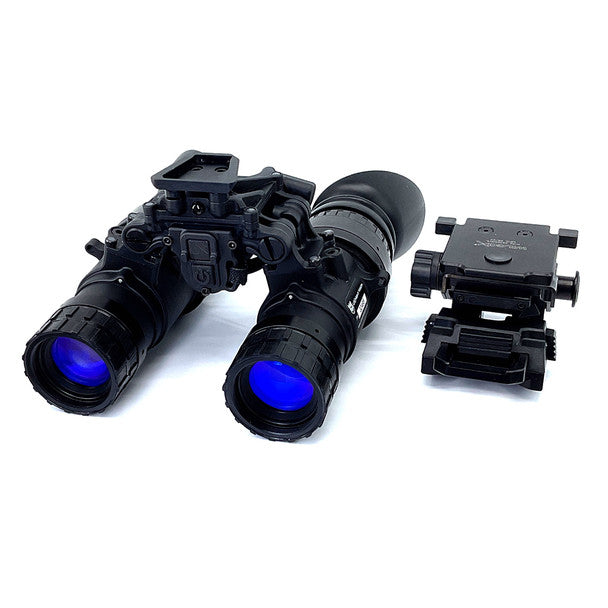

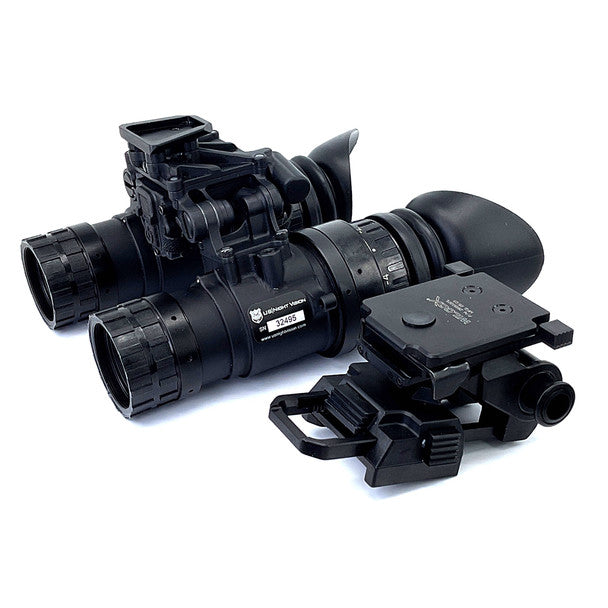

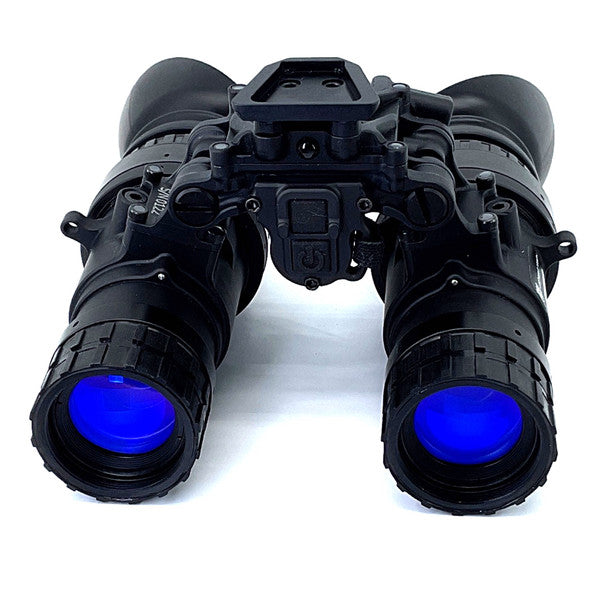

Manufactured by AB Night Vision / Built by US Night Vision. The RNVG-A, also known as A-RNVG, (Articulating Ruggedized Night Vision Goggle) is an extremely tough, full featured night vision binocular. The housing is billet machined from aircraft grade aluminum and designed to handle challenging real-world environments. During drop testing the housings far exceeded military requirements of MIL-STD-810H drop testing, surviving falls onto bare concrete from heights beyond what lenses and image intensifiers can handle.
The design includes push button switches for power and an Infrared Illuminator. The IR illuminator button is guarded by a fence with distinctive contours to prevent inadvertently activating the IR illuminator. Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition. The unit is powered by either an onboard 123 battery or auxiliary power from a battery pack using a 4 pin LEMO style connector.

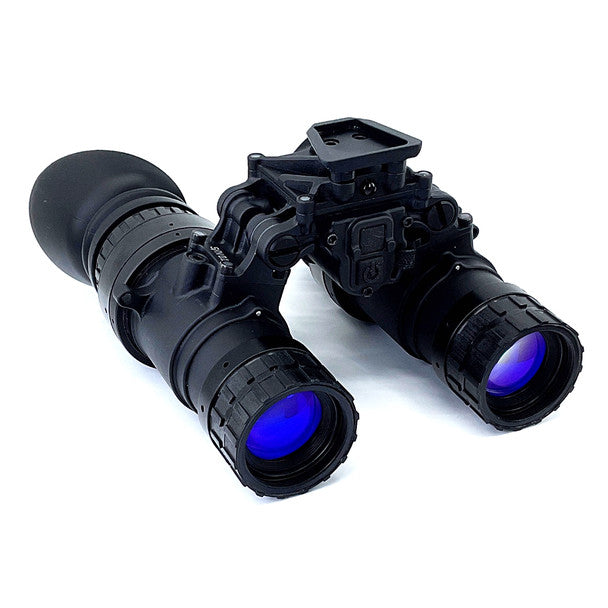

RNVG-A optics feature a full range of adjustments. The mil-spec objectives allow the user to focus between 9.8 inches and infinity, while the mil-spec eyepieces offer a diopter adjustment range of -6 to +2. The articulating design allows the user to quickly adjust for an Interpupillary Distance from 47mm to over 80mm.Â

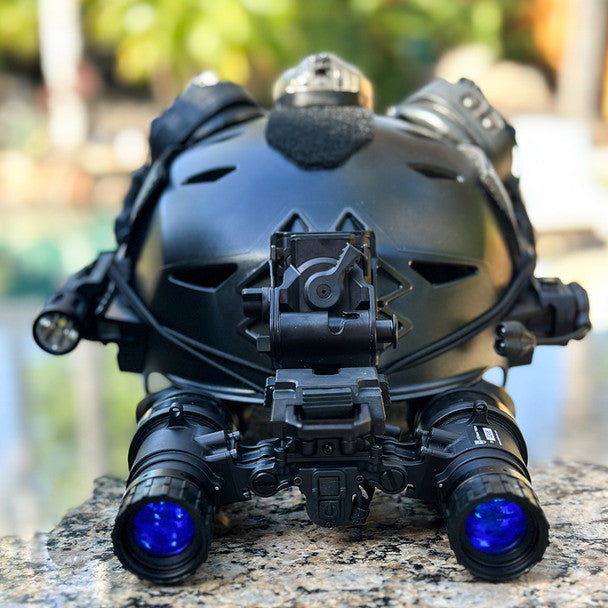

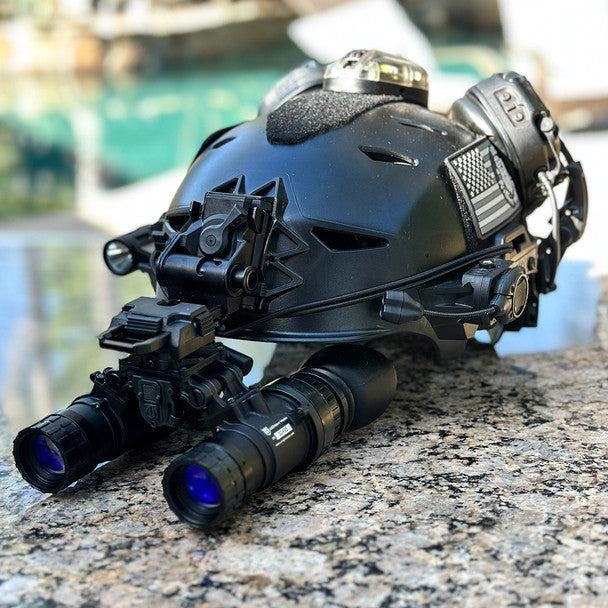

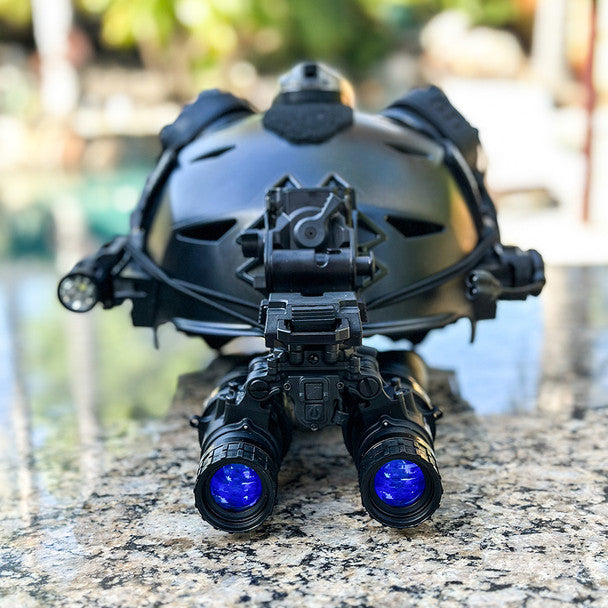

Each optical pod can be rotated up out of the users view as desired, freeing one or both eyes for natural sight as conditions demand. When the goggle is helmet mounted and in the stowed position, the optical pods can be folded back flat against the helmet to minimize neck strain and better protect the goggle, and the user, from impacting overhead objects. The optical pods automatically turn off when articulated up. This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are ‘off’ in the stowed position with the optical pods folded back against the helmet. The force required to swing the optical pods is user adjustable using a coin.
This system incorporates the Lemo Port / Housing Black / PVS-14 Optic Set

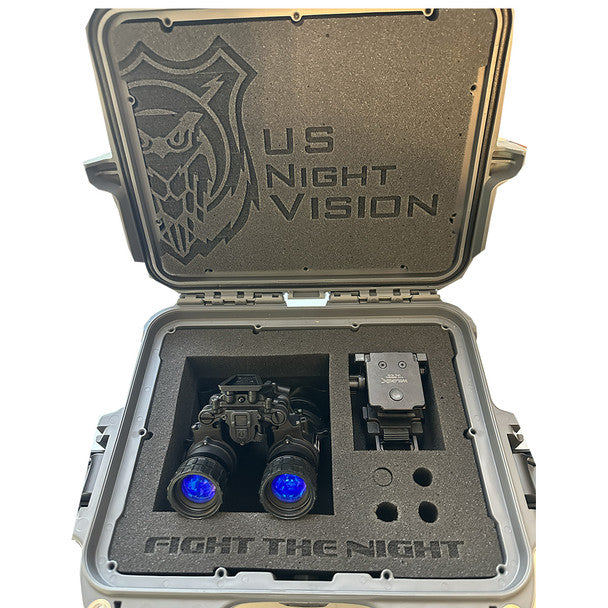

Ships with: Unit w/ Dove Tail Mounting Plate, Wilcox G24 LW helmet mount, Hard Case, Eye Cups (2), Sacrificial Windows (2), Lens Tissue, Lanyard, Lanyard Rings, Objective Lens Covers (2), Ops Manual, (1) CR123 Battery, 2-year warranty.
Export: The Export of this product without proper licensing is strictly prohibited and falls under ITAR per title 22, CFR, parts 120-130. Please contact US Night Vision Export Dept. to receive further information on how to obtain proper licensing from the U.S. Department of State
