AGM PVS-14E 3APW

AGM PVS-14E 3APW

Regular price $4,495.00 USD
Regular price Sale price $4,495.00 USD
Sale Sold out
Shipping calculated at checkout.

Characteristics

Image Intensifier Tube: Gen 3 3APW

Magnification: 1x (3x and 5x optional)

Lens System: 26 mm; F/1.2

FOV: 40°

Package Includes

  • Head Mount Assembly
  • Lens Cap/Daylaight Filter
  • Eye Cup
  • Helmet/ Head Mount Adapter
  • Soft Carrying Case
  • Neck Cord
  • Lens Paper
  • Sacrificial Window
  • Demist Shield
  • Manual
  • Battery

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Description And features


In 2024, AGM Global Vision expands on its commitment to continuous improvement by updating the tried-and-true PVS-14 night vision system. AGM’s New PVS-14E is an enhanced version that offers subtle, but crucial, improvements in its battery system flexibility and overall weight.

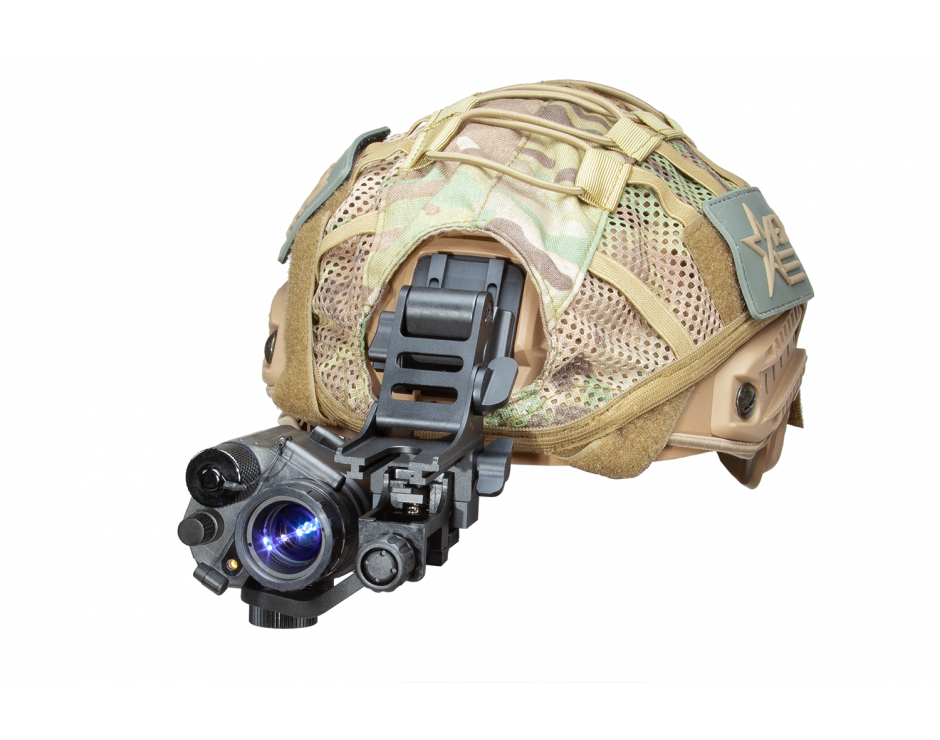

The AGM PVS-14E Night Vision Monocular is a rugged, lightweight, and multi-purpose night vision device that can be used in some of the most challenging environments. The PVS-14E can be used as a handheld device, mounted on the included head harness, or can be mounted to traditional ballistic helmets. Equipped with an Advanced Auto Shut-off System, the PVS-14E saves power and enhances convenience by turning off and back on automatically when the device is articulated to the side and back into
operating position again.
The PVS-14E is outfitted with a more compact lens and eyepiece bringing the total unit weight to just 10.2 oz (290 grams). The unit has a flexible power delivery system making it compatible with AA and CR123 batteries, this system ensures uninterrupted operation by not limiting you to one battery choice. The unit is also equipped with an electronic polarity switching system which means you don’t have to worry about installing the battery in a specific orientation. Just place the battery in the compartment and you’re
ready to go!
The unit includes manual gain control, an automatic bright light shutoff feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. When the light level returns below the threshold, the device will turn back on automatically.
Because of AGM Global Vision’s commitment and confidence in product quality, the PVS-14E is backed by a 3-Year Warranty.
This unit conforms to 810G Military standards and demonstrates the highest quality form and function beyond military standards.

Warning: California's Proposition 65


  • Unique electronic controller
  • Auto shut-off and manual gain control
  • Multiple battery compatibility (AA or CR123)
  • Automatic on/off switching system when articulating the device out of your view
  • More compact and lighter than a conventional PVS-14: 4.25 in / 108 mm and 10.2 oz / 290 g
  • Easy-to-use controls and adjustments
  • Versatile mounting options
  • Manual gain control
  • Built-In IR illuminator
  • Waterproof and rugged
  • 3-year warranty

Specifications


Dimensions: 108 × 63 × 69 mm (4,25 × 2,5 × 2,7 in)
Image Intensifier Tube: Gen 3 Auto-Gated, P45-White
Resolution: 64-72 lp/mm
Field of view cleanness by zone: Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.
Magnification: 1x
Lens System: 26 mm; F/1.2
FOV: 40°
Focus Range: 0.25 m to infinity
Diopter Adjustment: -6 to +2 diopters
Led Indicators: - Low Battery - IR On - Excessive Light Conditions
Infrared Illuminator: Yes
Manual Gain Control: Yes
Bright Light Cut-Off: Yes
Battery Type: One AA Alkaline or one AA Lithium L91 or one CR123 Lithium or one AA or RCR123 rechargeable battery up to 3.7V
Battery Life (Operating): Up to 40 hours at 20°C
Operating Temperature Range: -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range: -51° C to +85° C (-60° F to 185° F)
Weight: 290 g (10.2 oz)
Package Includes: Night Vision Monocular, Head Mount Assembly, Lens Cap/ Daylight Filter, Eye Cup, Helmet/ Head Mount Adapter, Soft Carrying Case, Neck Cord, Lens Paper, Sacrificial Window, Demist Shield, Manual, Battery
