AGM PVS14 3AW1 White Phosphor Night Vision

AGM PVS14 3AW1 White Phosphor Night Vision

$4,095.00 USD
$4,095.00 USD
Sale Sold out
Shipping calculated at checkout.

Description And features

Recommended by an Infantry and Special Reconnaissance Veteran. Night vision capability is essential for reconnaissance and surveillance operations - this PVS-14 delivers combat-proven performance when darkness is your advantage.

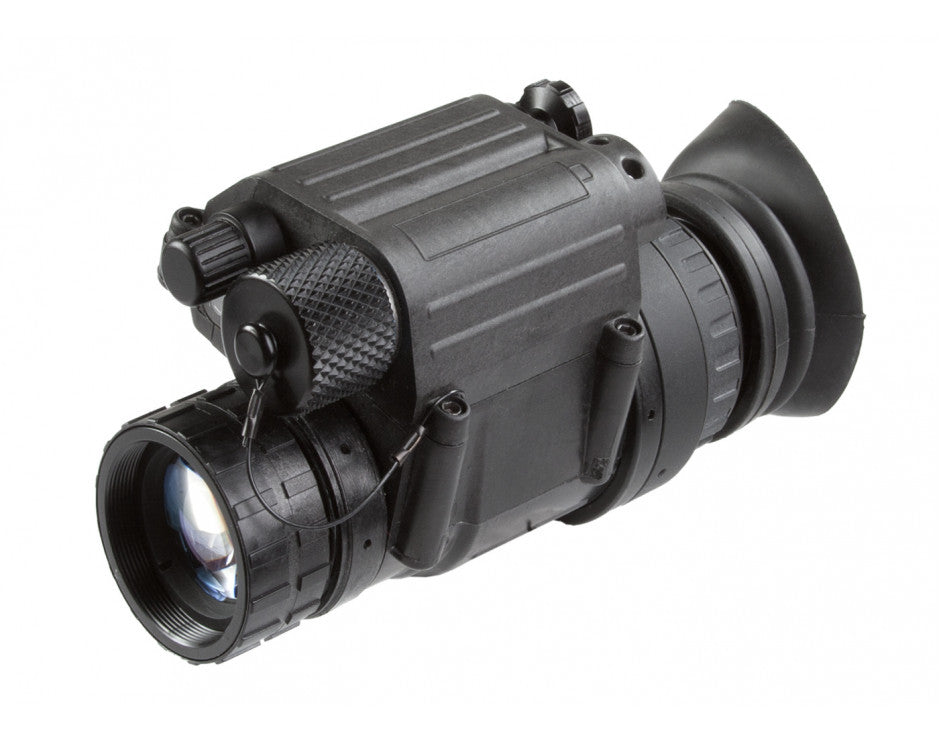

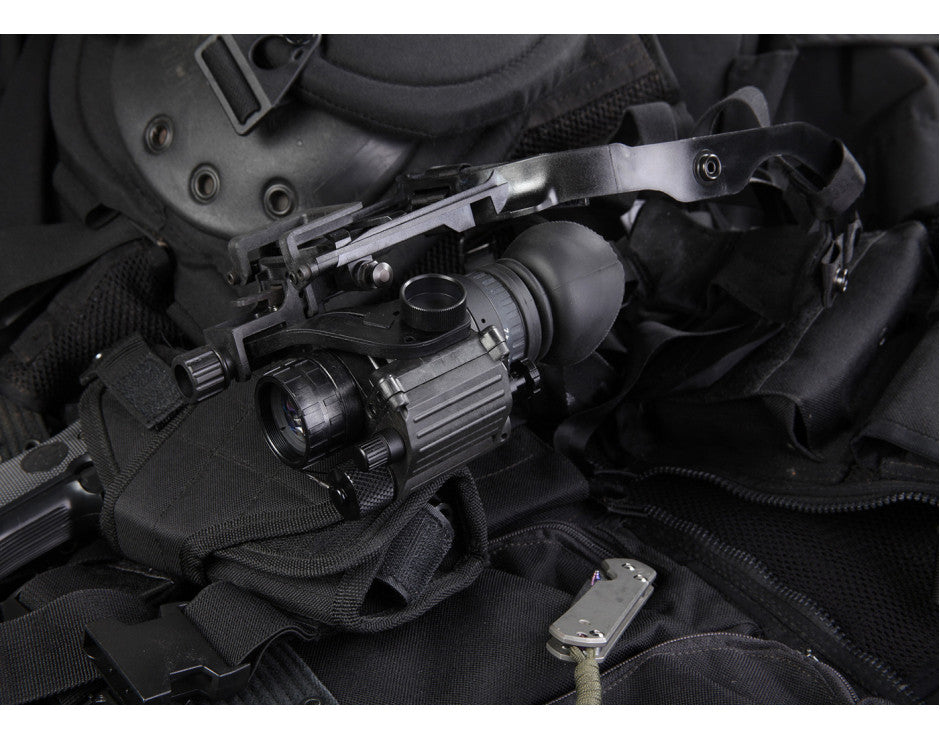

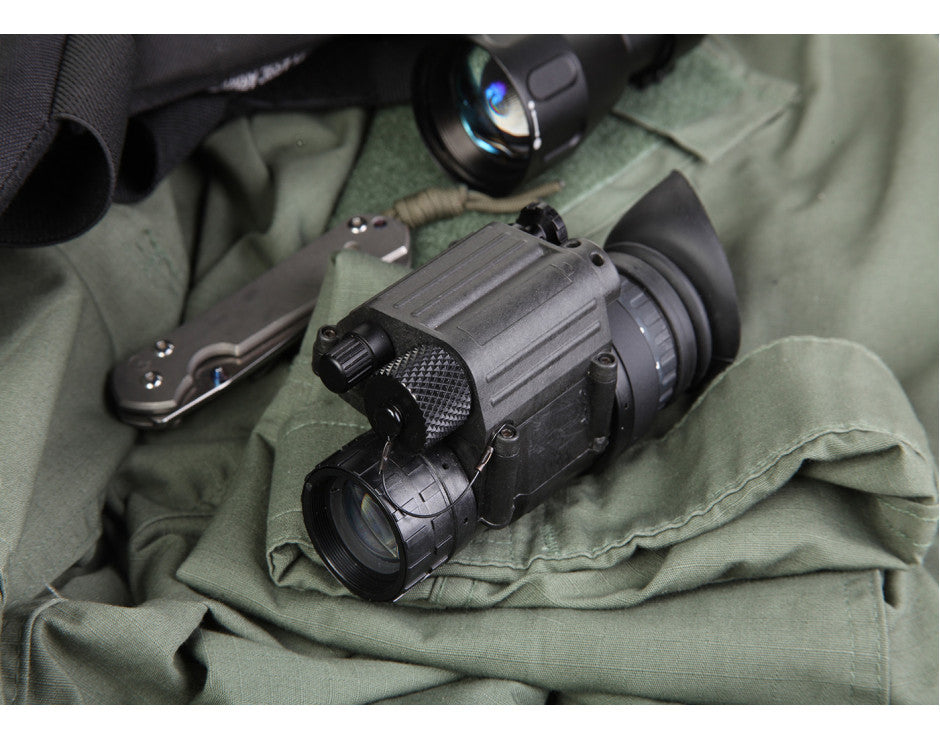

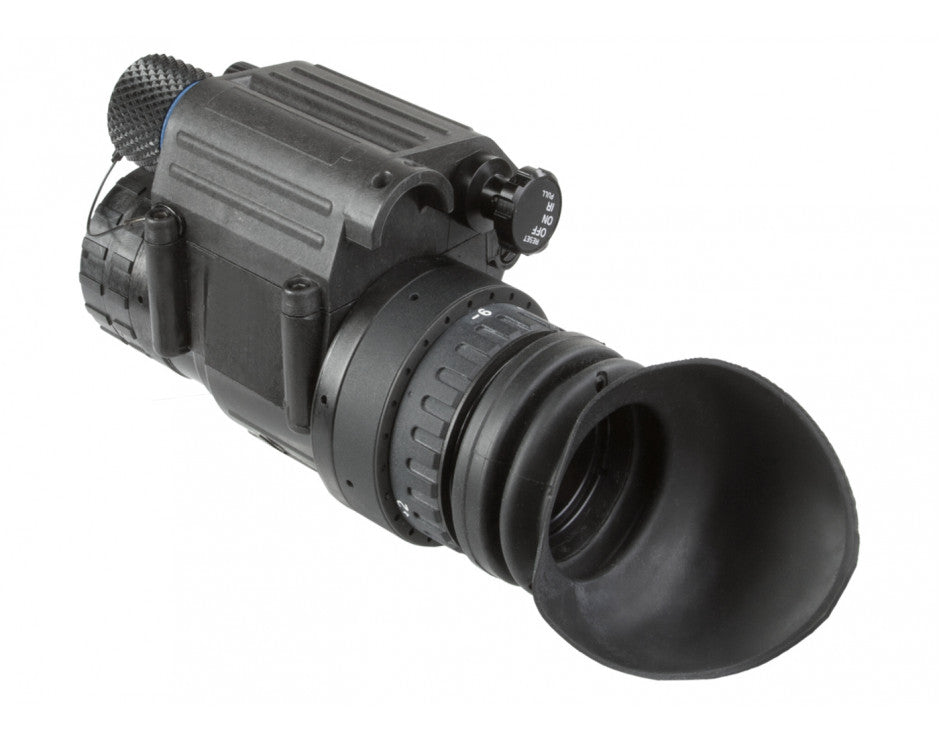

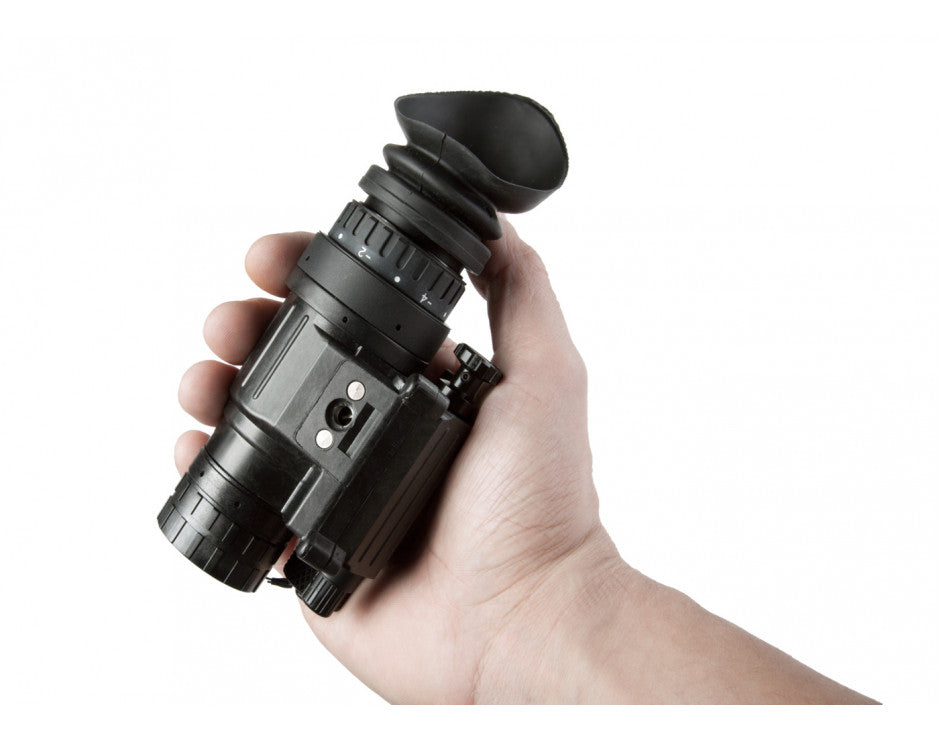

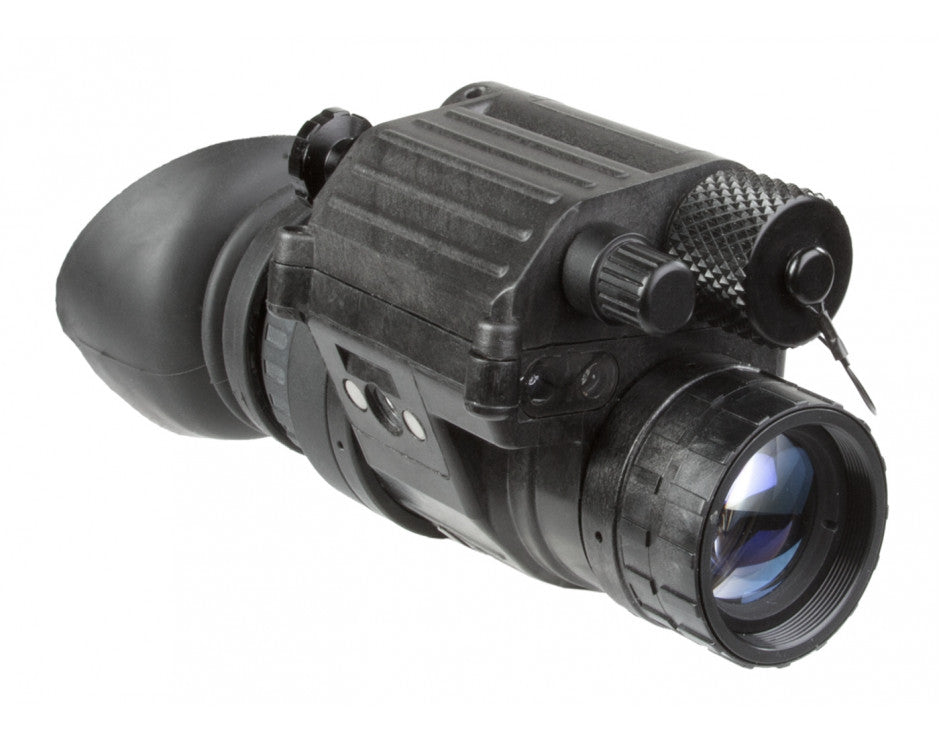

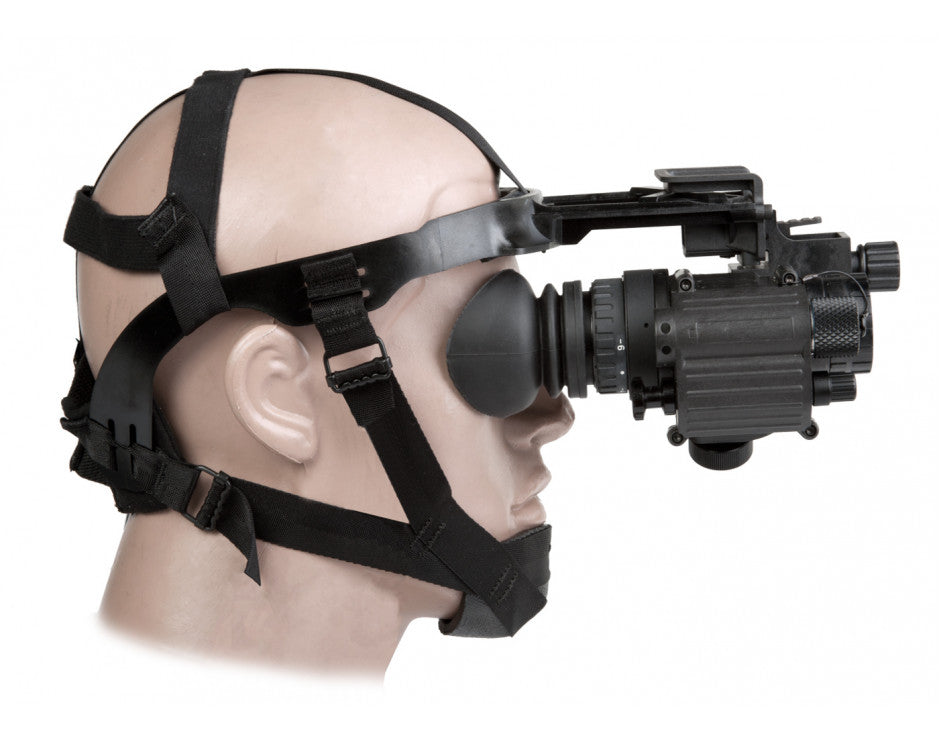

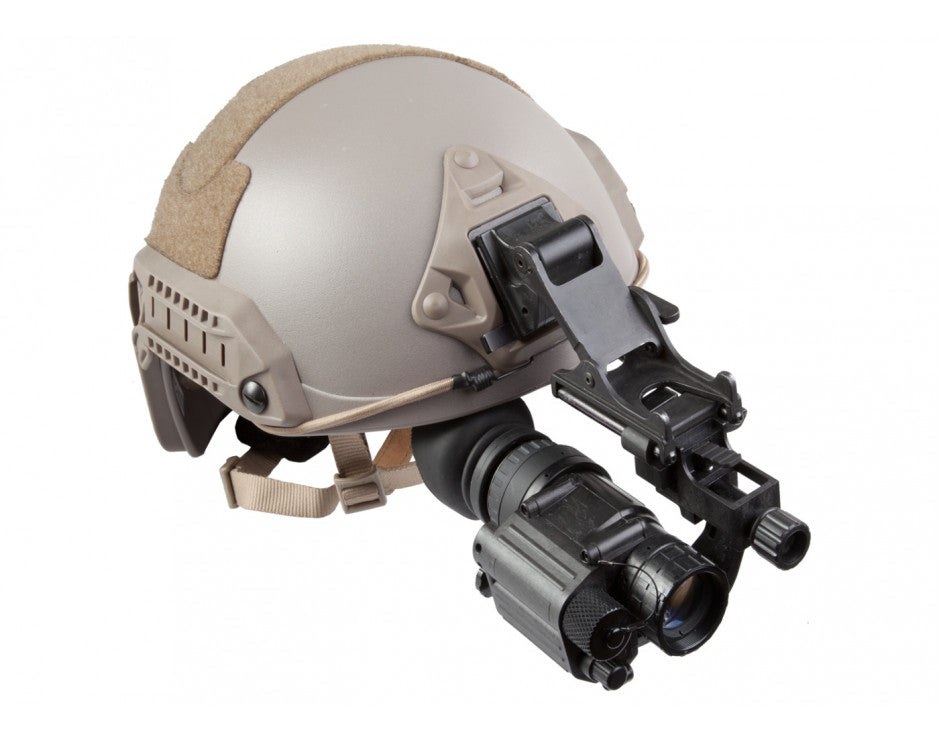

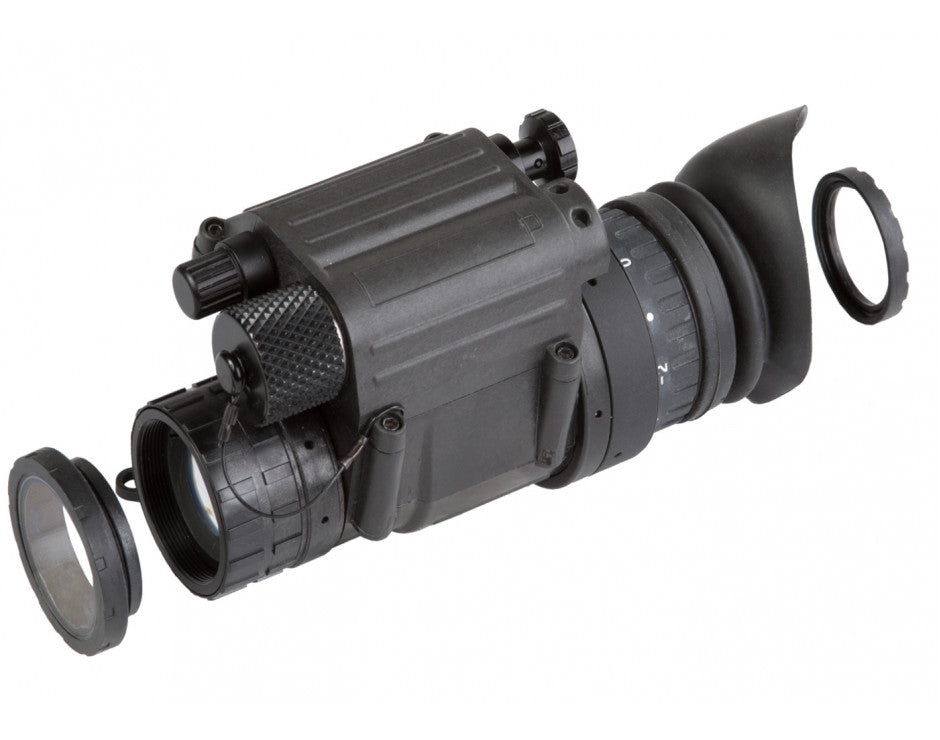

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces / 350 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM's PVS14 includes an array of optional accessories to support virtually any operation.

Specifications

Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution: 64-72 lp/mm
Field of view cleanness by zone: Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.
Magnification: 1x (3x and 5x optional)
Lens System: 27 mm; F/1.2
FOV: 40°
Focus Range: 0.25 m to infinity
Diopter Adjustment: -6 to +2 dpt
Led Indicators: Low battery; IR On; Excessive light conditions
Infrared Illuminator: Yes
Manual Gain Control: Yes
Bright Light Cut-Off: Yes
Automatic Shut-Off System: Yes
Battery Type: One AA Alkaline
Battery Life (Operating): Up to 40 hours at 20°C
Operating Temperature Range: -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range: -51° C to +85° C (-60° F to 185° F)
Weight: 0.35 kg (12.4 oz)
Overall Dimensions: 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
Package Includes:
Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator's Manual, Battery

Characteristics

Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"

Magnification: 1x (3x and 5x optional)

Lens System: 27 mm; F/1.2

FOV: 40°

Package Includes
  • Packing Box
  • System Soft Carrying Case
  • Helmet/ Head Mount Adapter

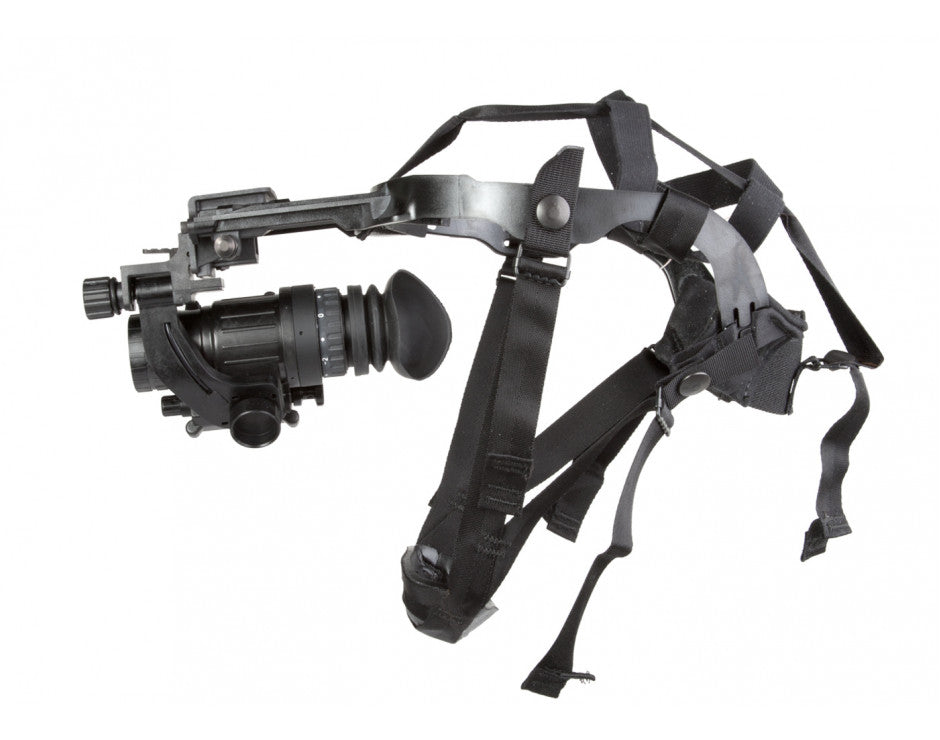

  • Head Mount Assembly
  • Neck Lanyard
  • Operators Manual
  • Batteries
  • Demist Shields
  • Sacrificial Window
  • Lens Tissue
Downloads
Data Sheet
User Manual
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
