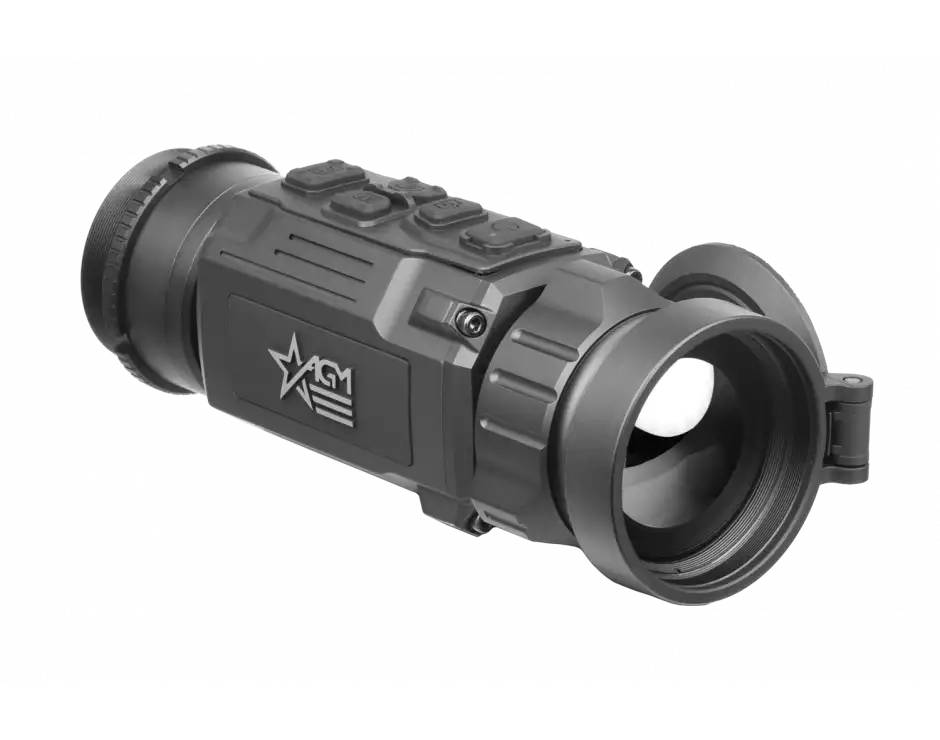

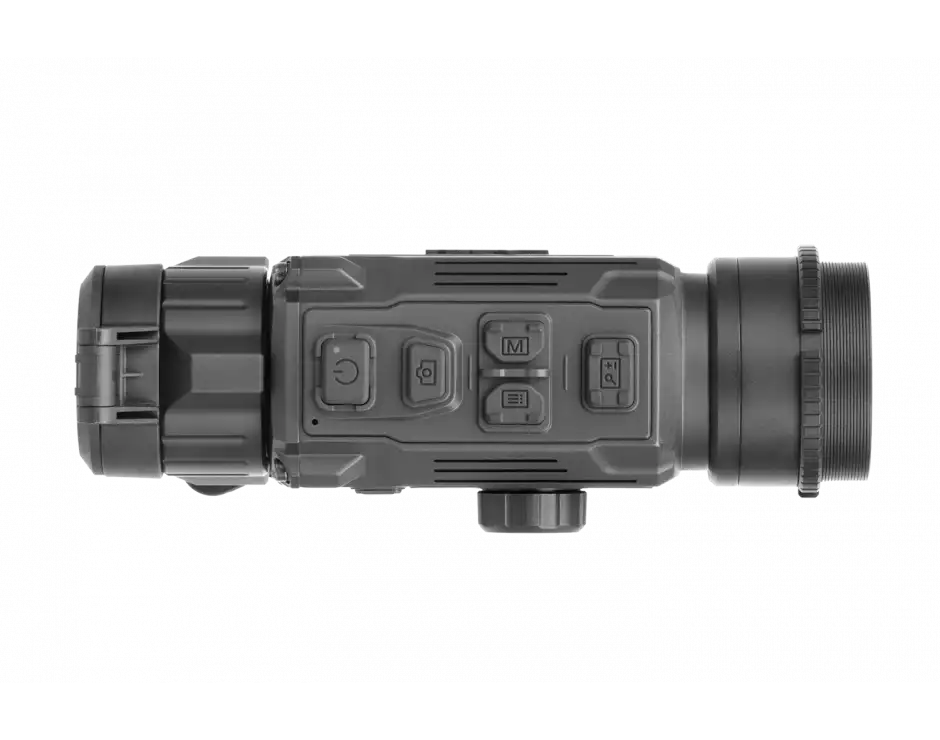

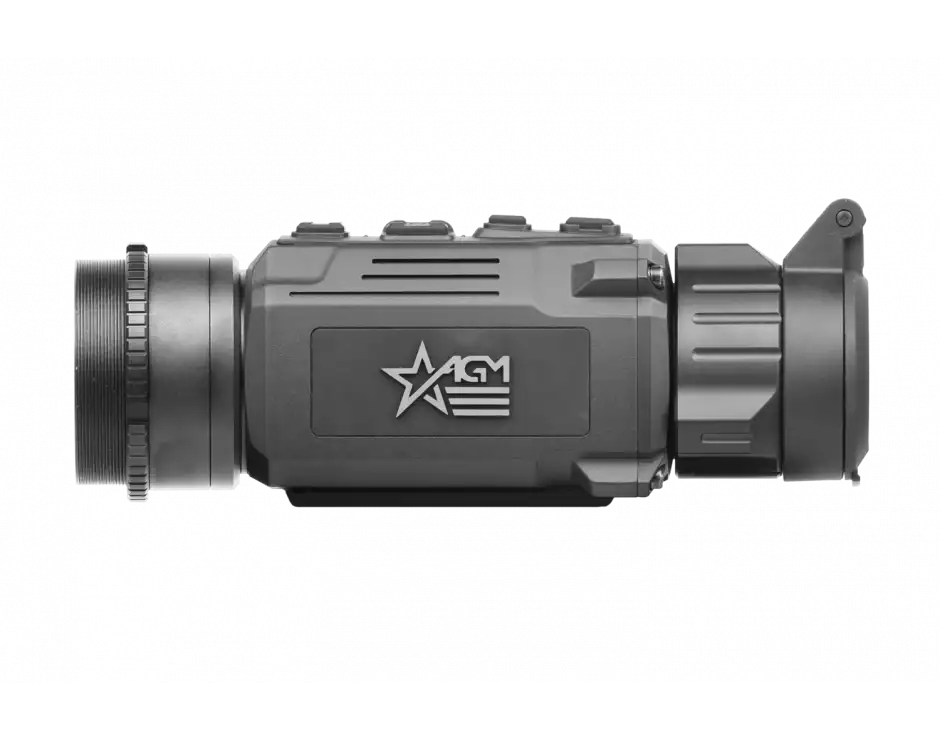

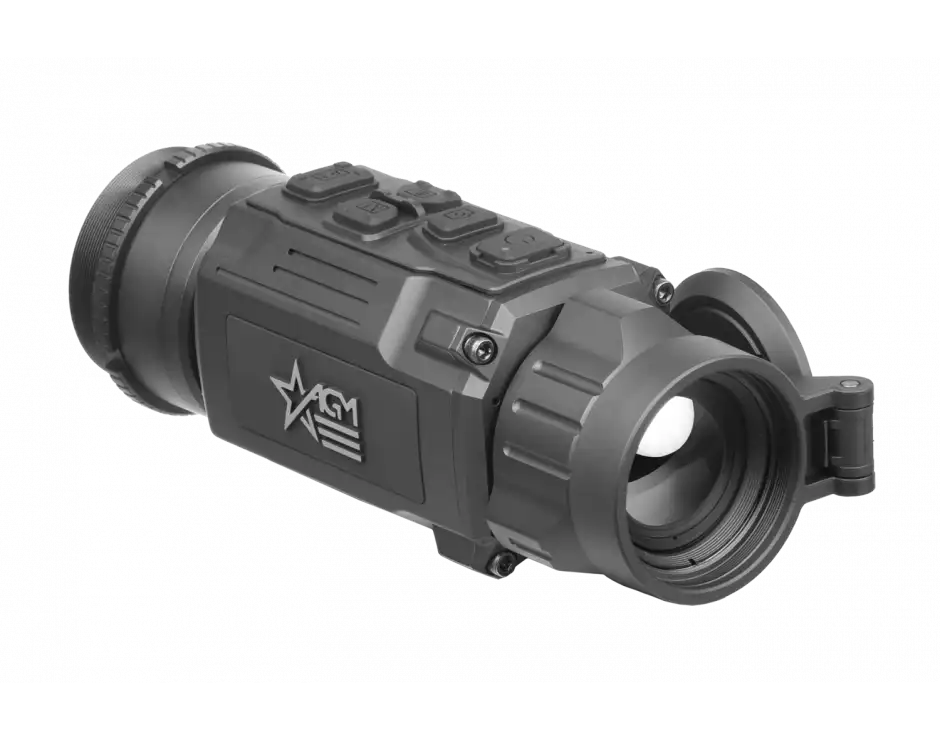

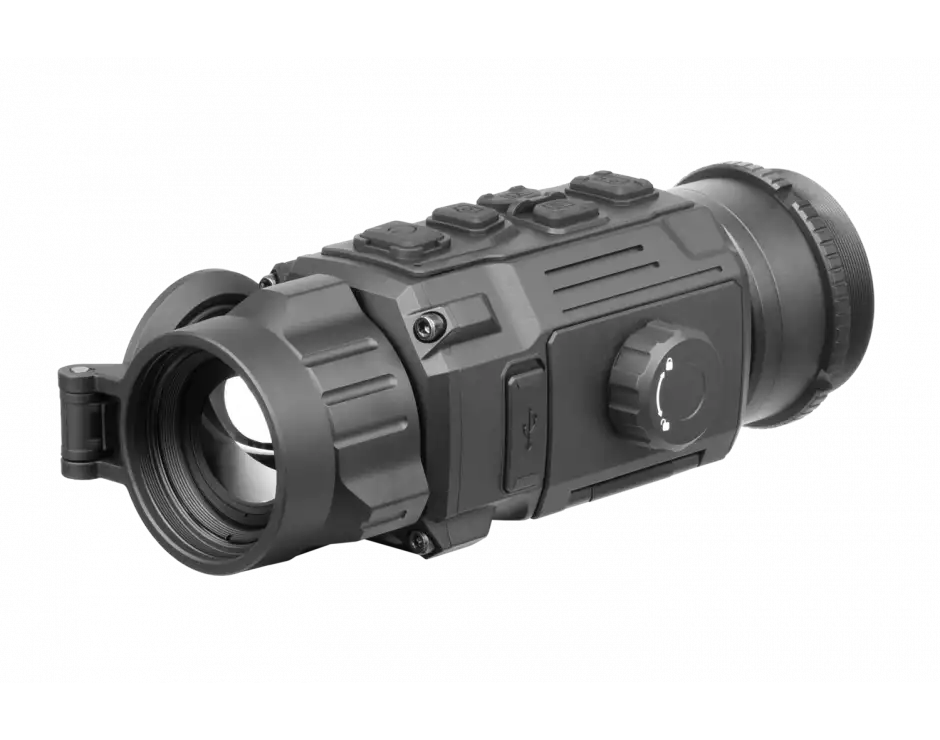

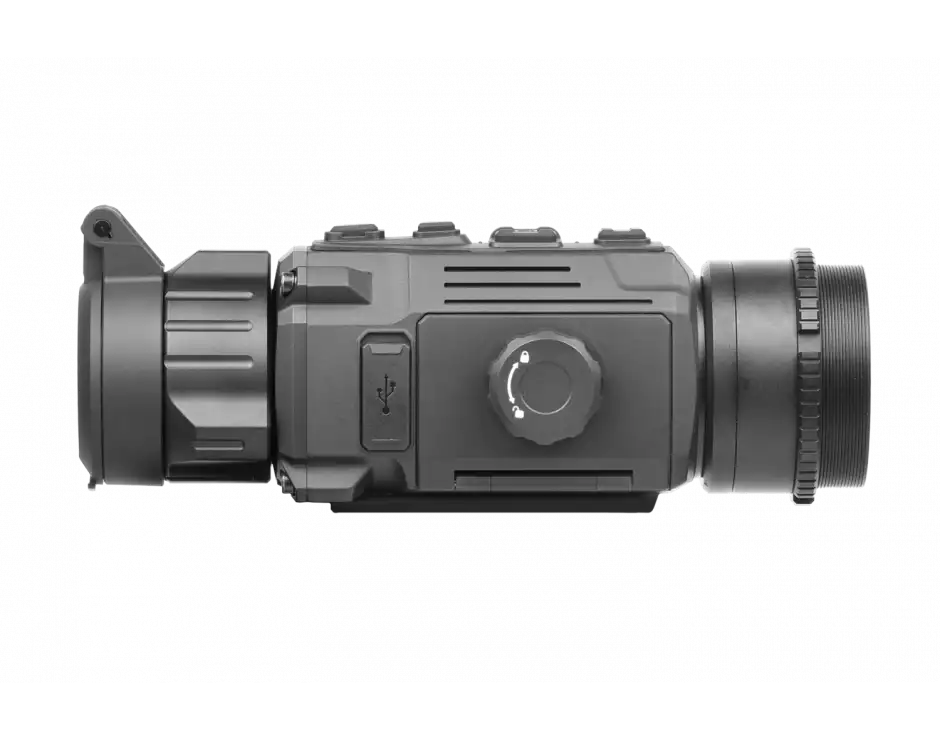

AGM Rattler V2 Clip On Sight

AGM Rattler V2 Clip On Sight

$895.00 USD
$895.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
EXPORT RESTRICTIONS:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

PACKAGE INCLUDES
  • Mount
  • Two Rechargeable Battery
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case

DESCRIPTION AND FEATURES

The NEW AGM Rattler-C V2 35-384 thermal clip-on boasts a industry-leading 12 micron, high-sensitivity sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 1800 yards. The Rattler-C V2 thermal clip-ons provide clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 35-384 provide up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.

The NEW AGM Rattler-C V2 50-640 thermal clip-on boasts a industry-leading 12 micron, high-sensitivity sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons provide clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 50-64 0 provide up to 9 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.



SPECIFICATIONS

Dimensions: 196 × 73 × 68 mm (7.7 × 2.9 × 2.7 in)
Flat Field Correction (FFC): Auto, Manual, External Correction
Palettes: Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter: 22 mm
Distance Measurement: Yes (Stadiametric)
Scene Mode: Cold, Warm
Video Recording: Yes
Audio Recording: Yes
Detector type: 12μm VOx Uncooled Focal Plane Array
Standby Mode: Yes
Refresh rate: 50 Hz
Resolution: 384 × 288
Detection Range (6' object): 2600 m/yd
Lens system: 50 mm; F/1.0
NETD: Less than 20 mK (25°C, F# = 1.0)
Optical magnification: 1×
Field of view (H × X): 8.8° × 7.0°
Hot Track: Yes
Eye relief: 10 mm
Display: 0.39-inch, OLED, 1024×768
Storage: Built-in EMMC (16 GB)
Capture Snapshot: Yes
Battery Type: Replaceable and Rechargeable Li-ion Battery
Wi-Fi: Yes
Battery Life (Operating): 9 h (25°C, with hotspot off)
External power supply: 5 VDC, 2 A, USB Type-C
Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)
Weight: 0.55 kg (1.2 lb)
Protection Level: IP67
Package Includes: Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
Focus Range: 10 m to infinity
