Armasight Jockey Compact Thermal Clip-On

Armasight Jockey Compact Thermal Clip-On

$2,199.00 USD
$2,199.00 USD
Sale Sold out
Shipping calculated at checkout.
Resolution

ITAR PRODUCT
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.

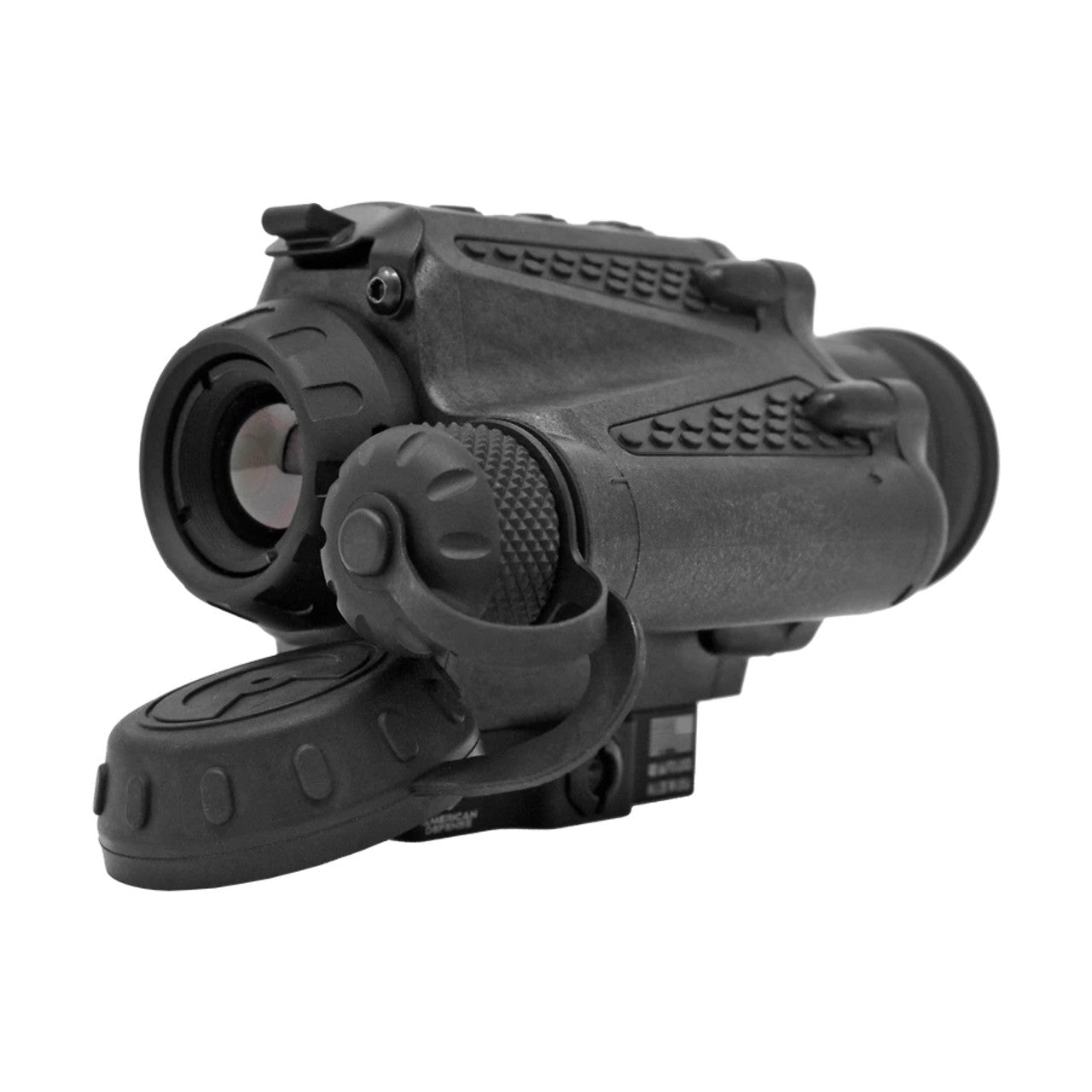

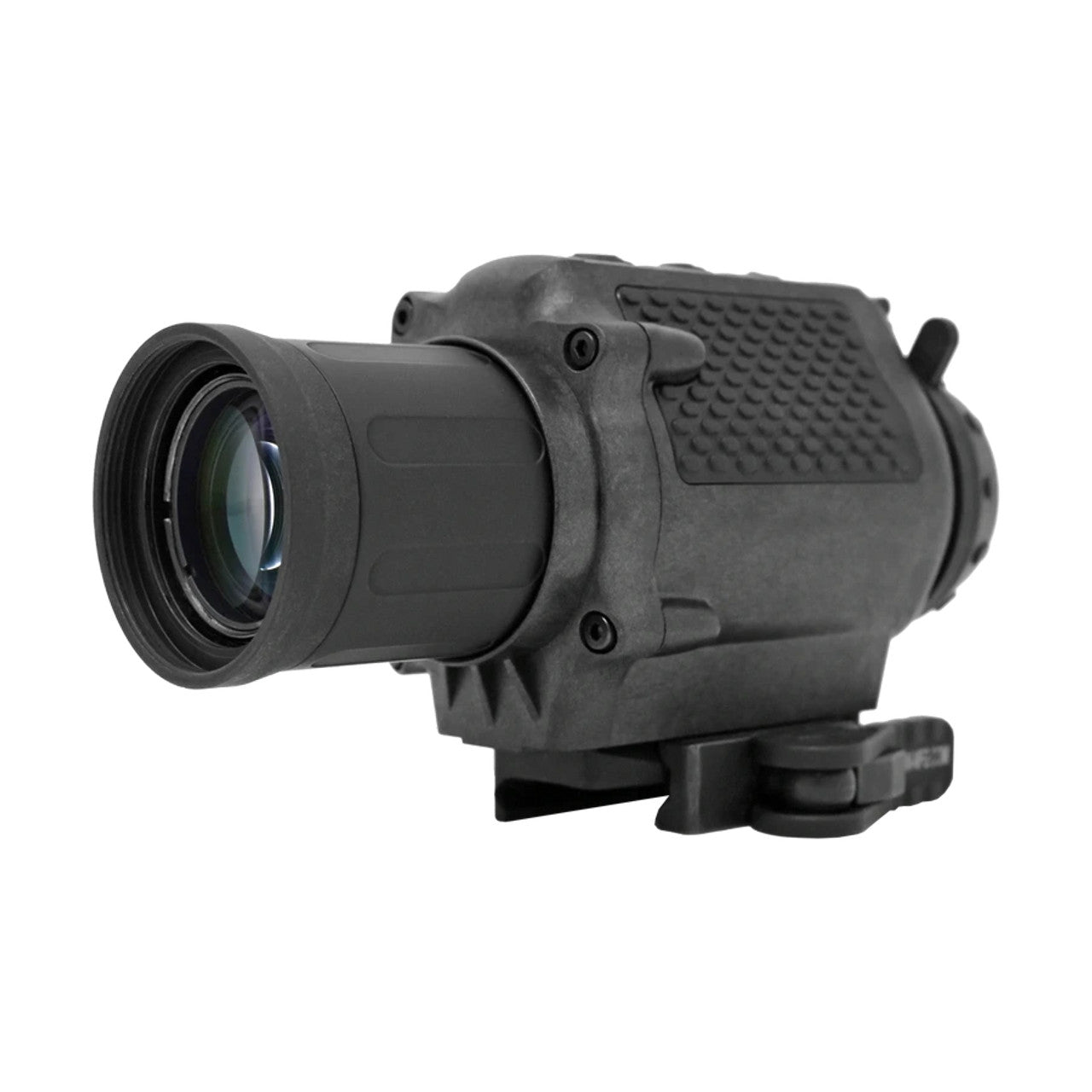

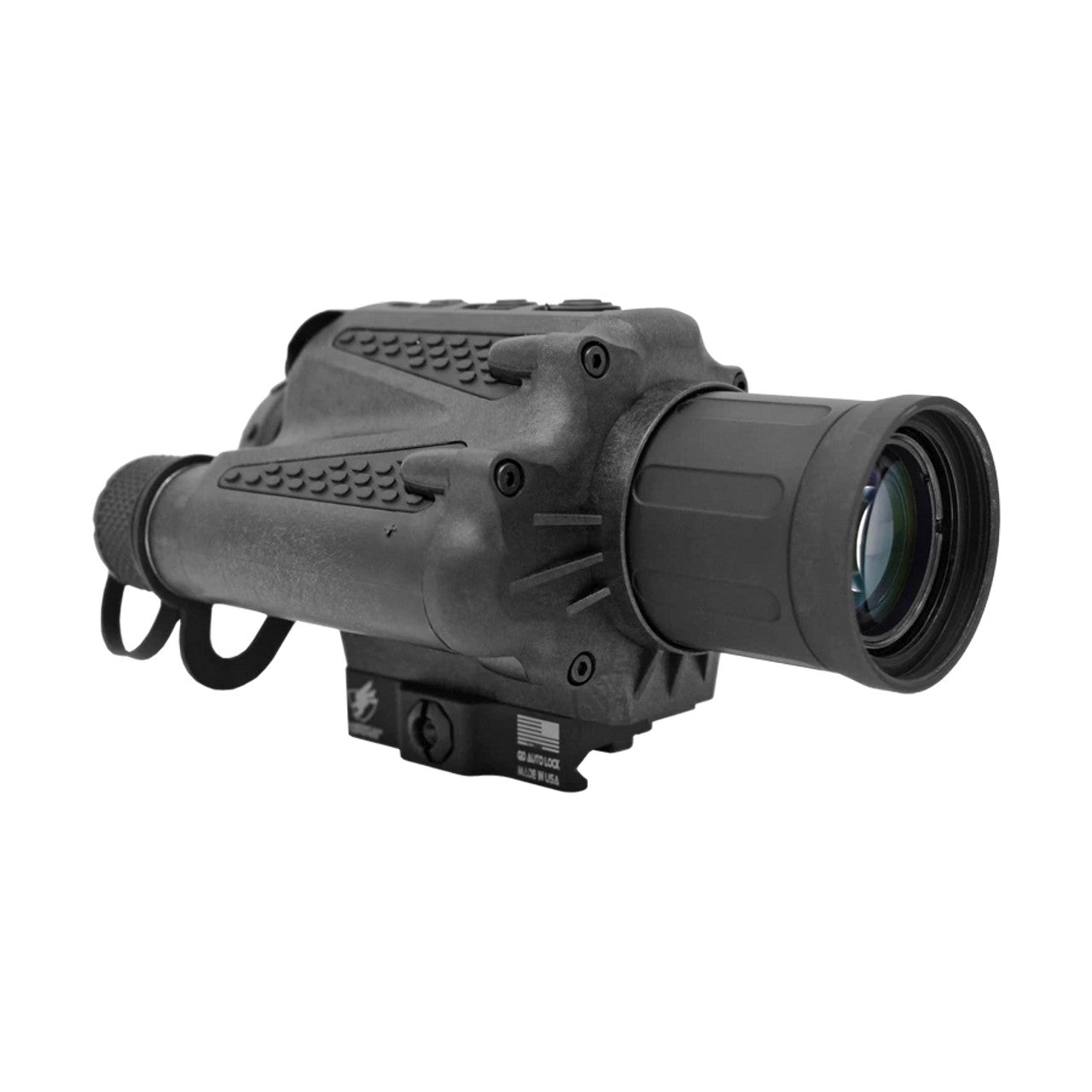

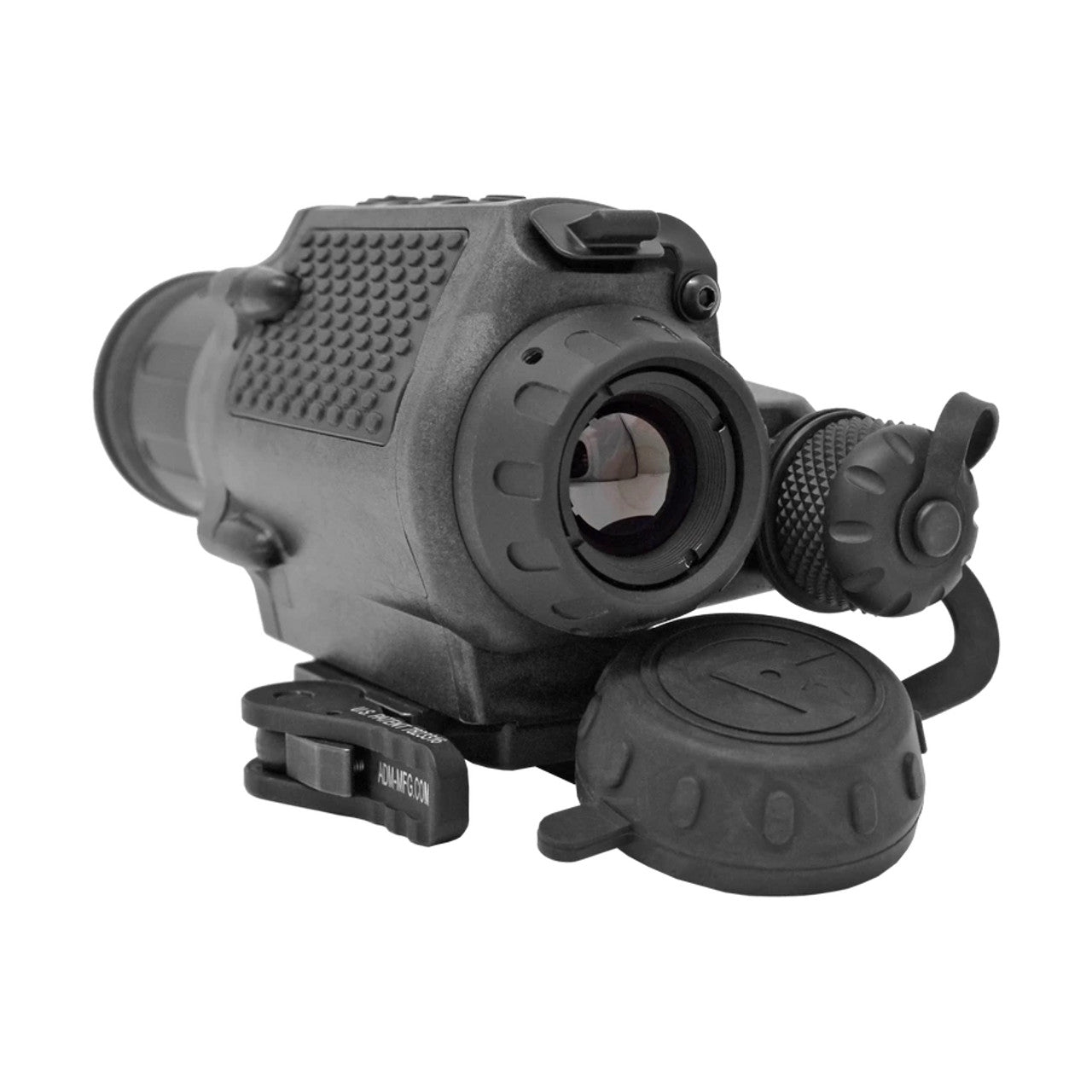

The Jockey 320 easily mounts in front of your existing 1-6x day scope with no additional zeroing required, working flawlessly with most optics under 5x magnification. The Jockey’s compact and lightweight design keeps your favorite .223/.556, rimfire, airgun, or crossbow nimble and responsive. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Jockey 320 offers multiple color palettes, intuitive simple 3 button controls, a quick detach mount, and long battery life.

Features

  • Multiple Color Palettes
  • Intuitive 3-Button Controls
  • Reticle (for Digital Zoom)
  • 4 Hours Runtime at 20° C
  • Image Detail Enhancement
  • Simple Alignment for Digital Zoom Capabilities
  • Quick Detach Mount Included
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Components

Package Includes

  • Jockey 320 Compact Thermal Clip-On
  • Quick Detach Mount
  • USB-C Cable
  • Light Suppressor
  • Thermal Zeroing Target
  • 2 x CR123A Battery
  • USB Cable
  • Lens Cloth
  • Soft Case
  • Product Manual

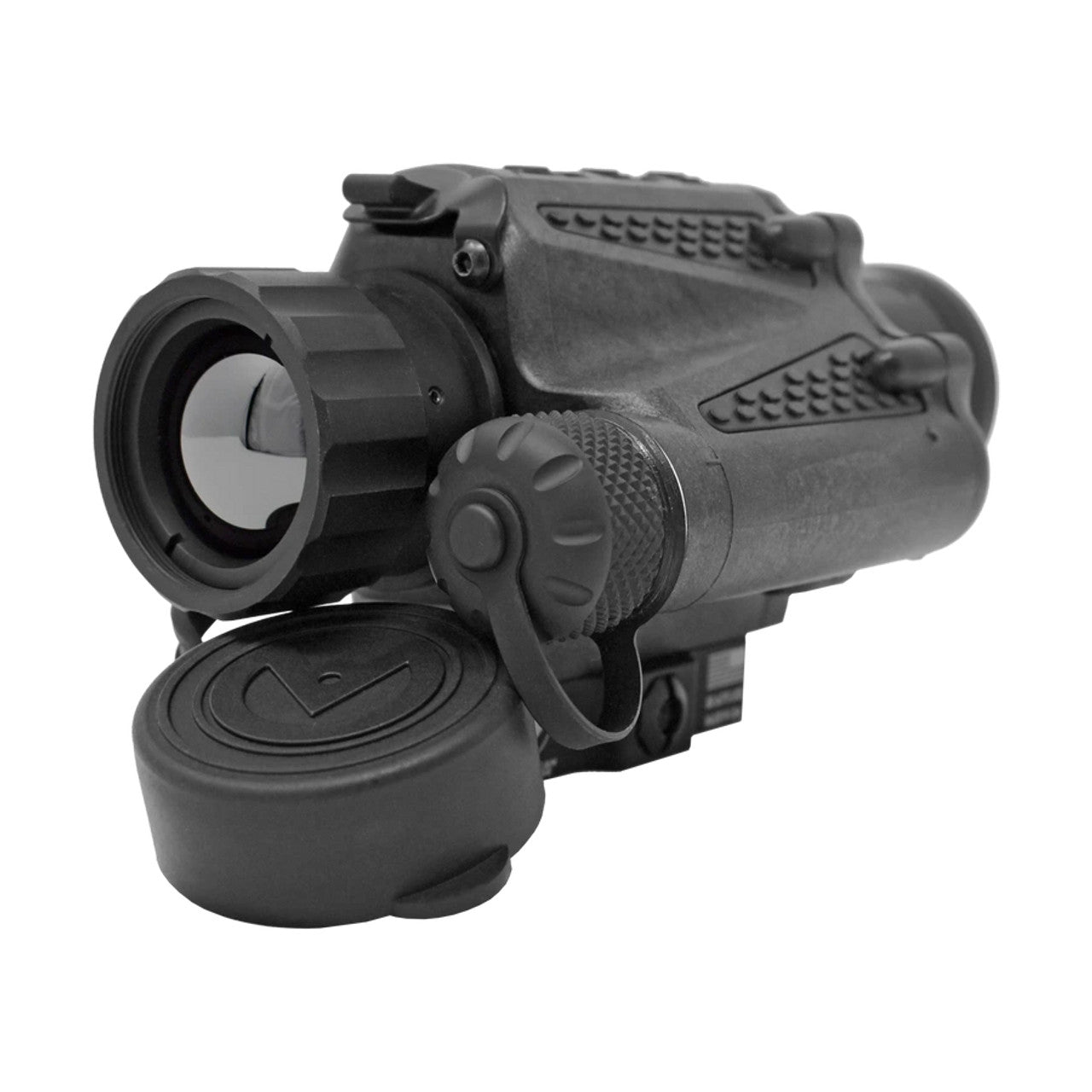

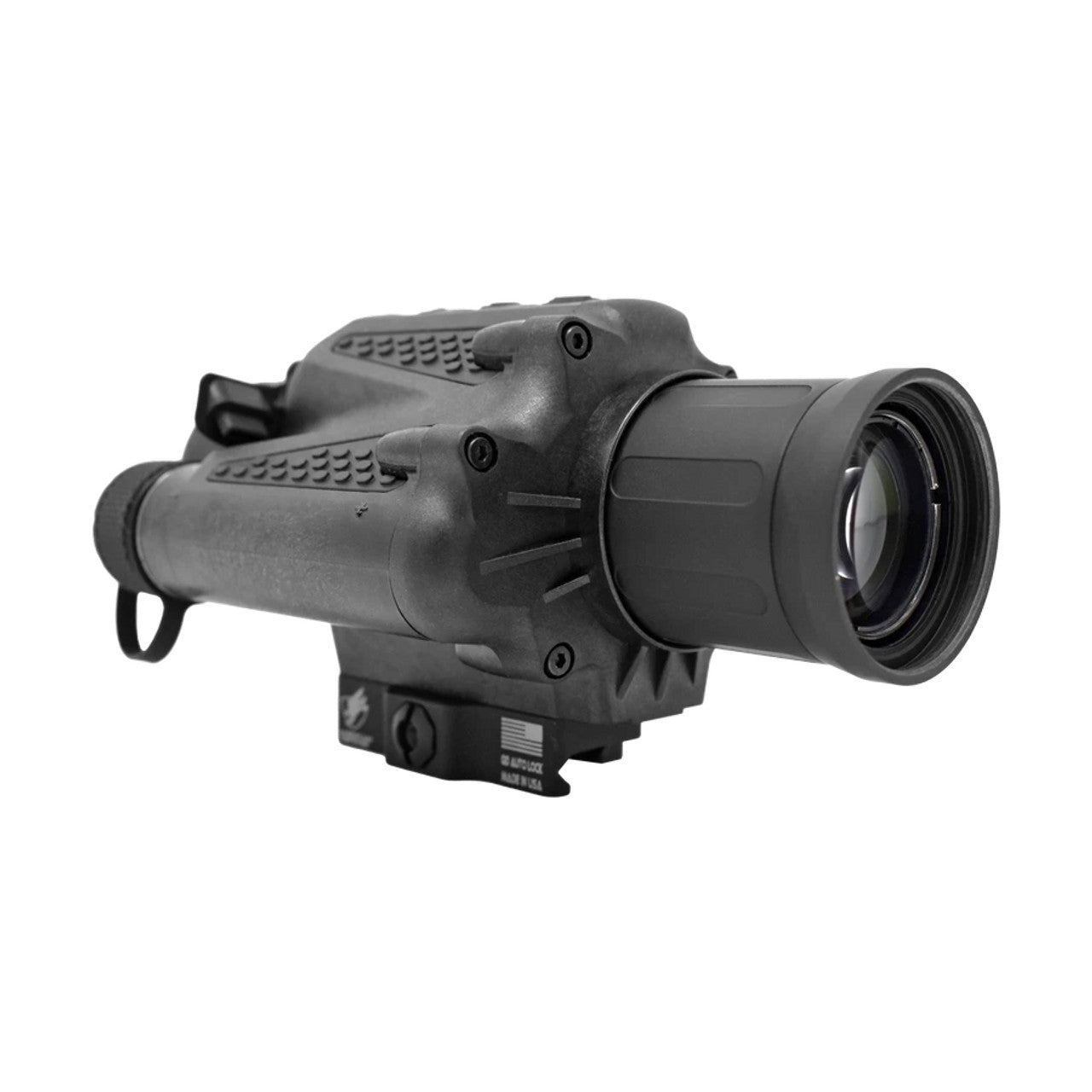

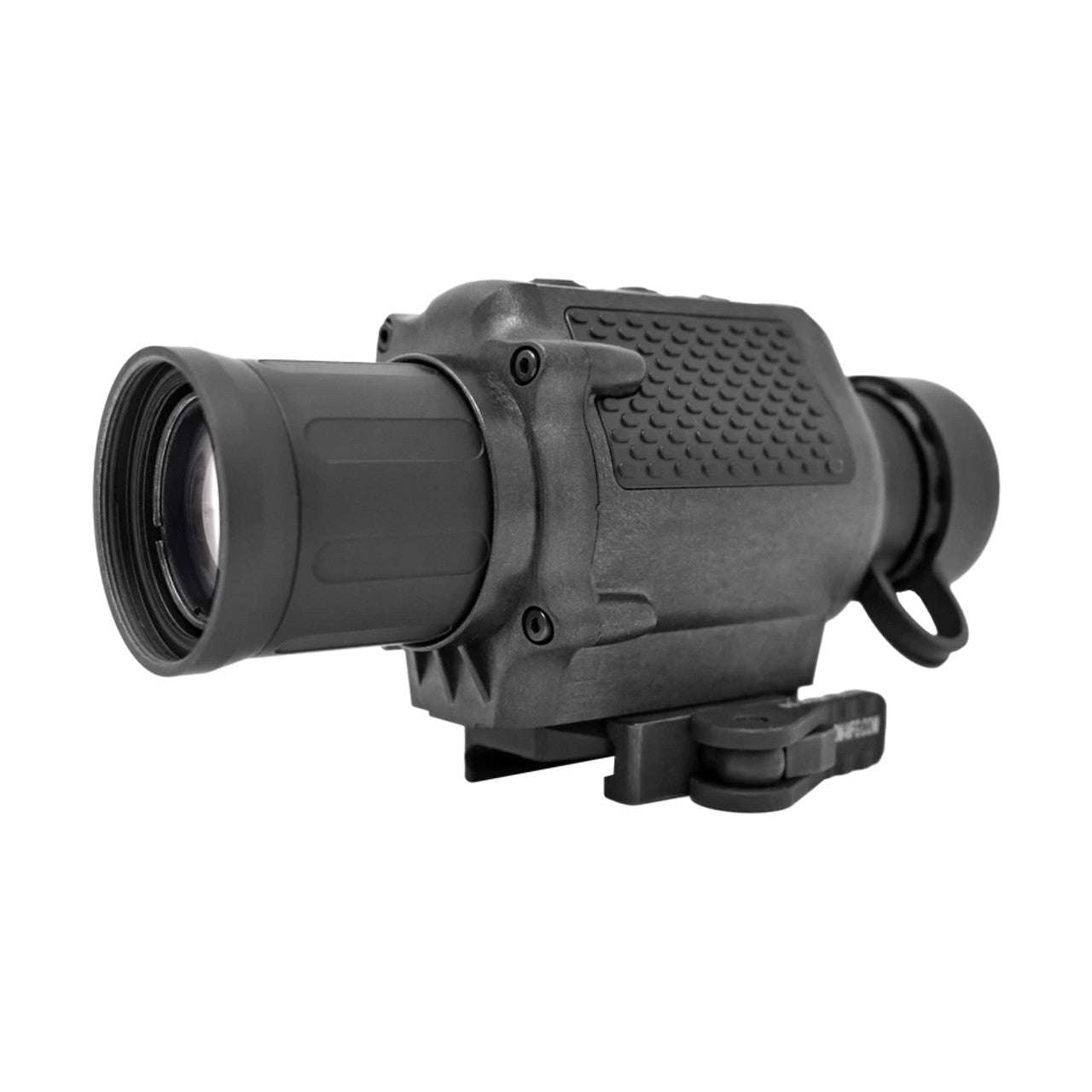

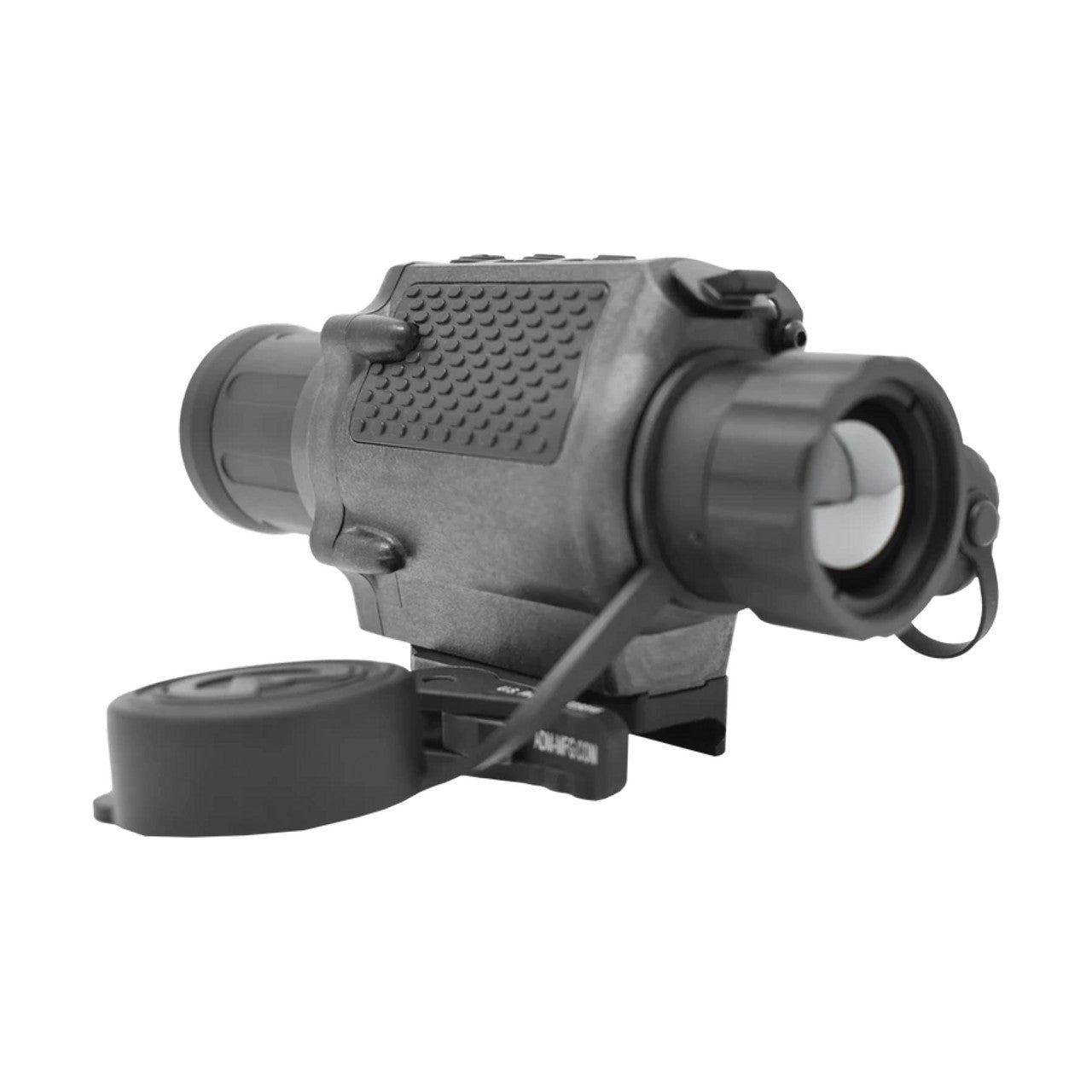

The Jockey 640 easily mounts in front of your existing 1-6x day scope with no additional zeroing required, working flawlessly with most optics under 5x magnification. The Jockey’s compact and lightweight design keeps your favorite .223/.556, rimfire, airgun, or crossbow nimble and responsive.

This unit boasts the high-performance ArmaCORE™ 640 thermal core, fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Jockey 640 offers multiple color palettes, intuitive simple 3 button controls, a quick detach mount, and long battery life.

Features

  • Multiple Color Palettes
  • Intuitive 3-Button Controls
  • Reticle (for Digital Zoom)
  • 4 Hours Runtime at 20° C
  • Image Detail Enhancement
  • Simple Alignment for Digital Zoom Capabilities
  • Quick Detach Mount Included
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Components

Package Includes

  • Jockey 640 Compact Thermal Clip-On
  • Quick Detach Mount
  • USB-C Cable
  • Light Suppressor
  • Thermal Zeroing Target
  • 2 × CR123A Battery
  • USB Cable
  • Lens Cloth
  • Soft Case
  • Product Manual
Detector Type: ArmaCORE™ 640 x 480 12um Thermal Core
Refresh Rate: 60 Hz
Thermal Sensitivity: NETD < 40mK
Detection Range: 932m on a Human Sized Target
Recognition Range: 233m on a Human Sized Target
Identification Range: 146m on a Human Sized Target
Exit Pupil: 25mm
Field of View: 17.6° x 13.2°
Optical Magnification: 1x unity (recommended for daytime optics with 1x – 6x magnification)
Digital Zoom: 1x - 4x
Display: XGA (1024 x 768) OLED
Wireless: None
Graphics: Active On-Screen Graphics and Iconology
Recoil Rating: 5.56cal
Lens System: F/1.00; 25mm manual focus
Rear Collimator: f38mm
Diopter Adjustment: N/A
Power Supply: 2 x CR123A (3V) or 1 x 16650 (3V)
Battery Life: 4 hours at 20° C
Memory: 4 Hours of Video
Image Processing: Digital Enhancement
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Dimensions: 174 x 68 x 66mm / 6.8 x 2.7 x 2.4in
Weight: 384g / 0.85lbs
Warranty: 3 years w/ registration
Color: Black
