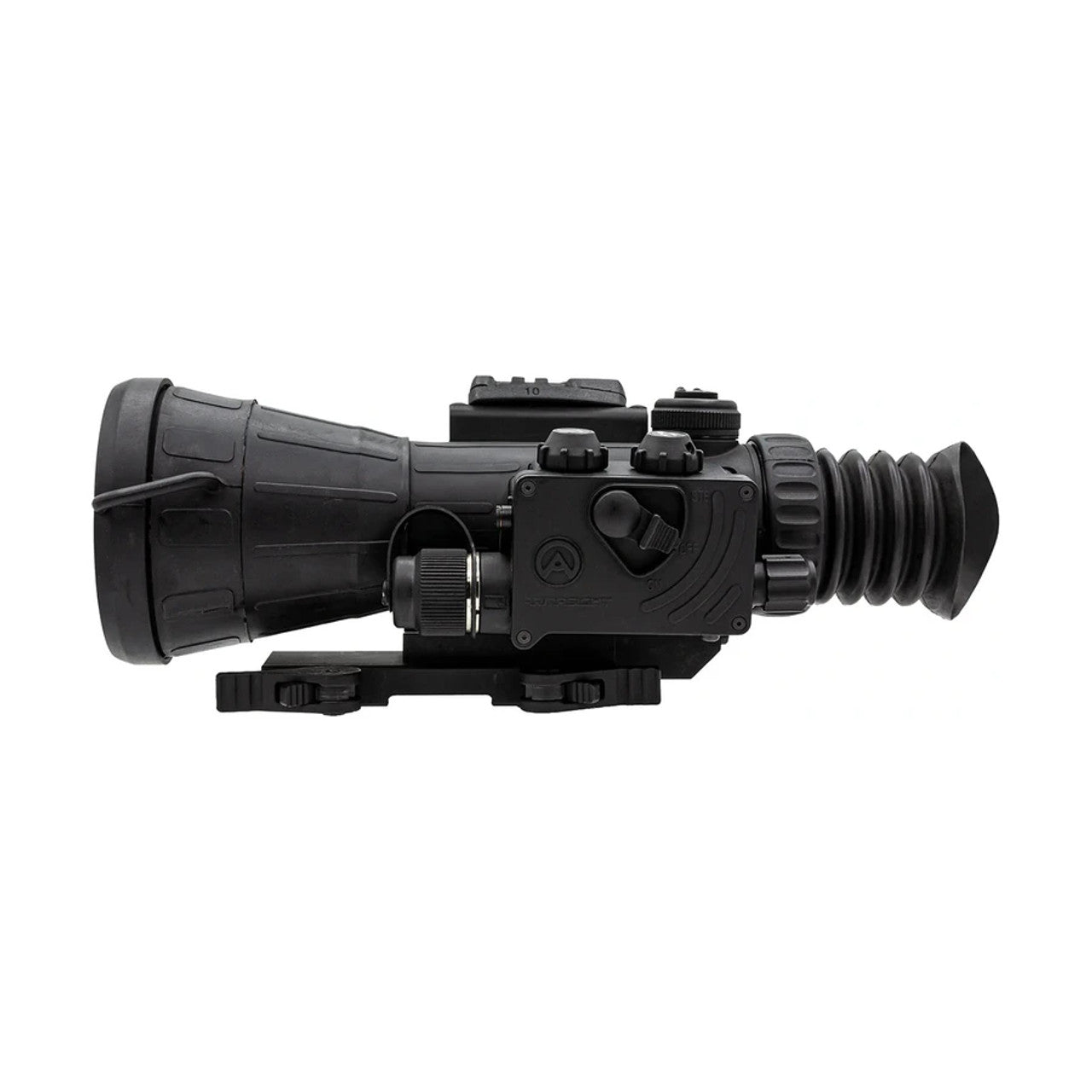

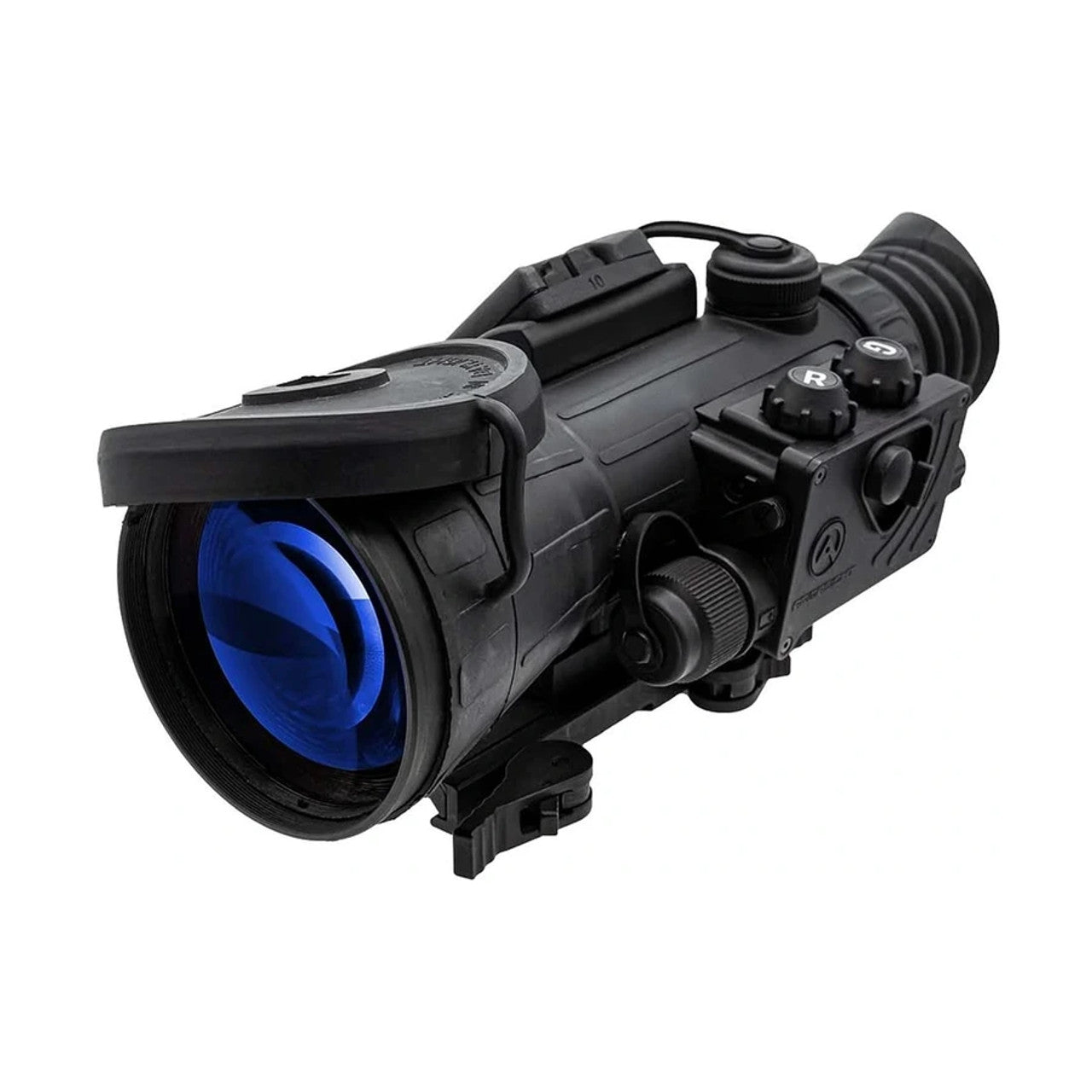

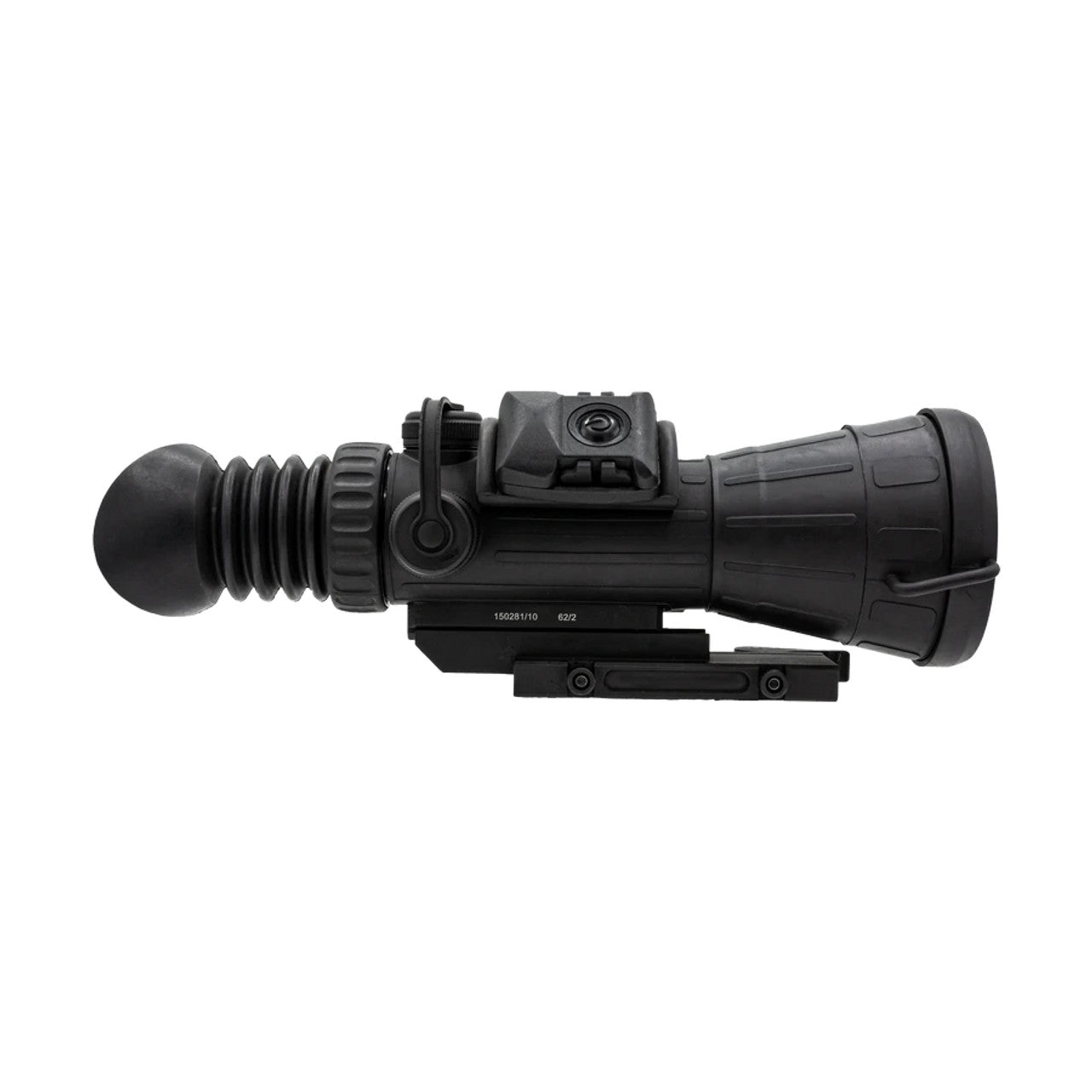

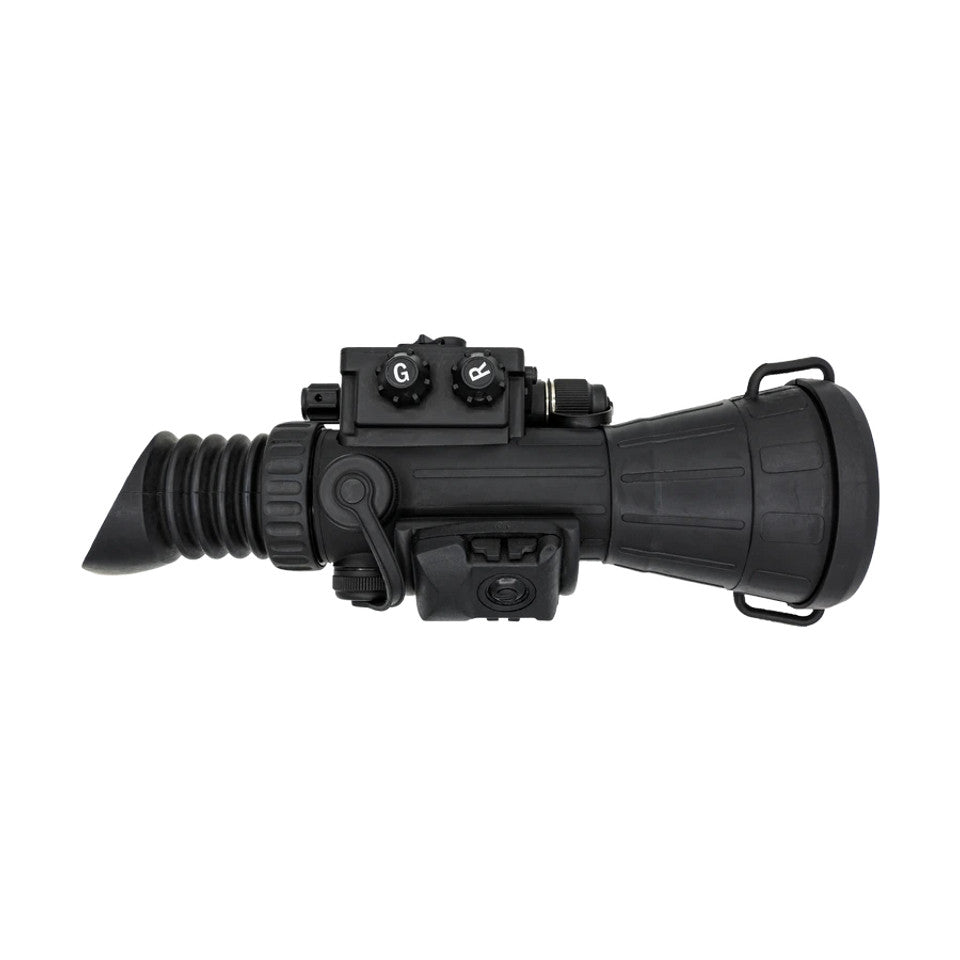

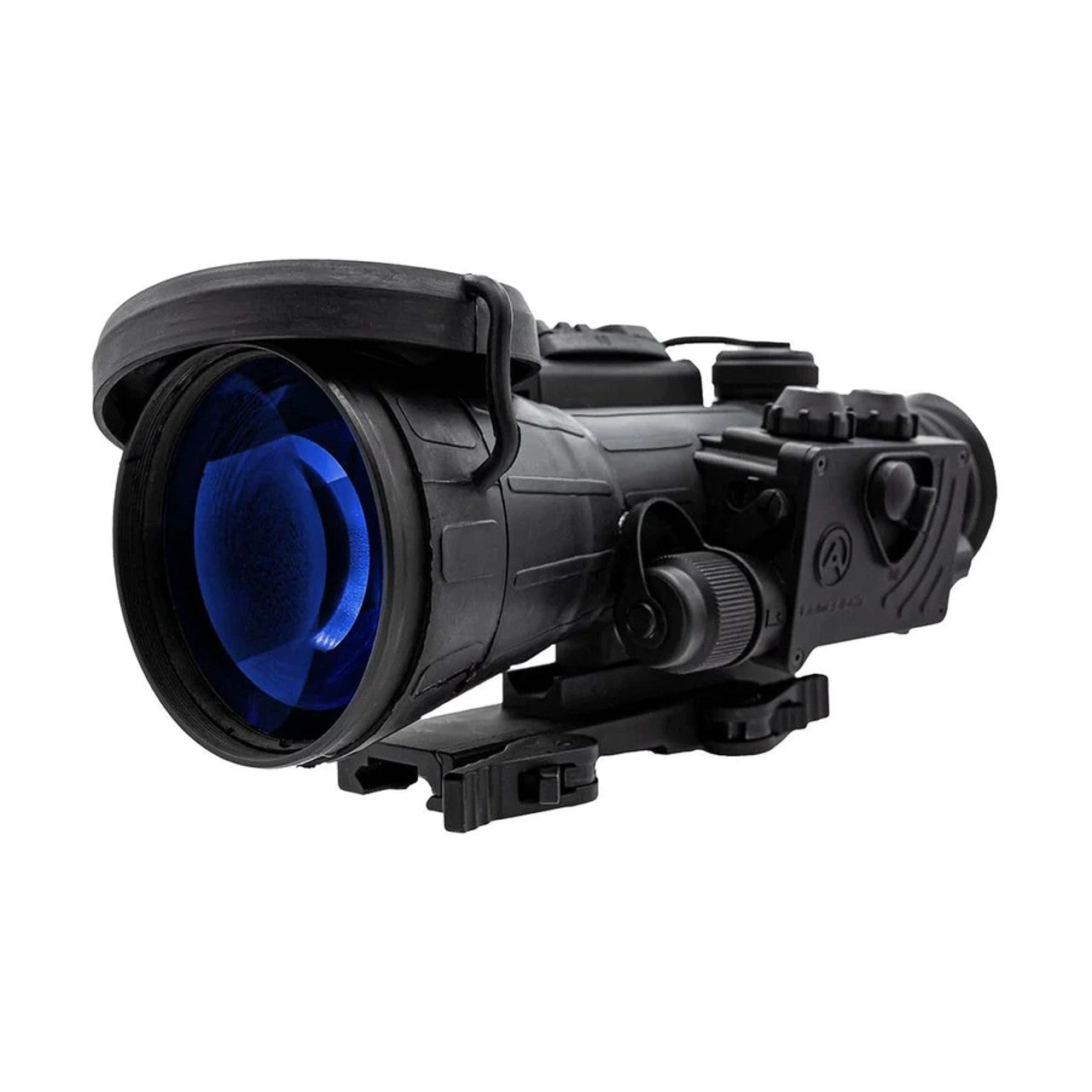

Armasight Vulcan Gen 3 Bravo 4.5x Night Vision Riflescope

Armasight Vulcan Gen 3 Bravo 4.5x Night Vision Riflescope

Regular price $5,699.00 USD
Regular price Sale price $5,699.00 USD
Sale Sold out
Shipping calculated at checkout.

By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.

The Armasight Gen 3 Bravo Vulcan 4.5x Compact Professional Night Vision Rifle Scope is a stand-alone, dedicated night vision riflescope that does not require an existing riflescope. The Gen 3 Bravo Vulcan comes with your choice of green or ghost white phosphor image intensifier tubes.

The Armasight Vulcan 4.5x includes a wireless firearm-mounted remote control – a single push of a button wakes the Armasight Vulcan 4x from standby mode, extending battery life, maintaining light discipline, and reducing movement by the shooter.

The Armasight Vulcan 4.5x can use either a single AA battery, or a single CR123A battery, increasing your options for standardizing your batteries with other gear that you own. The Armasight Vulcan 4.5x features an auto shutoff technology that will power down the unit if it receives no input for 60 minutes as a safeguard in case the unit is left on after use. The unit also protects itself by shutting down if exposed to excessive ambient light and returns to an active state once removed from the light source, preventing damage to the Image Intensifier Tube (IIT). For optimal contrast, the illuminated reticle is independently adjustable for brightness.

This shockproof and waterproof riflescope incorporates multicoated all-glass lenses for superior IR light transmission and is purged and filled with dry nitrogen to prevent fogging. Complete with tactical rails for attaching IR lasers or illuminators, the Armasight Vulcan 4.5x night vision riflescope doesn’t skimp on value or advanced features.

Package Contents

  • Vulcan 4.5x Night Vision Riflescope
  • Lens Cap
  • Eyecup
  • Watchman or IR850-XLR Long Range IR Illuminator
  • Wireless Remote Control
  • Quick Detach Weaver Mount
  • Battery Key
  • Product Manual
  • Lens Cloth
  • Soft Carrying Case
  • CR123A battery
  • 3 year limited warranty with registration

More about Armasight Generation 3 Bravo Image Intensifier Tubes

The best value in Generation 3 night vision, with all the technology that produces a significantly improved picture and performance as compared to Gen 2 or digital night vision, but with a few minor imperfections. While all image intensifier tubes may have minor spots or blemishes, our Bravo tube will have more blemishes than our Pinnacle or Pinnacle Elite intensifier tubes. As a result, our systems using Bravo tubes are priced lower and therefore offer significant value for entry-level users. If you are just starting out with night vision and budget is a concern, Armasight systems with Bravo IITs are perfect for you. Bravo tubes may have up to eleven spots or blemishes.

Image Intensifier Tube Generation: Gen 3 Thin-Filmed Manual Gain Control
Resolution: 64-72 lp/mm
Zone 1 Spots Maximum Allowed: 0 - 0.009" to 0.012" / 0 - 0.006" to 0.009" / 1 - 0.003" to 0.006"
Zone 2 Spots Maximum Allowed: 1 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 2 - 0.003" to 0.006"
Zone 3 Spots Maximum Allowed: 1 - 0.009" to 0.012" / 2 - 0.006" to 0.009" / 3 - 0.003" to 0.006"
Manual Gain Control: Yes
Brightness Control: Automatic and Manual
Bright Light Cut-off: Yes
Infrared Illuminator: Yes (separate, included)
Remote Control: Yes
Magnification:  4.5x
Lens System: F1.54; 108mm
Objective Lens: 94mm
Field of View: 9°
Focus Range: 15m to infinity
Eye Relief: 45 mm
Exit Pupil: 7 mm
Diopter Adjustment: -4 to +4 dpt
Reticle Pattern: Crosshair
Reticle System: Red on White
Windage and Elevation Adjustments: +/- 45MOA
Power Supply: 1x CR123A (3V) or 1x AA (1.5V) Battery
Battery Life: 24 Hours (1.5V) / 45 Hours (3V) at 20° C
Low Battery Indicator: Yes (in FOV)
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Storage Temperature: -51° C to +85° C (-60° F to + 185° F)
Dimensions: 297 x 97 x 71mm / 11.7 x 3.8 x 2.8in
Weight: 1.1kg / 2.4lbs
Warranty: 3 years w/ registration
Color: Black
