BTECH DA-7X2 Digital & Analog Dual Band Two-Way Radio

BTECH DA-7X2 Digital & Analog Dual Band Two-Way Radio

$279.99 USD
$279.99 USD
Sale Sold out
Shipping calculated at checkout.

***These will be in stock on Friday 2/20 and will ship the following business day. Thanks in advance. -NCS ***

BTECH DA-7X2 Dual Band DMR Digital + Analog Handheld Radio, True Dual Receive VHF/UHF, 7W Peak, AM Airband (108–136) + FM Broadcast RX, Cross-Band Repeater, Recording, Advanced Audio

  • TRUE DUAL RECEIVE (VHF+UHF SIMULTANEOUS) – Monitor two channels at once with a Main/Sub dual-display workflow so you don’t miss priority traffic in busy repeater areas, events, and field ops.
  • TRUE VFO + MEMORY CHANNEL OPERATION – Full VFO and channel mode flexibility with on-radio editing for quick changes in the field; use CPS for full system configuration and database management.
  • DMR + ANALOG (ETSI TIER I/II, TRUE 2-SLOT) – Digital DMR and analog FM in one radio with two timeslots, all color codes, and automatic analog/digital detection for mixed-system environments.
  • FLEET-SCALE CAPACITY + MULTI-ID – 4,000 channels, 250 zones (up to 160/zone), 10,000 talkgroups, 500,000 contacts, and multiple DMR ID profiles for work/ham roles or shared-family use.
  • BLUETOOTH BUILT-IN + WIRELESS PTT READY – Integrated Bluetooth with support for the included Bluetooth PTT switch, enabling convenient PTT control and cable-free setups where preferred.
  • GPS/GNSS + APRS (FM + DMR) + BEACONS – Positioning and GPS info send with GNSS modes (GPS/BDS/GLONASS), Analog APRS receive/log/filter + Digital APRS reporting, plus GPS Beacon / Fixed Beacon and interval options for tracking and coordination.
  • ROAMING + SATELLITE TOOLS – Roaming support (list-based and GPS-assisted where configured) plus satellite pass prediction, satellite list management, and tracking support via CPS for amateur satellite operation.
  • ADVANCED AUDIO + RECORDING – TX/RX noise reduction, RX AGC + Mic AGC, and auto volume leveling for clarity in vehicles/crowds; record analog + digital traffic (up to ~14 hrs) and export to PC for logs and training.
  • FULL SIGNALING + SAFETY + SECURITY (WHERE LEGAL) – Advanced TX/RX audio processing (NR + AGC + leveling) plus analog+digital recording (~14 hrs) with PC export; full signaling stack CTCSS/DCS, DTMF, 2-Tone/5-Tone, MDC1200, emergency/man-down/work-alone, AES-256/ARC4 (digital) + scrambler/compander (analog) where legal

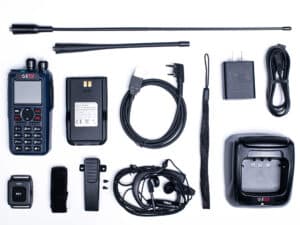

  • WHAT’S IN THE BOX – DA-7X2 radio, Bluetooth PTT switch, 3100 mAh high-capacity battery, (2) antennas (6” dual-band + high-gain long antenna), belt clip with screws, USB programming cable, desktop charger base, AC wall adapter with power cord, earpiece kit, wrist strap, and user’s manual.

Digital + Analog. True Dual Receive. True VFO. Built to Evolve.

The DA-7X2 is the next step after the DMR-6X2/DMR-6X2 PRO era—upgraded with true dual-receiver hardware so you can monitor VHF and UHF simultaneously, plus VFO + memory channel operation and more on-radio adjustability for real-world ham and field use. Backed by a BTECH firmware roadmap designed for long-term fixes, refinements, and future digital expansion (planned where supported/approved).

One radio for mixed systems.

Digital + Analog Done Right

Run digital or analog confidently, ideal for teams transitioning systems or operating across multiple partner groups. The DA-7X2 supports a deep analog signaling toolbox (CTCSS/DCS, DTMF, 2-Tone/5-Tone, MDC1200) and high-capacity digital organization for large fleets and talkgroup-heavy environments.

FLEET-SCALE CAPACITY (DMR + ANALOG)
4,000 channels • 250 zones • 10,000 talkgroups • 500,000 contacts
Built for talkgroup-heavy environments, large contact databases, and mixed analog/digital systems.





Not a generic clone—BTECH firmware forks

Built to Evolve with BTECH Firmware

Built on a proven platform, the DA-7X2 adds BTECH-exclusive firmware forks for ongoing bug fixes, stability tuning, and feature upgrades driven by real customer feedback. Upgraded dual-receiver hardware is platform-ready for future digital modes (planned: where supported/approved, e.g., NXDN) delivered via firmware updates. No subscriptions or paid support plans, better docs and practical improvements over the life of the product, so it keeps getting better after launch.


Stay informed when conditions change

NOAA Weather Alerts — Real-Time Awareness in the Field

When you’re camping, traveling, working outdoors, or supporting events, weather can change fast. The DA-7X2 includes NOAA Weather Alert monitoring so you can listen to local weather channels and receive alert notifications—helping you make faster decisions when conditions turn.

  • Weather Alert Monitoring: Listen and monitor NOAA weather broadcasts (US) for warning activity.
  • WX Channel Selection: Quickly choose the strongest local weather channel for your area.




BTECH DA-7X2 — Spec Chart

Model / Platform BTECH DA-7X2 Digital + Analog (multi-protocol ready)
Bands (TX US) VHF 136–174 MHz / UHF 400–480 MHz
True Dual Receive Simultaneous VHF+UHF monitoring with Main/Sub workflow (Main CH Switch + Sub CH Hide)
RF Output VHF 7/5/2.5/0.2W; UHF 6/5/2.5/0.2W
Channel / Zone Capacity 4,000 channels; 250 zones (up to 160 ch/zone)
Power System 7.4V DC (±20%); battery options 2100 mAh / 3100 mAh (QB-44L / QB-44HL)
Size / Weight 129×61×39 mm; 282 g (with battery + antenna)
Receiver Sensitivity (Analog) ≤0.25 μV (wide) / ≤0.35 μV (narrow) @ 12dB SINAD
Receiver Sensitivity (Digital) 0.3 μV / -117.4 dBm (BER 5%); 0.7 μV / -110 dBm (BER 1%)
Audio Output 1000 mW / 16Ω
Recording Analog + Digital call recording, up to ~14 hrs, download via CPS (Tool → Radio Recording)
GPS / GNSS GPS positioning + GPS info send; GNSS modes GPS / BDS / GLONASS; GPS Roaming (geofence auto zone switching via CPS)
APRS Suite Analog APRS receive/log/filter + on-radio display (callsign/coords/direction/distance); DMR APRS (report channel/slot/ID); GPS Beacon / Fixed Beacon with interval transmit
Tools + RX + Wireless Satellite prediction + satellite list via CPS; Cross-band repeater (DMR<->DMR / Analog<->DMR / DMR<->Analog / Analog<->Analog VHF<->UHF); NOAA WX Alert (WX1–WX10); FM Broadcast + AM Airband RX; Bluetooth enable/disable + BT PTT accessory
Safety / Security / Signaling Emergency Alarm, Man-Down (GPS auto-send option), Work-Alone timer; 32 digital encryptions (type select); CTCSS/DCS + DTMF + 2-Tone/5-Tone + MDC1200
Channel Spacing / Steps 25 / 12.5 / 6.25 kHz; tuning step 5 / 6.25 kHz
