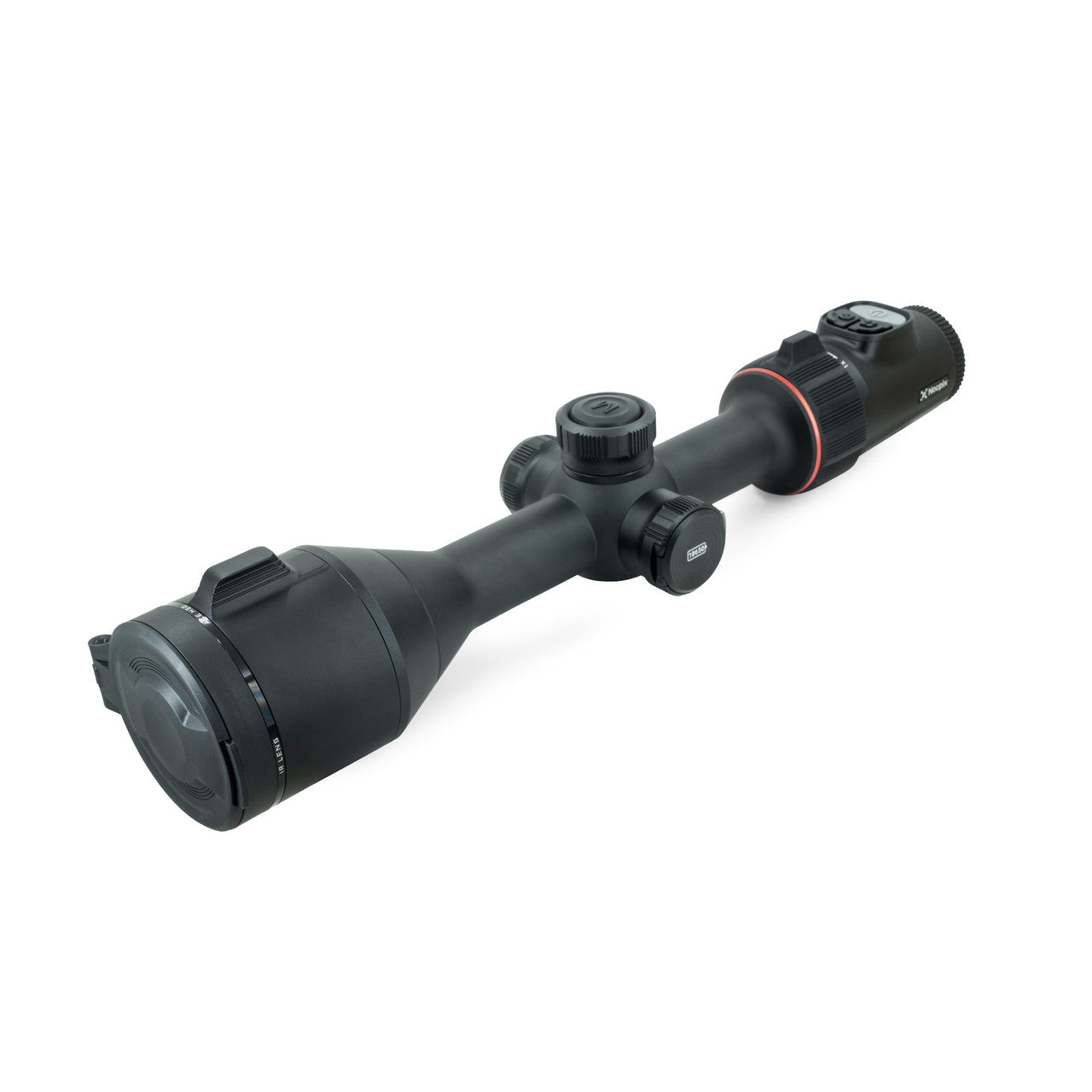

NOCPIX ACE H50 Thermal Weapon Sight

NOCPIX ACE H50 Thermal Weapon Sight

Regular price $4,299.00 USD
Regular price Sale price $4,299.00 USD
Sale Sold out
Shipping calculated at checkout.

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.



  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.
  • Uses common 18650 style rechargeable batteries.
  • Charge through the unit with a unique lock-out USB-C port design.
  • Optics

    Display Type

    AMOLED

    Eye Relief

    50mm

    Objective Focal Length

    50mm

    Digital Magnification

    8X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    Horizontal Angular Field of View

    8.8°

    Focusing Mechanism

    Manual Focus

    Objective F#

    0.9

    Objective Diameter

    50mm

    Objective Lens Material

    Germanium

    Display Resolution

    2560×2560

    Detection Range

    2850 Yards

    Optical Magnification

    3X

  • Features & Performance

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    Run Time

    7+

    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Aluminum Alloy

    Weight

    38.5 oz.

    Height

    2.68

    Width

    3.54

    Length

    14.37

    • Sensor Specifications

      Sensor Type

      Nocpix 640

      Sensor Pixel Size

      12μm

      Thermal Sensitivity

      <15mk

      Non-Uniformity Correction (NUC)

      Manual, Automatic, Semi-Automatic

      Sensor Frame Rate

      60hz

      Device Technology

      Thermal Imaging

      Sensor Resolution

      640×512
