Optics
Display Type: AMOLEDEye Relief: 50mmObjective Focal Length: 35mmDigital Magnification: 4XDiopter Range: -5 to +5Vertical Angular Field of View: 5.7°Horizontal Angular Field of View: 7.5°Focusing Mechanism: Manual FocusObjective F#: 0.9Objective Diameter: 35mmObjective Lens Material: GermaniumDisplay Resolution: 2560×2560Detection Range: 1970 YardsOptical Magnification: 3X -
Features & Performance
Warranty: 5 YearsStartup Time: <10 Seconds, Instant from StandbyColor Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, ViridianPicture-in-Picture: YesStorage Capacity: 64GBConnector Output: Power/DataUser-Updatable Firmware: YesMobile App: YesRun Time: 7+Power Source: USB-C External, 18650 Battery, Built-In Battery PackOne-Shot Zero: YesStand-by Mode: YesConnector Type: USB-CExternal Power Source: USB-CCountry of Manufacture: ChinaWifi: YesOnboard Recording: YesImage Capture: YesVideo Output: Yes -
Environmental Specifications
Operating Temperature Range: -4°F~122°FRecoil Rating: 1000 g/s² (300 Win./7mm Mag)Ingress Protection: IP67 -
Physical
Mounting Interface: QD PicatinnyHousing Material: Aluminum AlloyWeight: 37.0 oz.Height: 2.44Width: 3.54Length: 13.78 -
Sensor Specifications
Sensor Type: Nocpix 384Sensor Pixel Size: 12μmThermal Sensitivity: <18mkNon-Uniformity Correction (NUC): Manual, Automatic, Semi-AutomaticSensor Frame Rate: 60hzDevice Technology: Thermal ImagingSensor Resolution: 384×288
Brushbeater

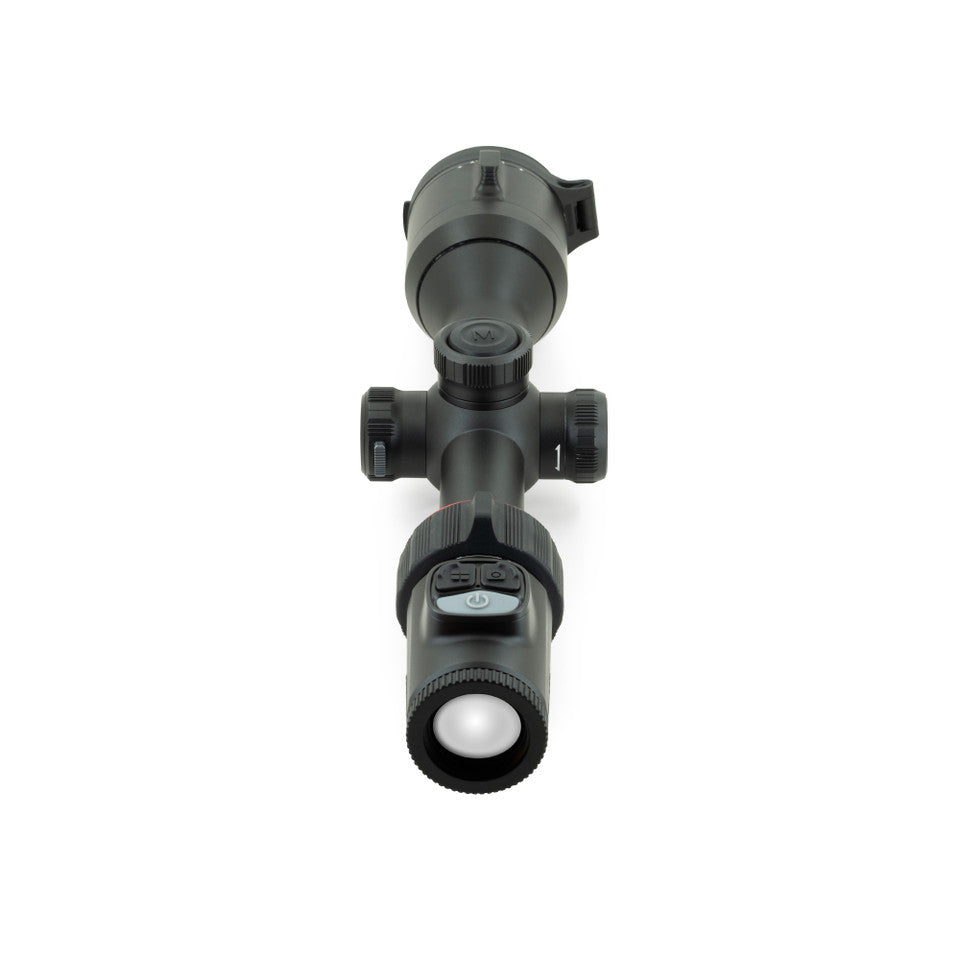

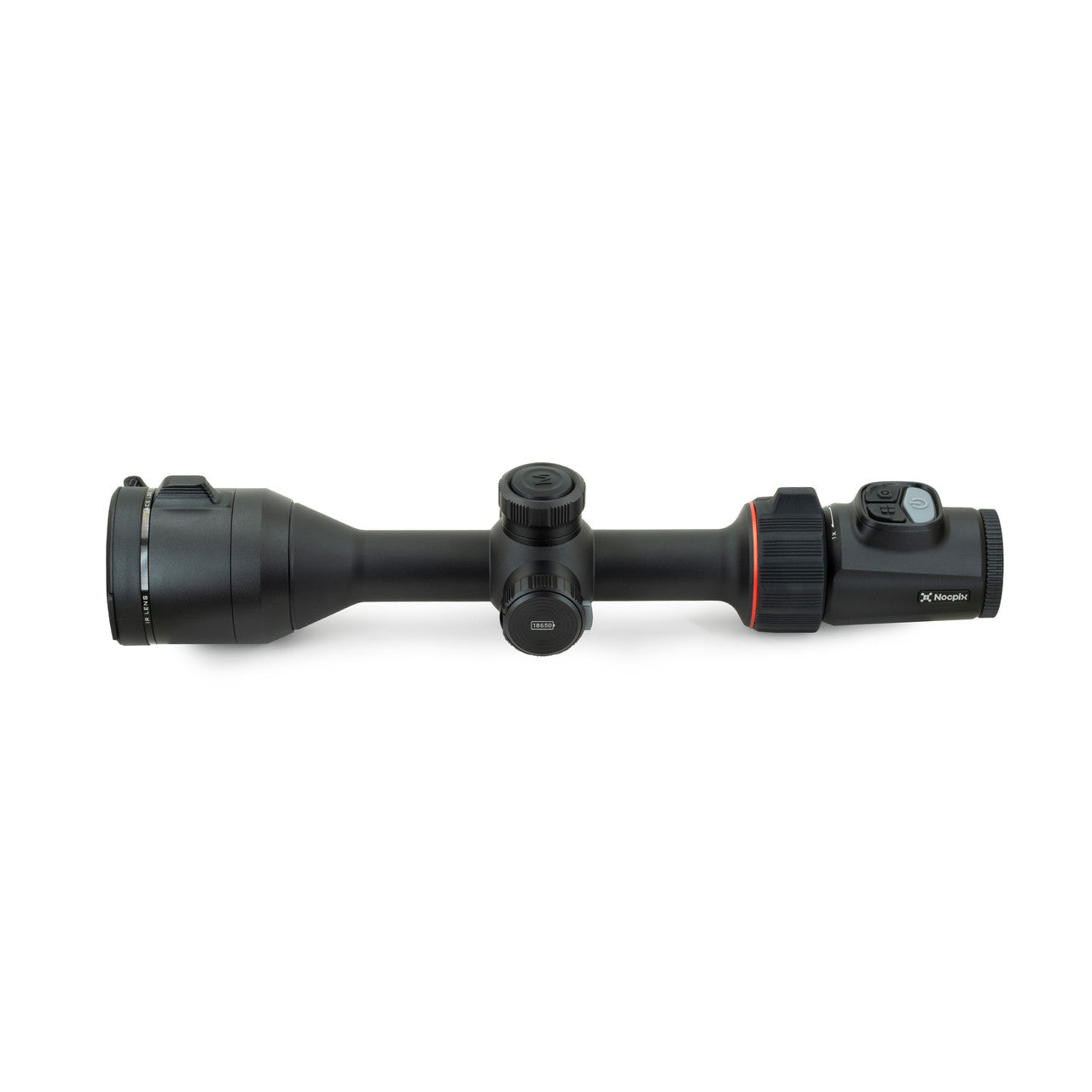

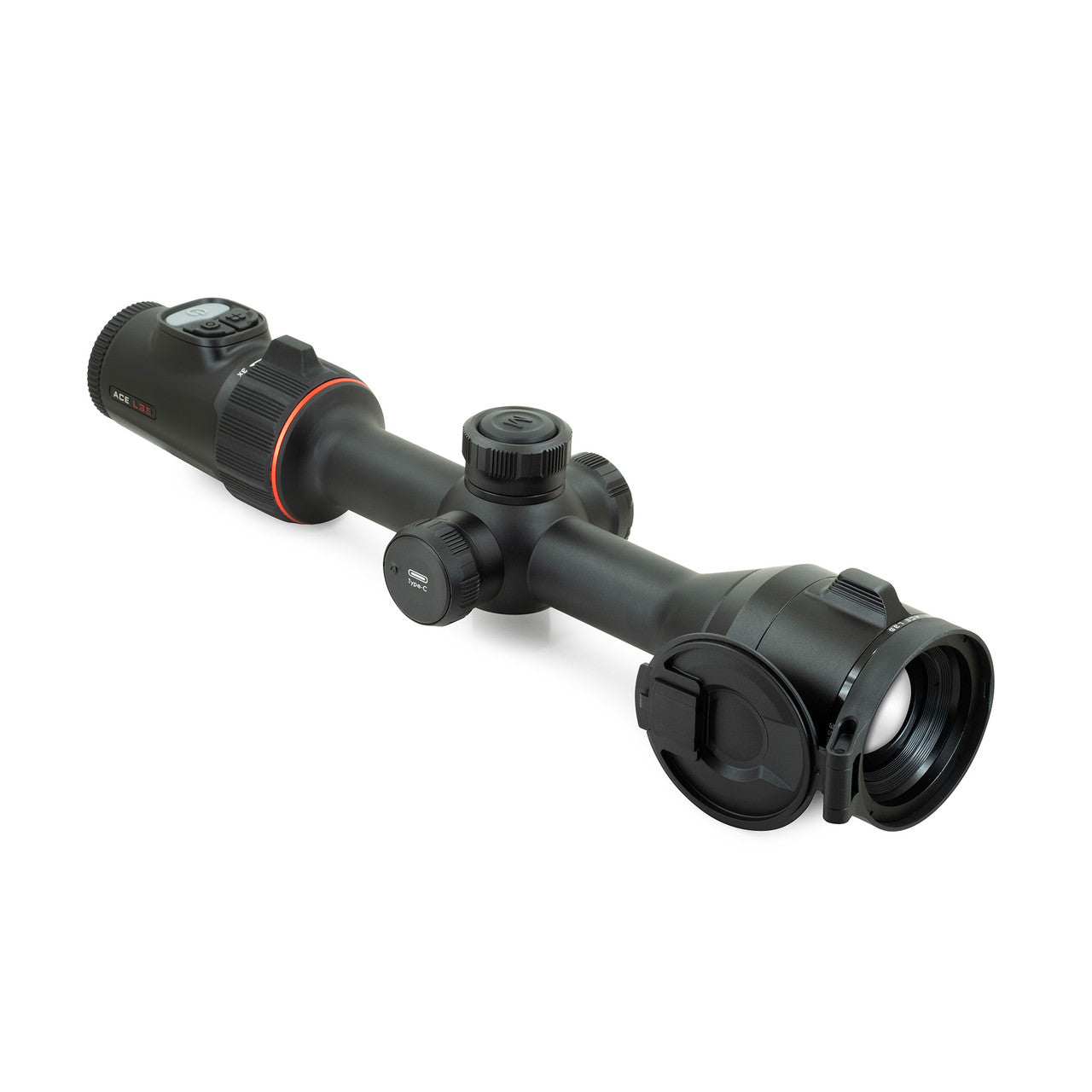

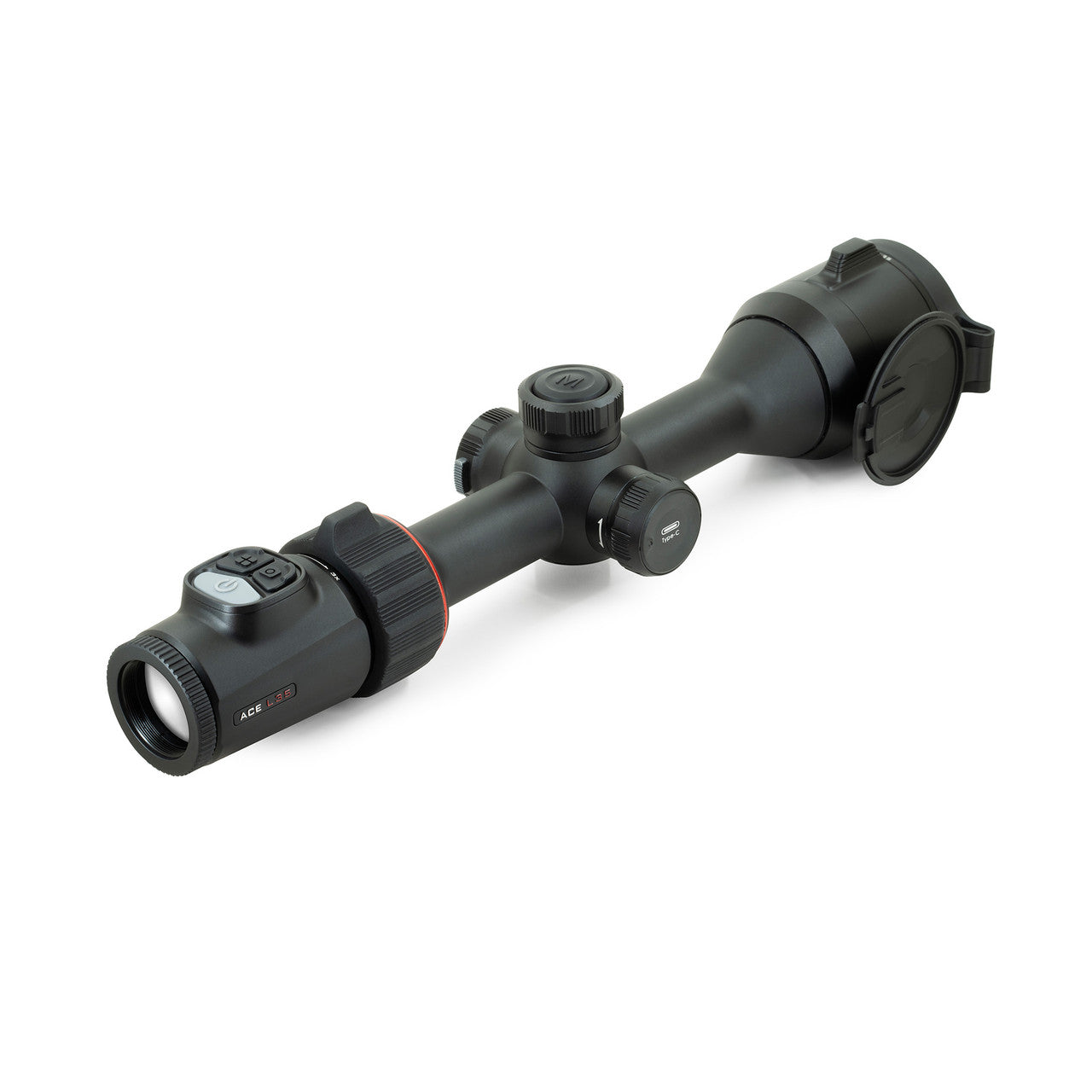

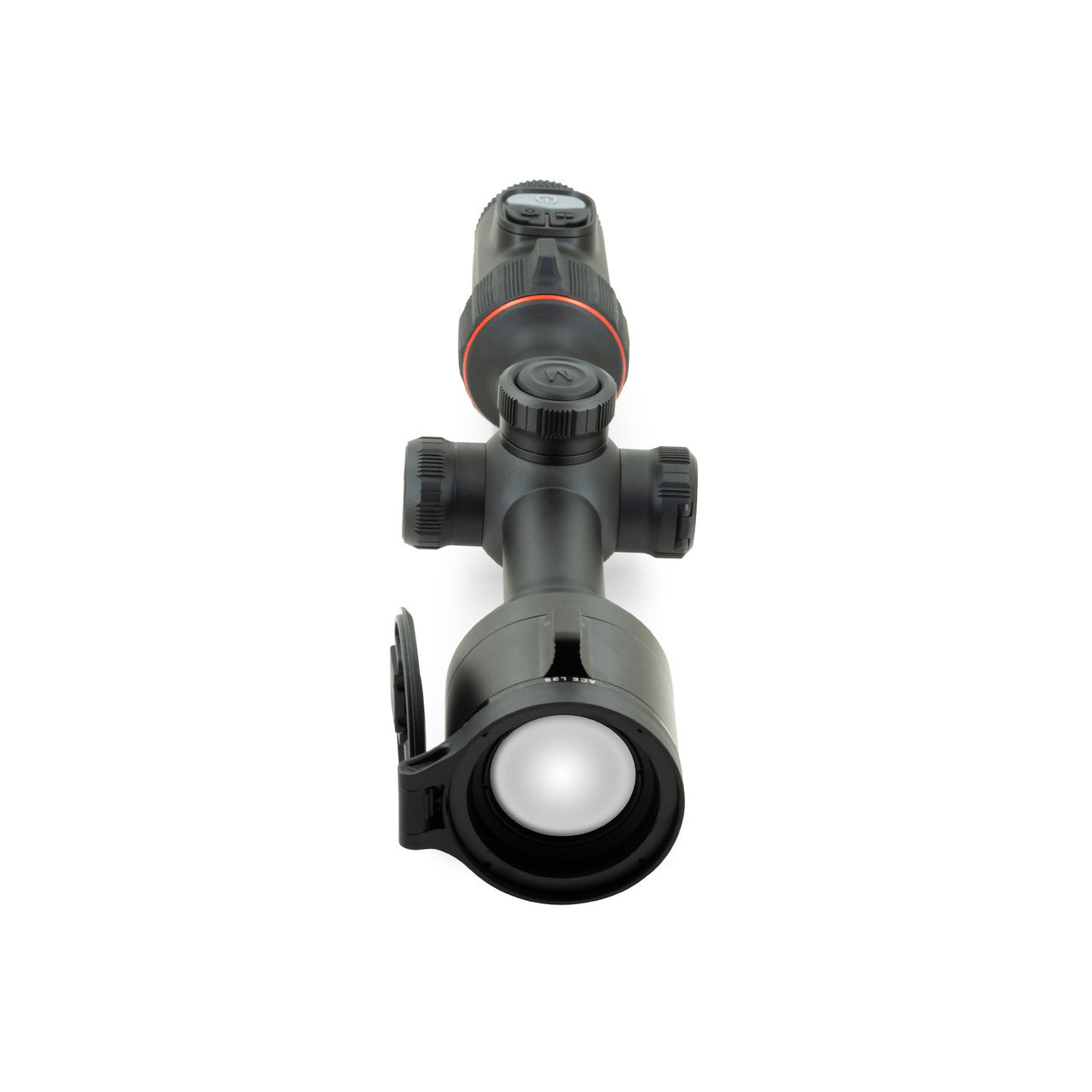

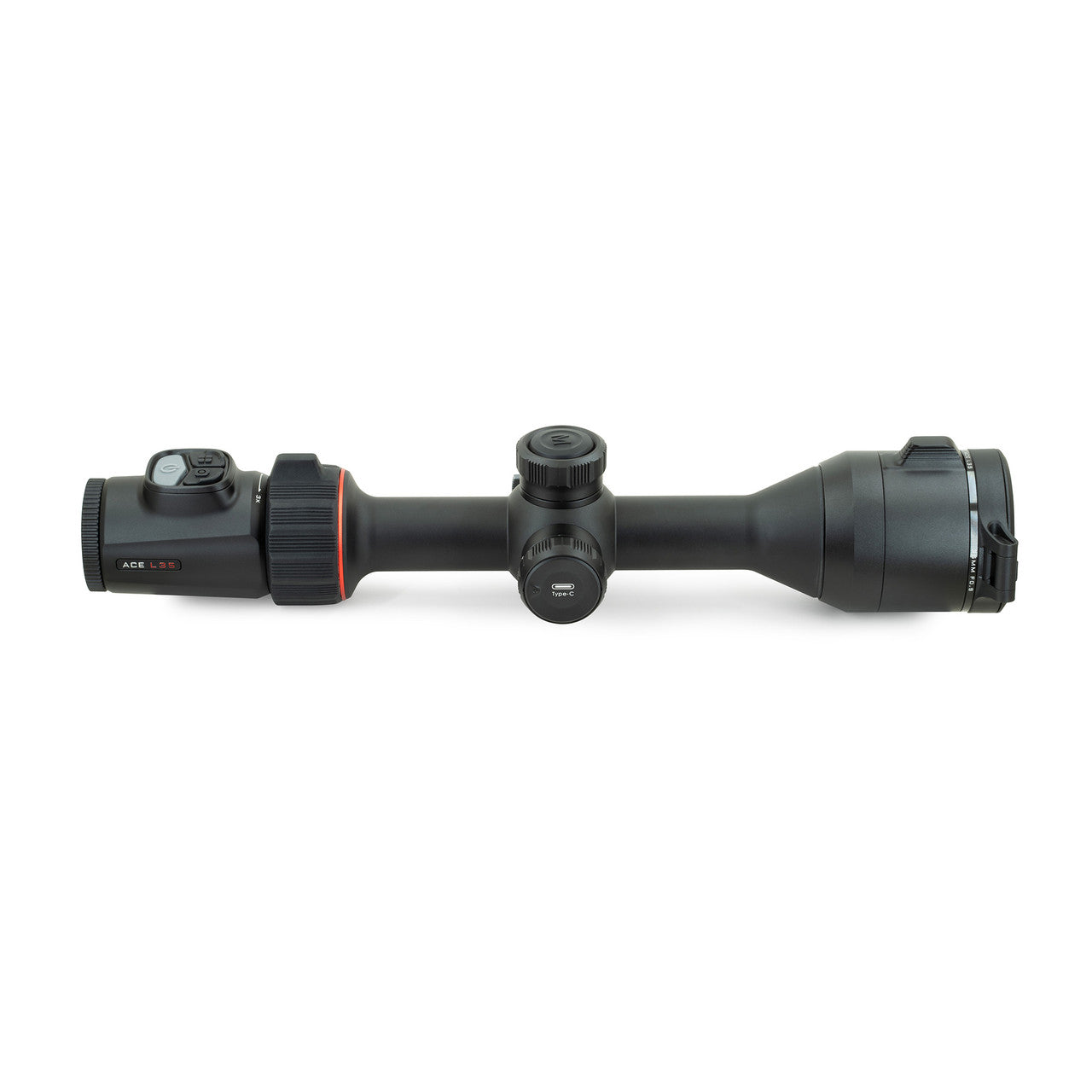

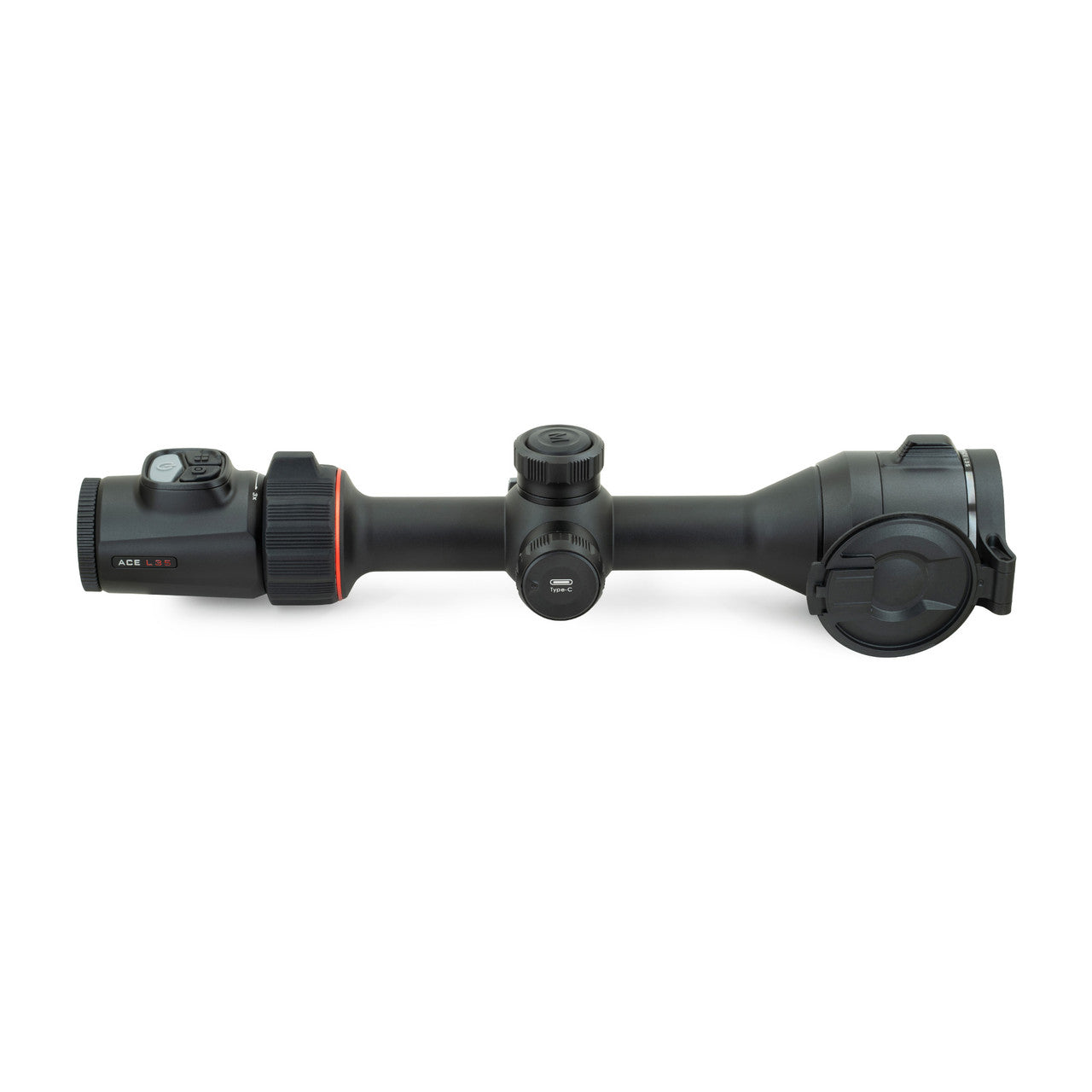

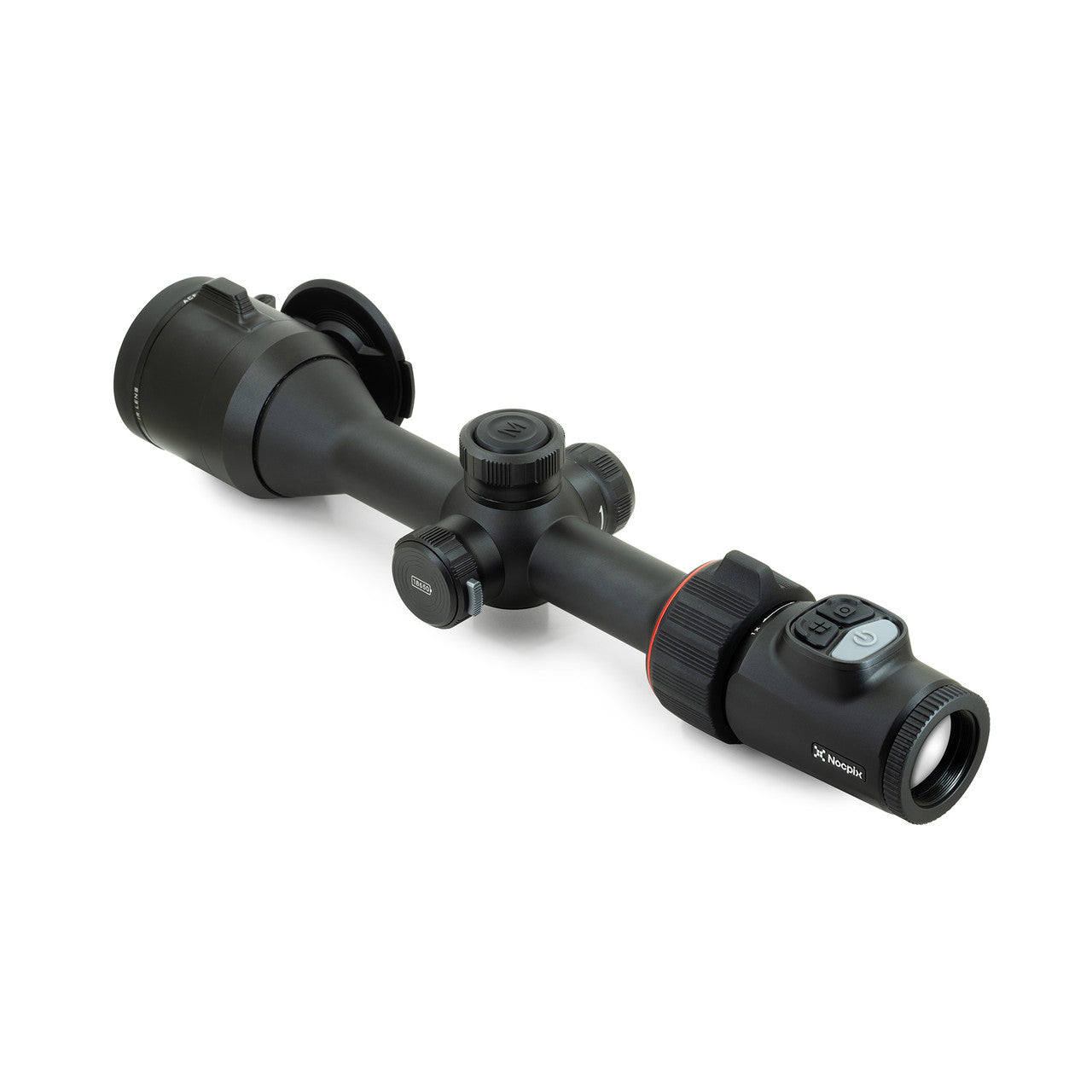

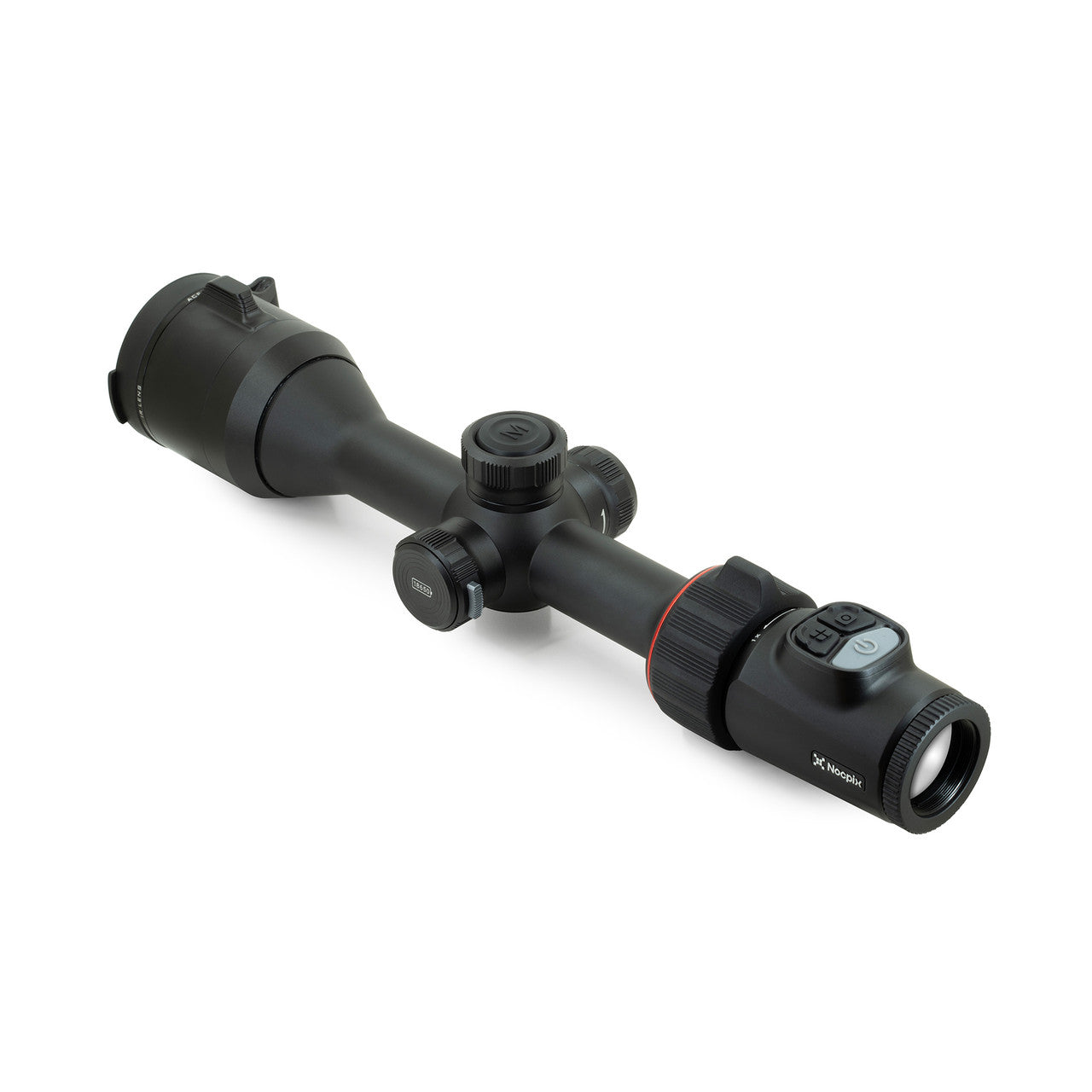

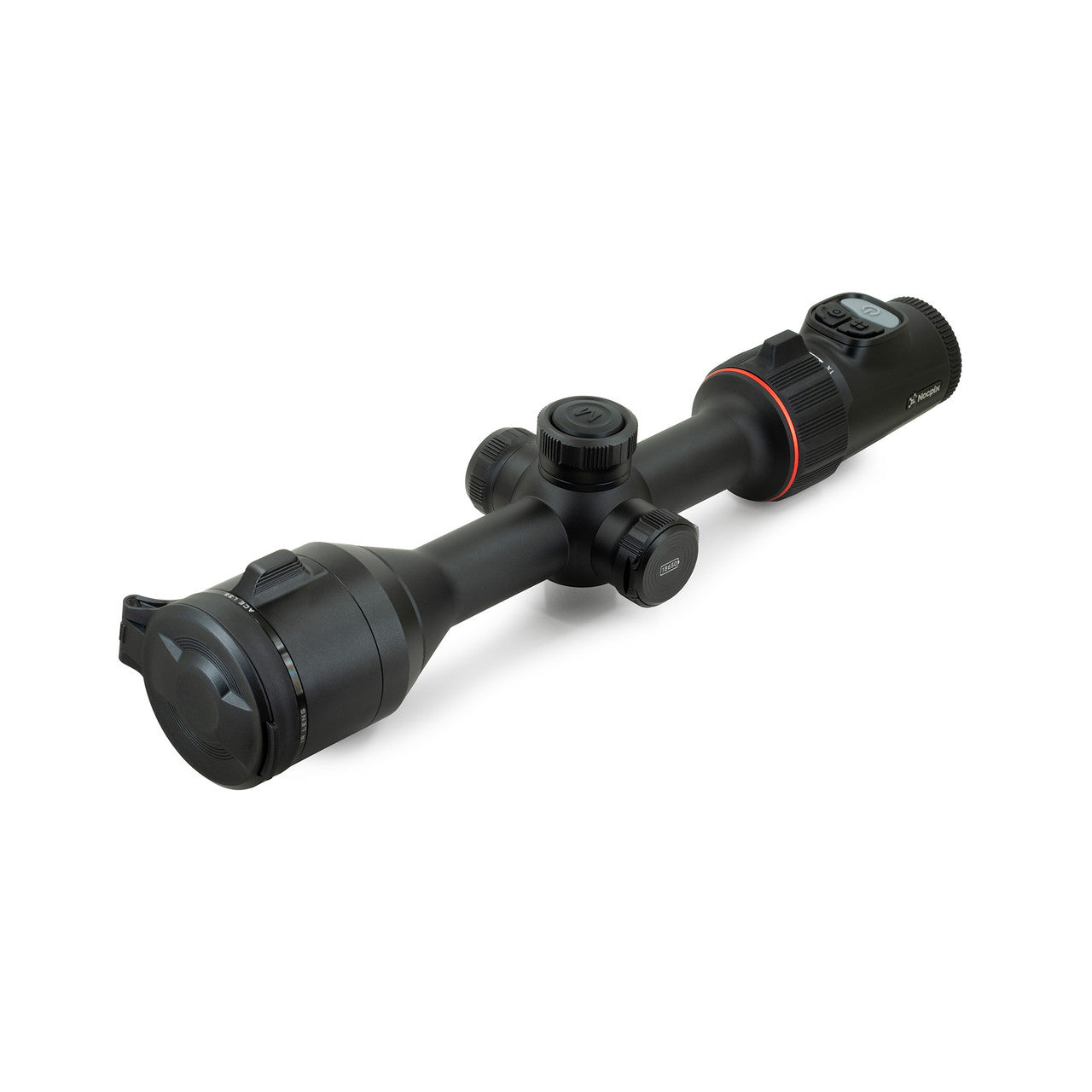

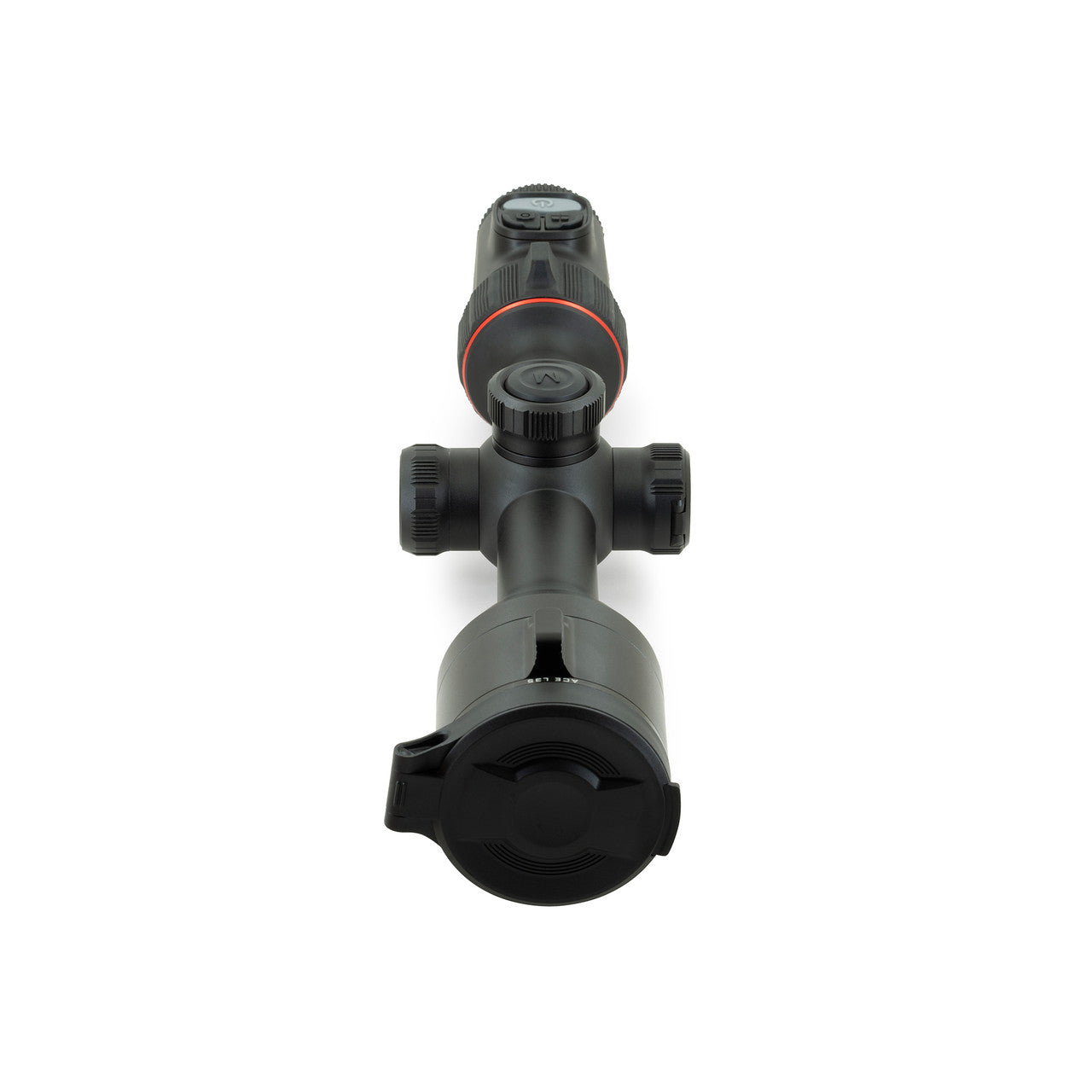

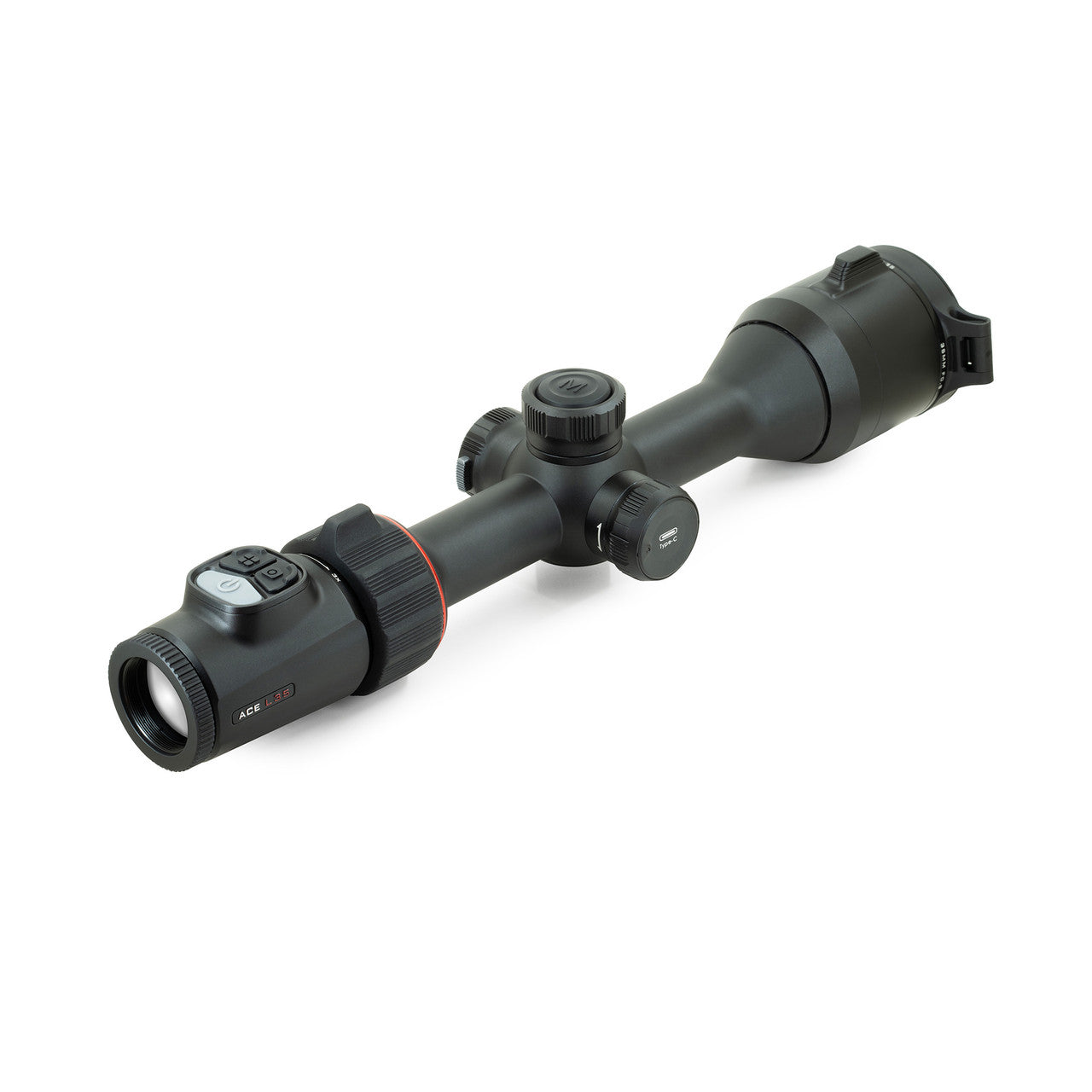

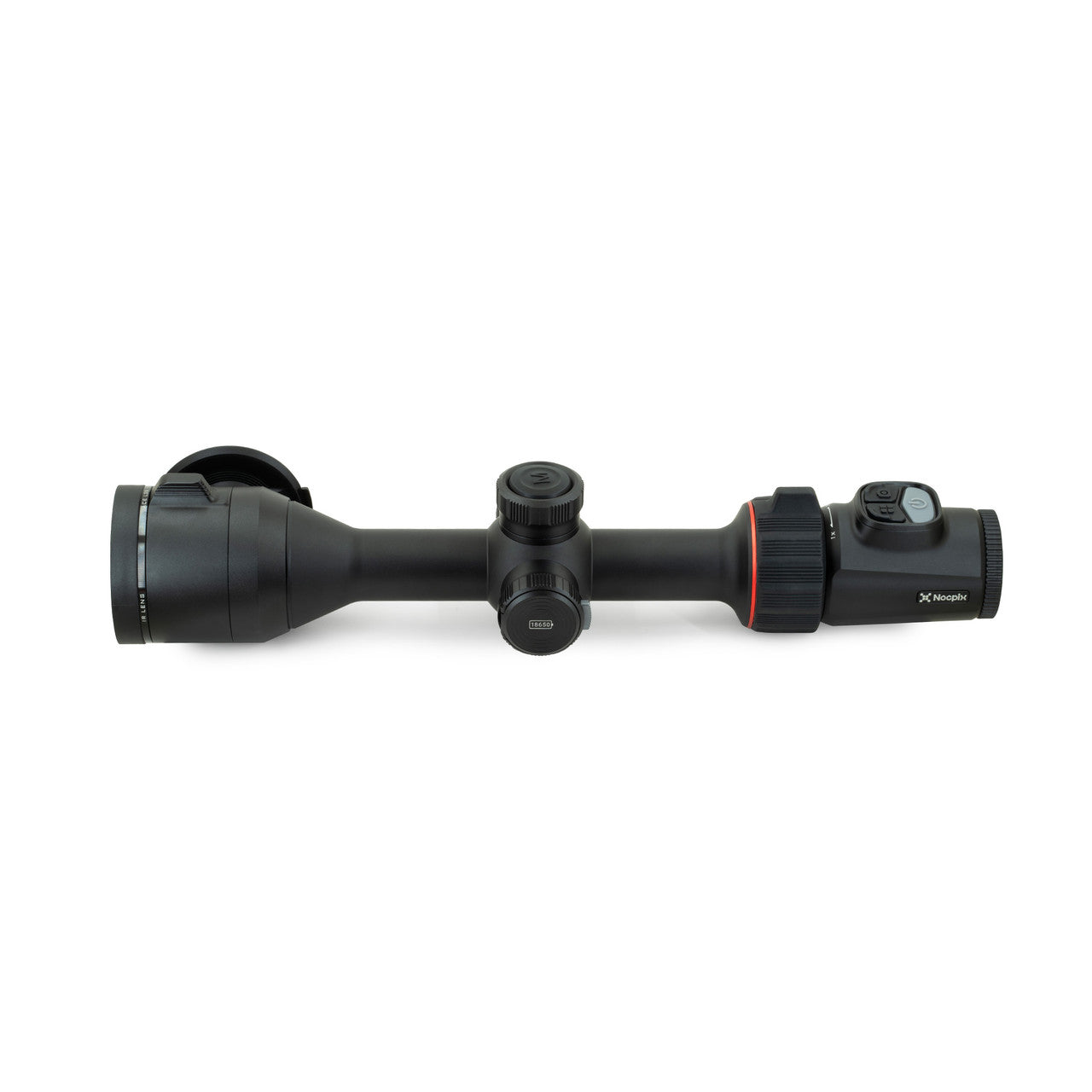

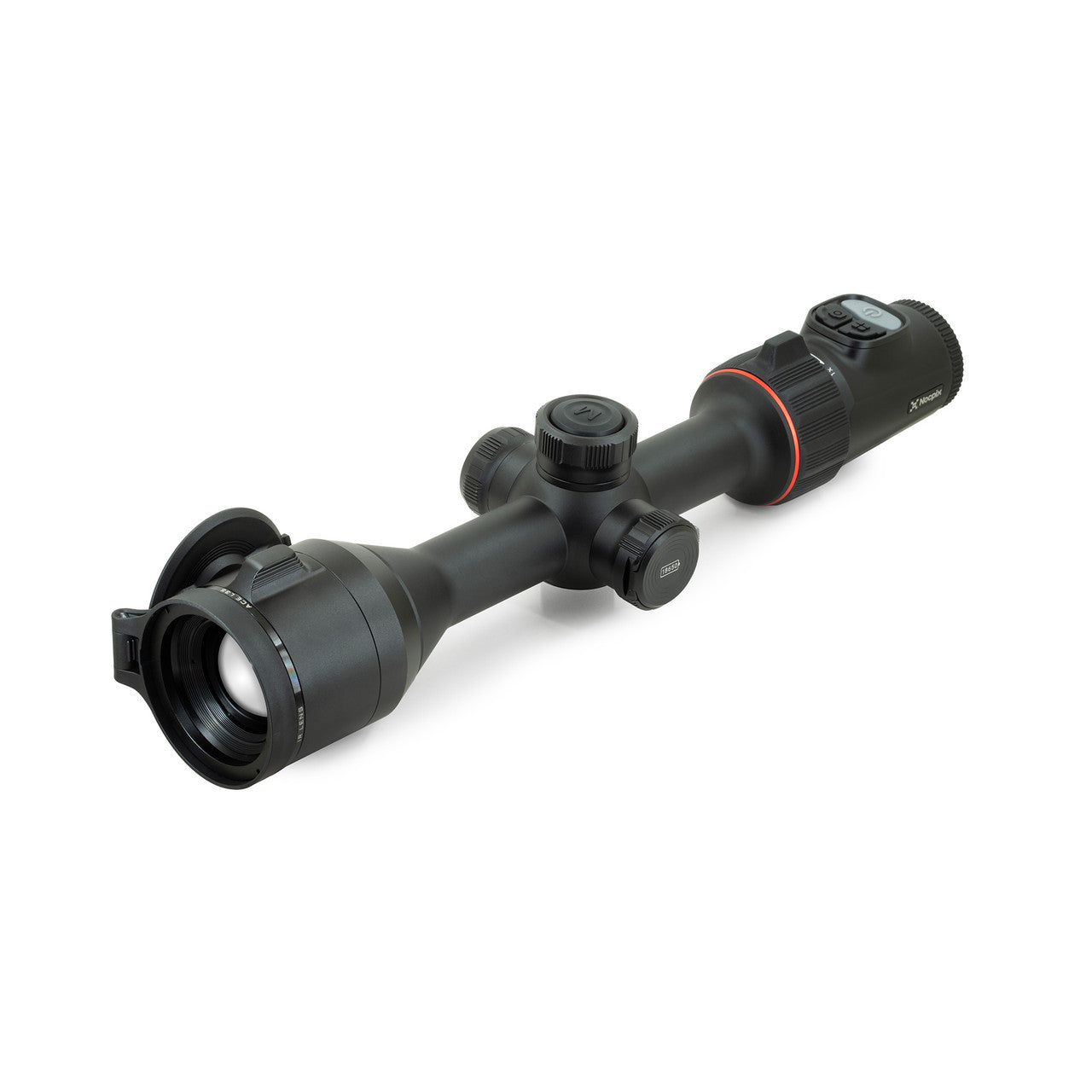

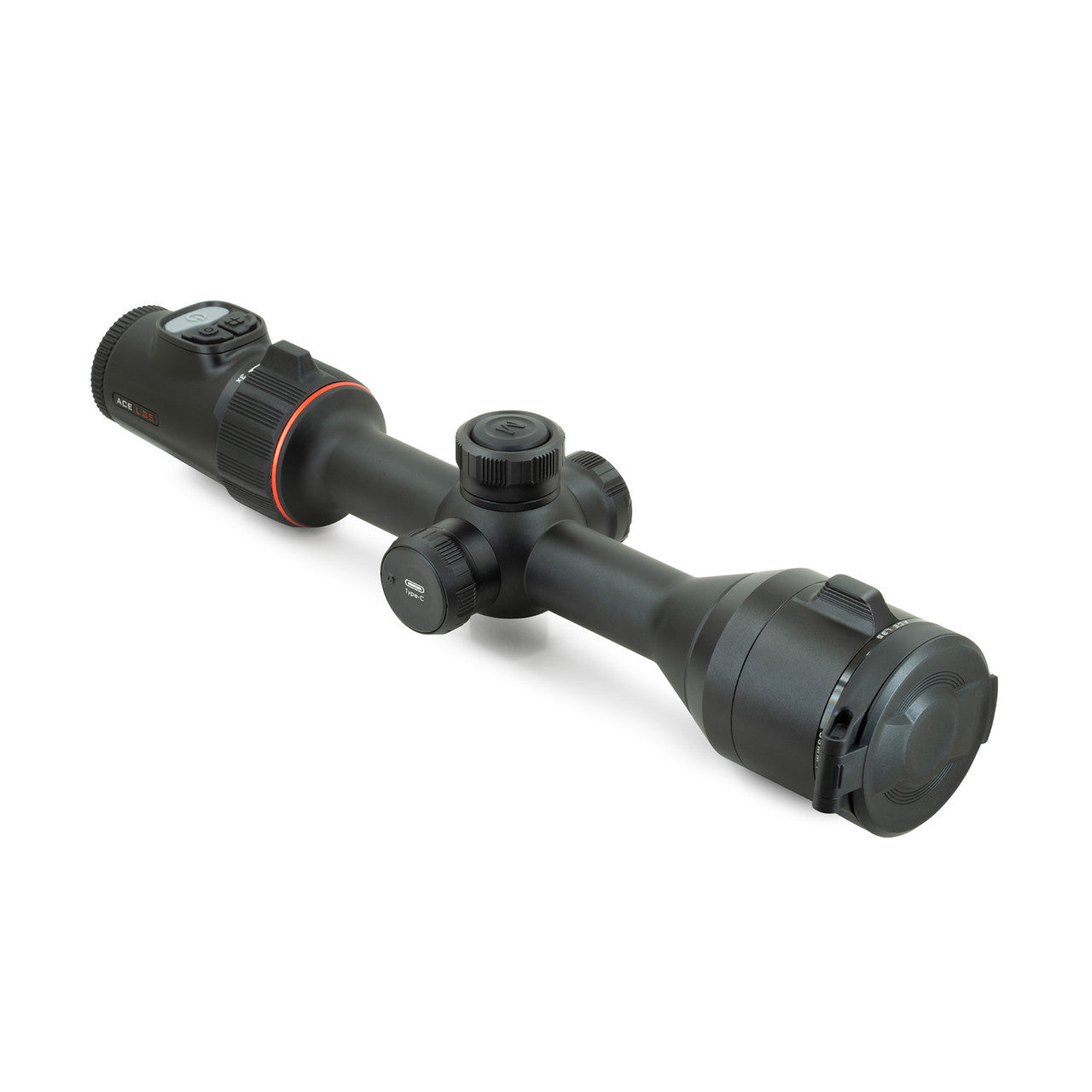

NOCPIX ACE L35 Thermal Weapon Sight
NOCPIX ACE L35 Thermal Weapon Sight
Couldn't load pickup availability
This optic is ITAR restricted.
The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.
New for 2025, the ACE L35 offers a more affordable option in the ACE line for predator and hog hunters who don't require a laser rangefinder or higher resolution sensor. Packing tremendous value, the ACE L35 retains all other features of ACE line of thermal rifle scopes.
- Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
- A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
- High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
- Simplified controls offer improved ergonomics and a better user experience in the field.
- Uses common 18650 style rechargeable batteries.
- A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
- Charge through the unit with a unique lock-out USB-C port design.
