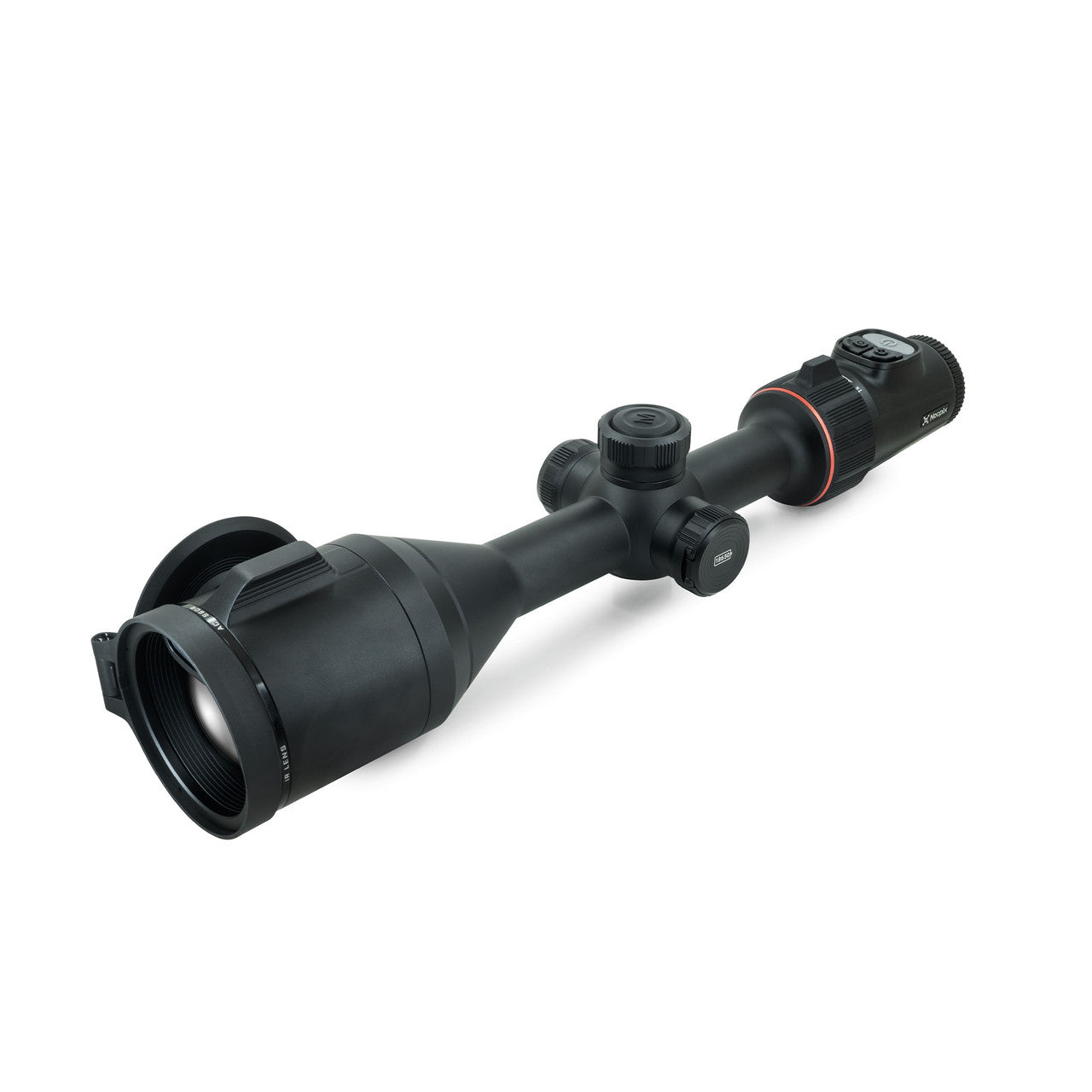

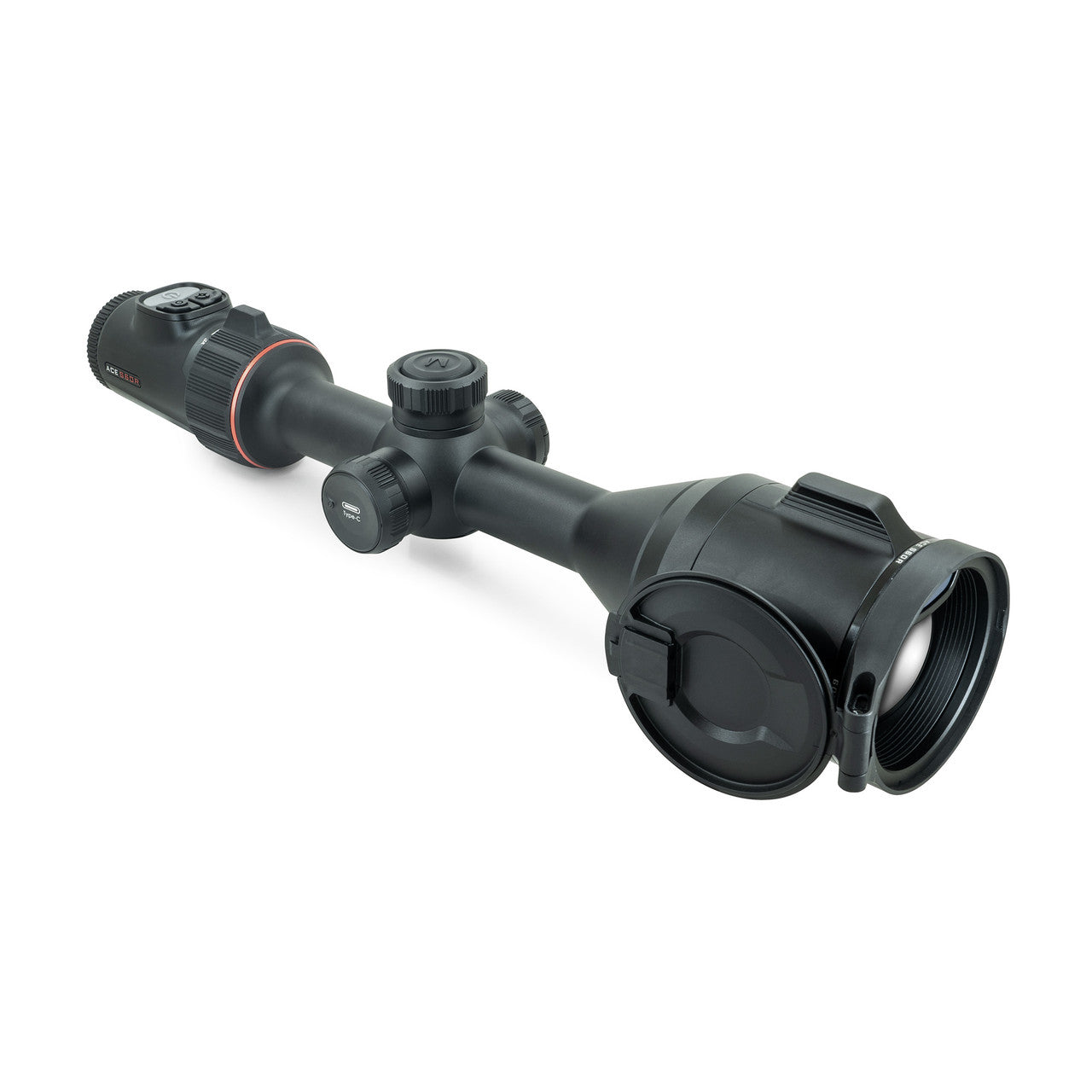

NOCPIX ACE S60R Thermal Weapon Sight 1280x1024 60mm

This is an ITAR restricted item.

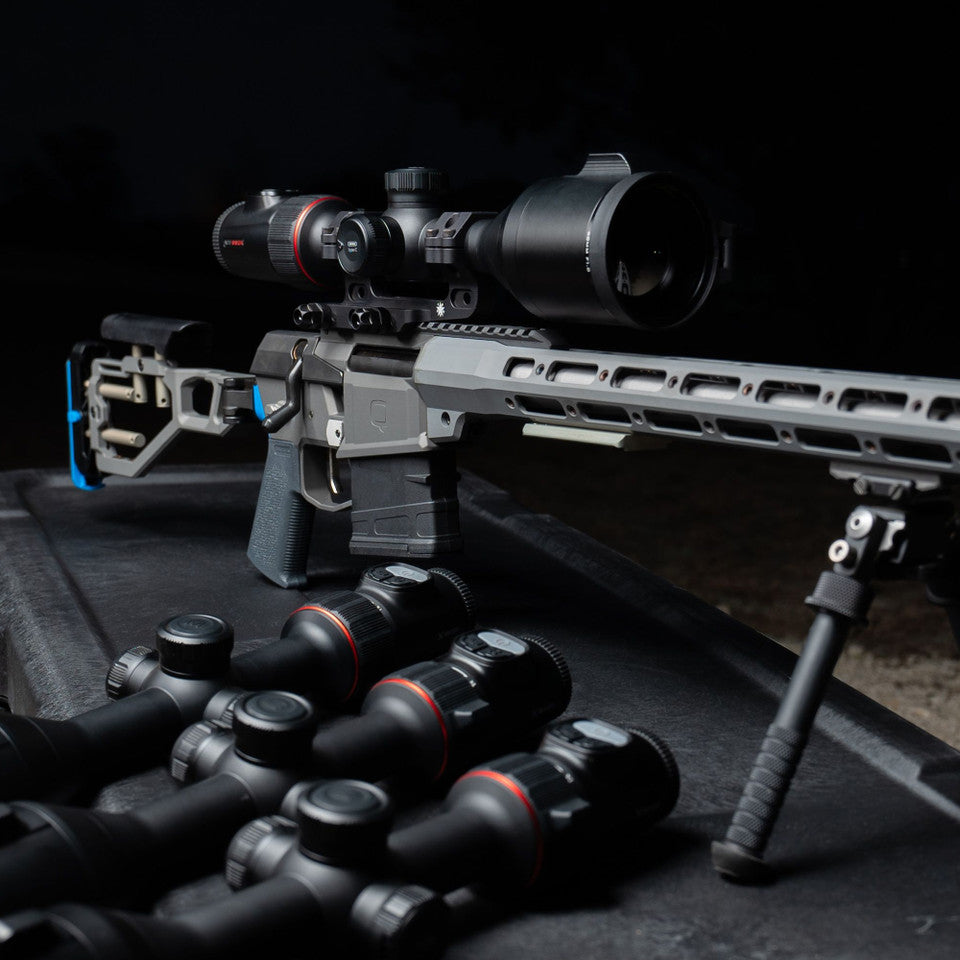

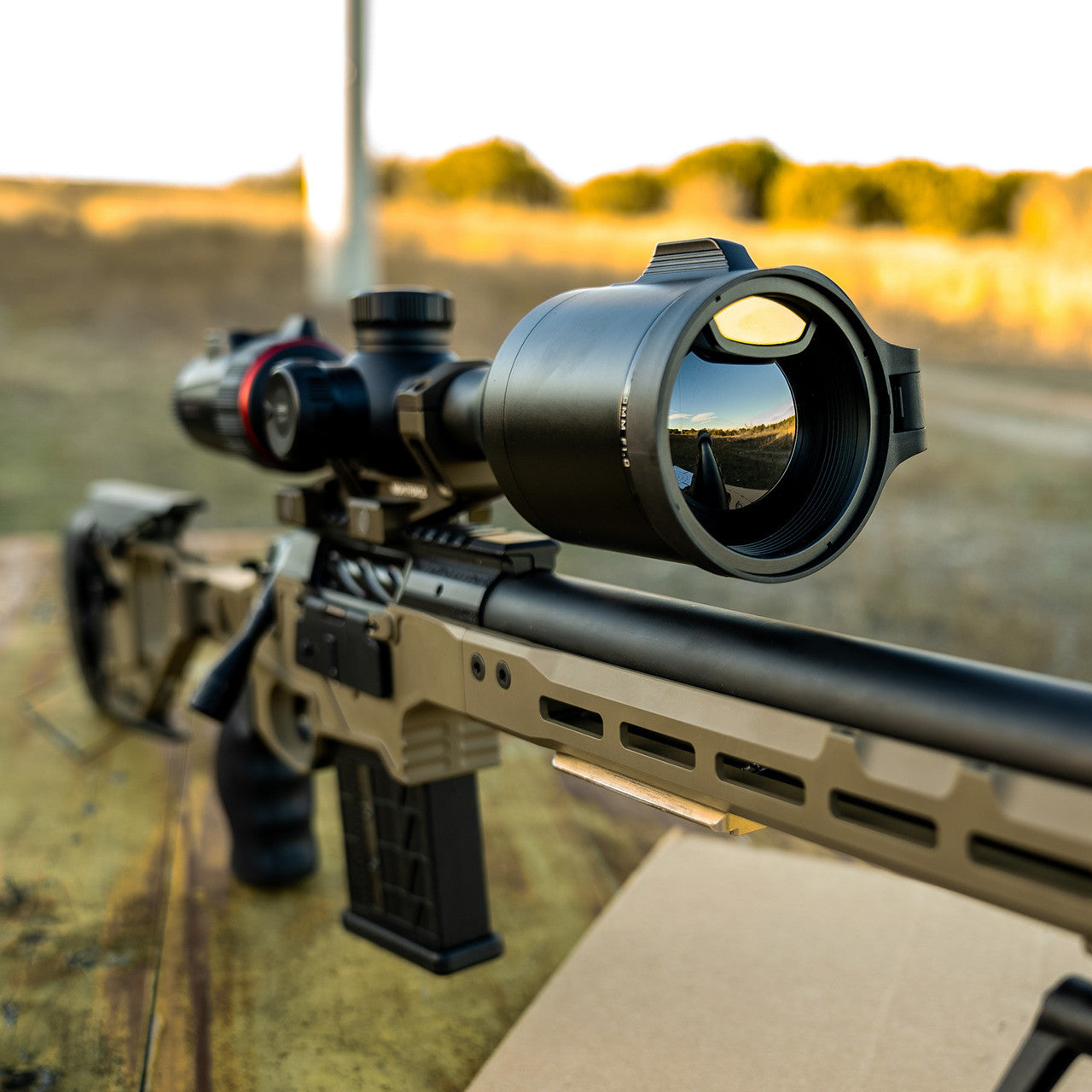

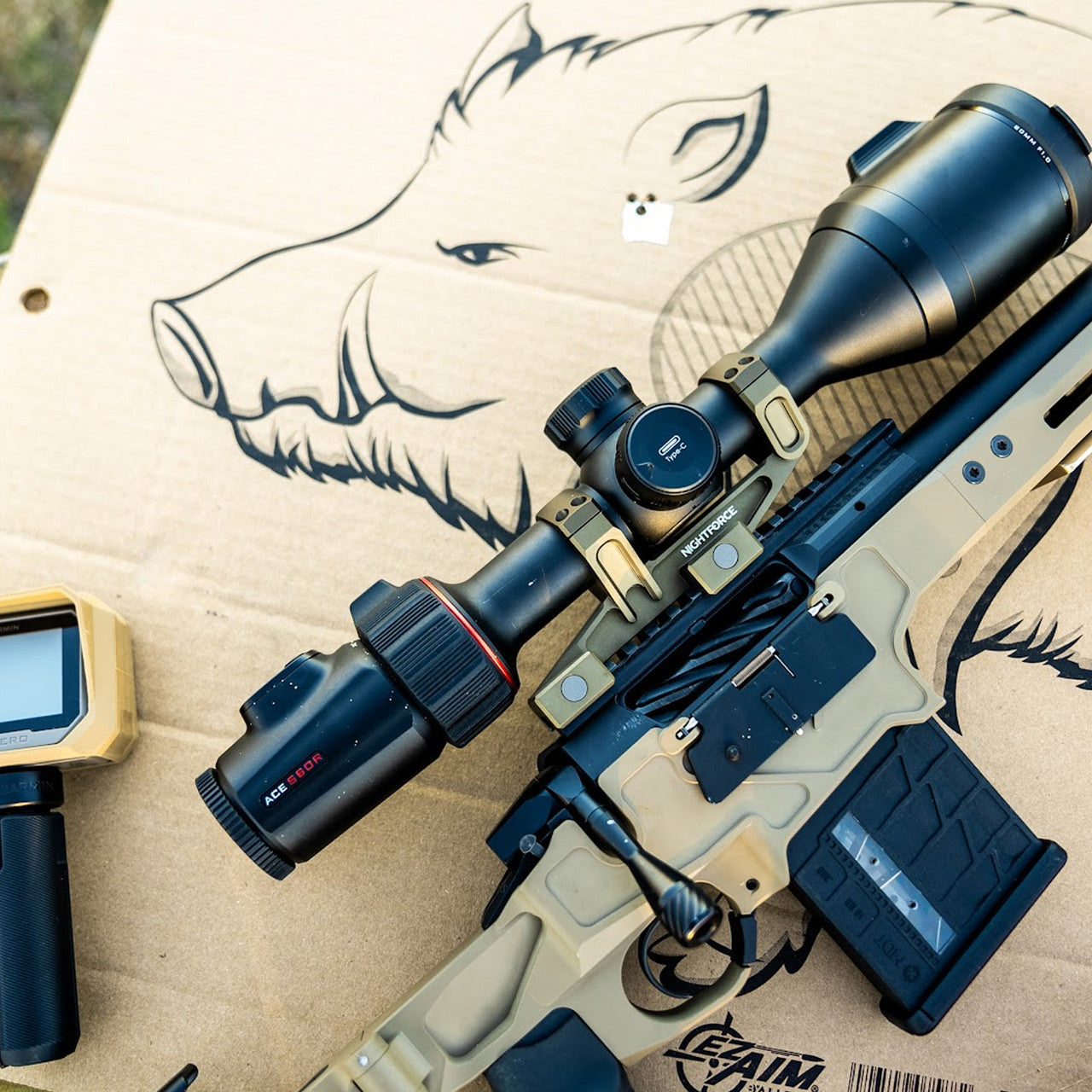

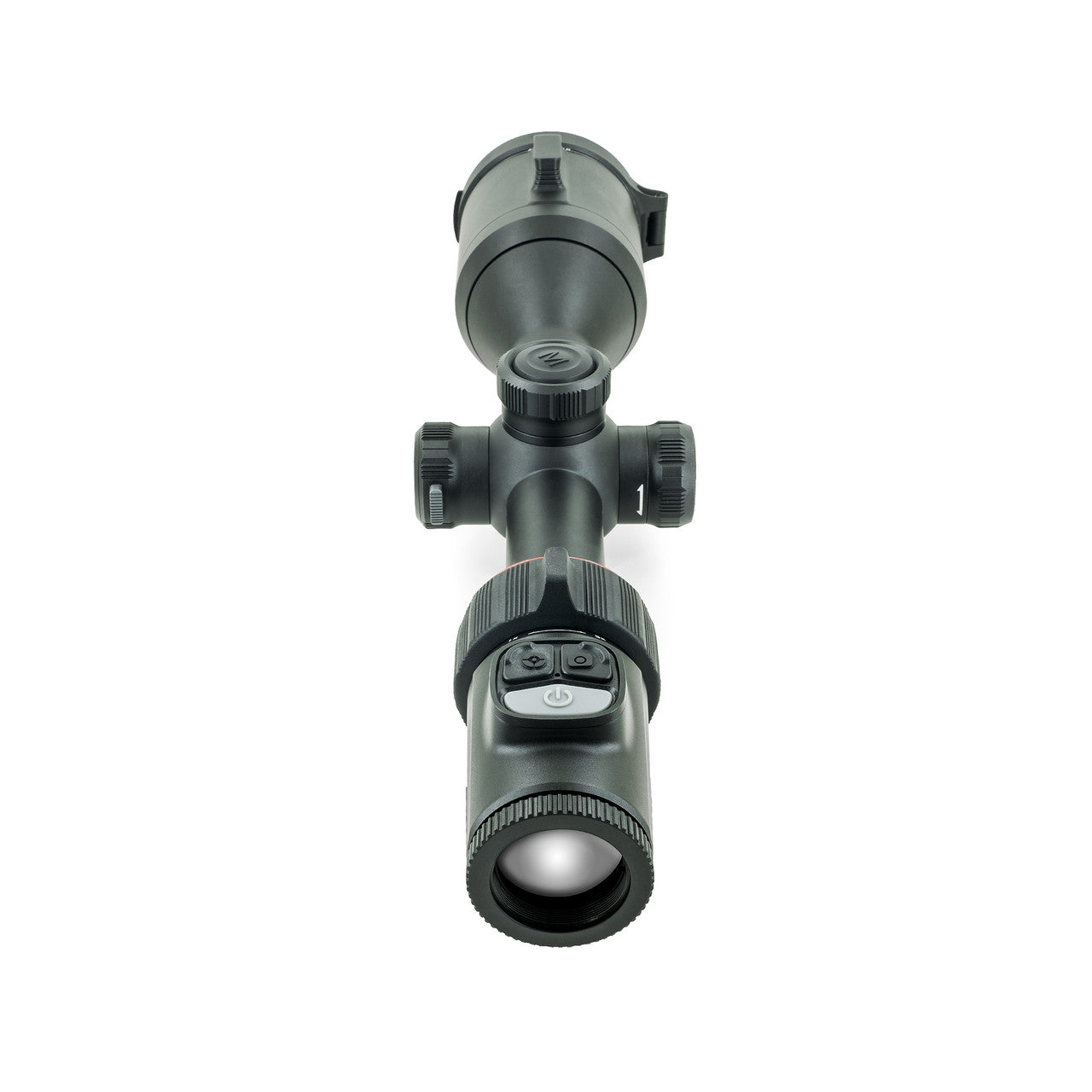

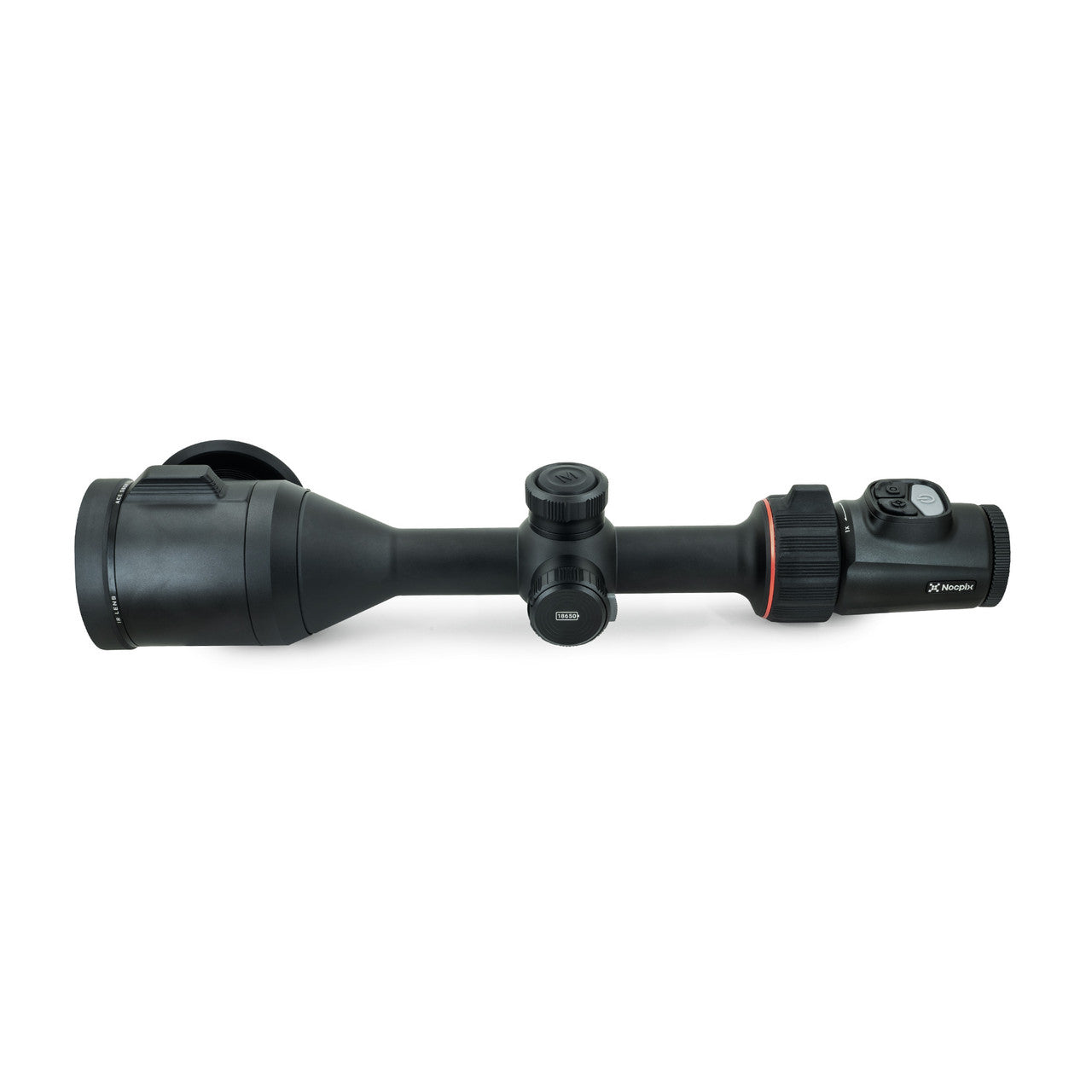

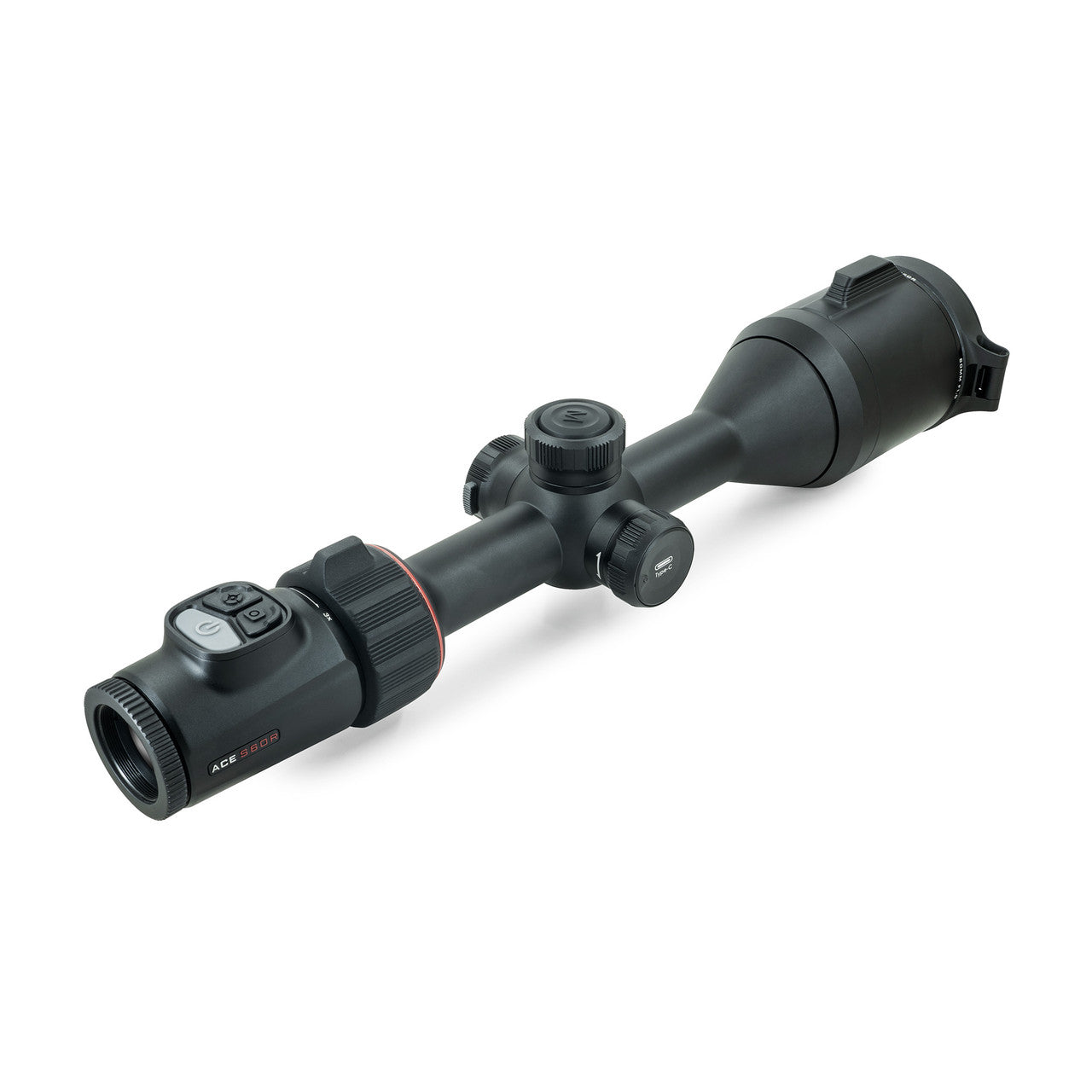

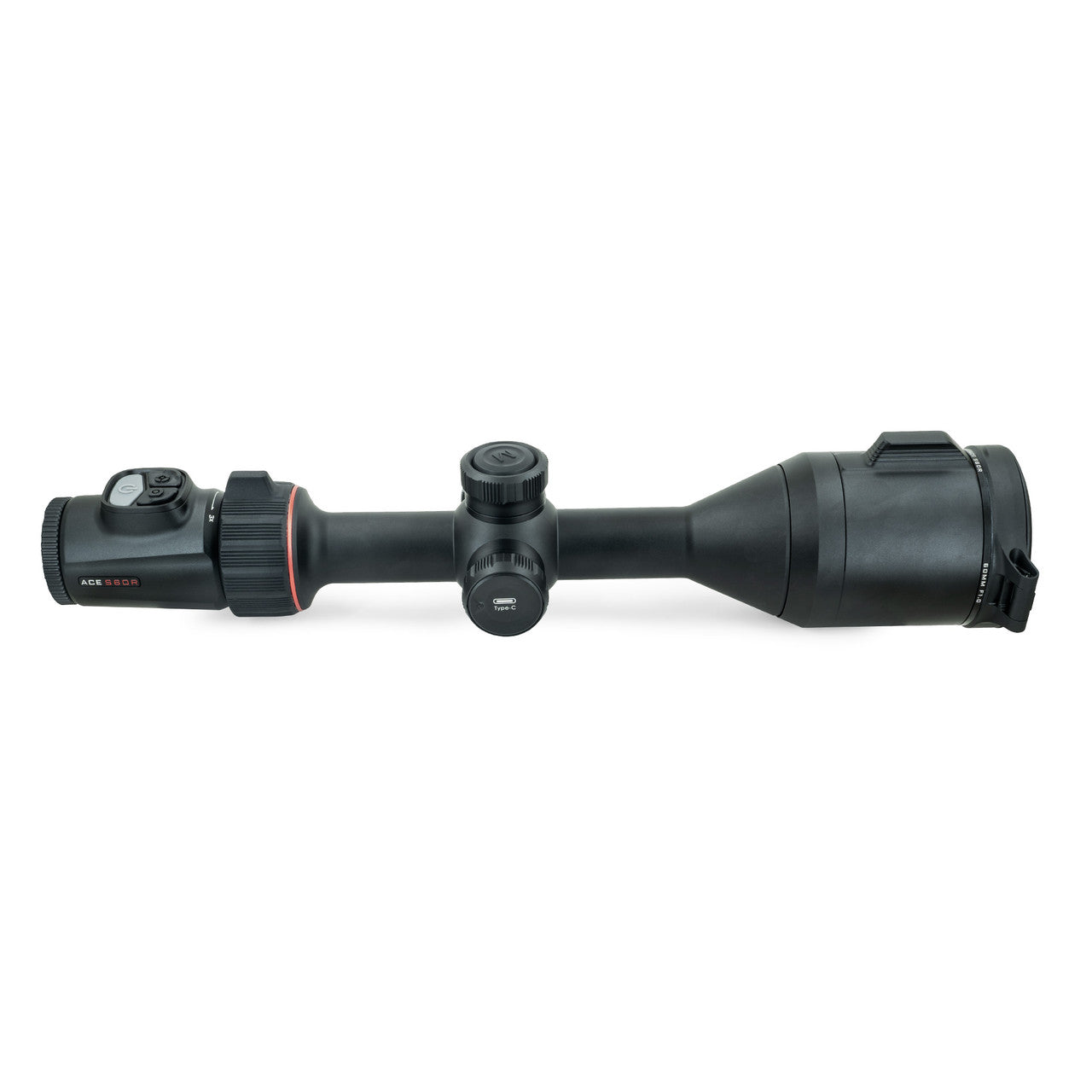

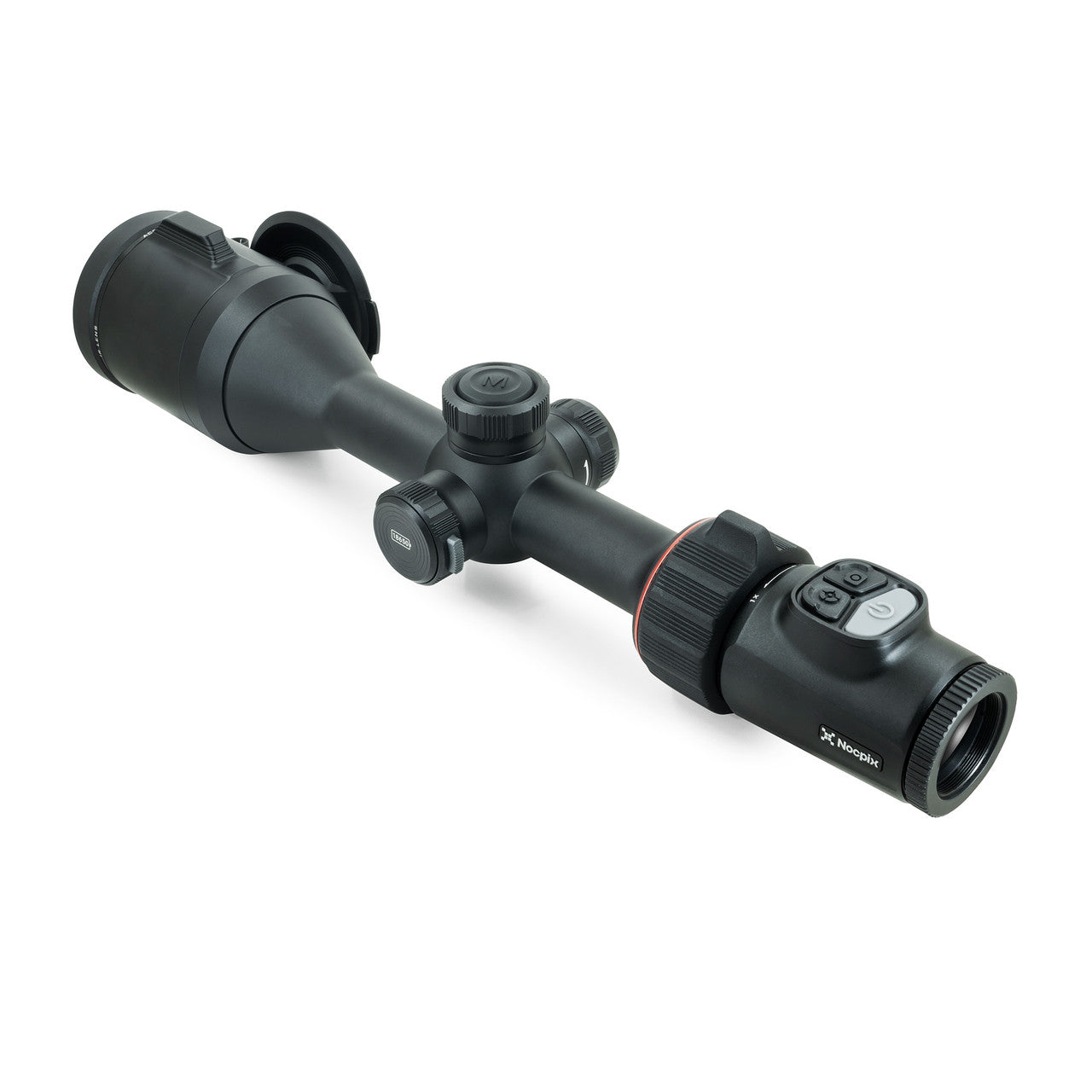

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a ≤15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

New for 2025, the ACE S60R brings the best-available thermal sensor resolution (1280x1024) to the most versatile thermal weapon sight platform on the market. With a 2x native (base) magnification, a12x digital zoom and a 1-3x Optical Magnifier, the magnification range delivers fantastic image quality at all ranges.

• Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
• Charge through the unit with a unique lock-out USB-C port design.

• Optics

  Display Type: AMOLED

  Eye Relief: 50mm

  Objective Focal Length: 60mm

  Digital Magnification: 12X

  Diopter Range: -5 to +5

  Vertical Angular Field of View: 11.7°

  Horizontal Angular Field of View: 14.7°

  Focusing Mechanism: Manual Focus

  Objective F#: 1.0

  Objective Diameter: 60mm

  Objective Lens Material: Germanium

  Display Resolution: 2560×2560

  Detection Range: 3400 Yards

  Optical Magnification: 2X

• Features & Performance

  Warranty: 5 Years

  Startup Time: <10 Seconds, Instant from Standby

  Rangefinder: Integrated 1200 yd LRF

  Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Picture-in-Picture: Yes

  Storage Capacity: 64GB

  Connector Output: Power/Data

  User-Updatable Firmware: Yes

  Mobile App: Yes

  Run Time: 6+

  Power Source: USB-C External, 18650 Battery, Built-In Battery Pack

  One-Shot Zero: Yes

  Stand-by Mode: Yes

  Connector Type: USB-C

  External Power Source: USB-C

  Country of Manufacture: China

  Wifi: Yes

  Onboard Recording: Yes

  Image Capture: Yes

  Video Output: Yes

• Environmental Specifications

  Operating Temperature Range: -4°F~122°F

  Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

  Ingress Protection: IP67

• Physical

  Mounting Interface: QD Picatinny

  Housing Material: Aluminum Alloy

  Weight: 45.9 oz

  Height: 2.76

  Width: 3.54

  Length: 15.35

• Sensor Specifications

  Sensor Type: Nocpix 1280

  Sensor Pixel Size: 12μm

  Thermal Sensitivity: <15mk

  Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

  Sensor Frame Rate: 50hz

  Device Technology: Thermal Imaging

  Sensor Resolution: 1280×1024
