NOX35 Thermal Scope
NOX35 Thermal Scope
- 640X480, 12 micron Thermal Core
- 60 Hz Refresh Rate
- 35mm Lens
- Weapon and Helmet Mountable

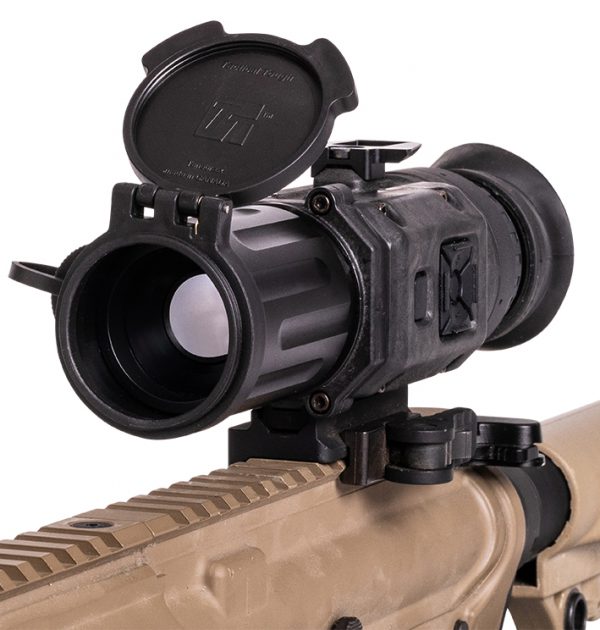

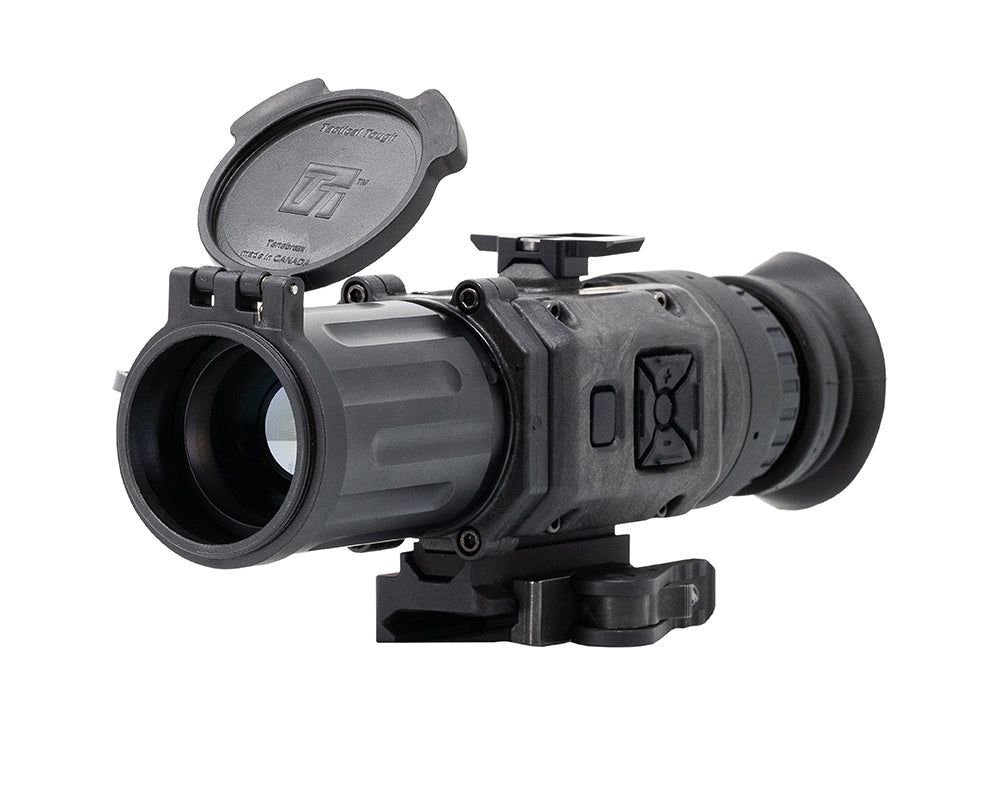

Nox35 is a 12-micron 60 Hz small, light, and fully functional thermal weapon sight that can serve double duty as a head-mounted monocular or a scanner. When you need a thermal weapon sight that lets you move from rifle to helmet or hand-held use with ease, look no further than N-Vision Nox. This unique product is proudly designed and built in the USA, using the best commercially available 640 x 480 60 Hz BAE thermal imaging core and the highest grade optical components.
Nox features a manual focus, non-rotating wide field of view 35mm F1.1 Germanium Lens to provide the best image quality in any weather conditions. Weapon and dovetail mounts are removable to reduce the unit’s size and weight to help achieve optimal NOX configuration.
Each Nox ships with a standard CR123 battery, rechargeable 18650 battery and a charger. Depending on ambient temperature, you can expect up to an hour of run time with a standard CR123 battery and four to seven-plus hours on the rechargeable 18650 battery.

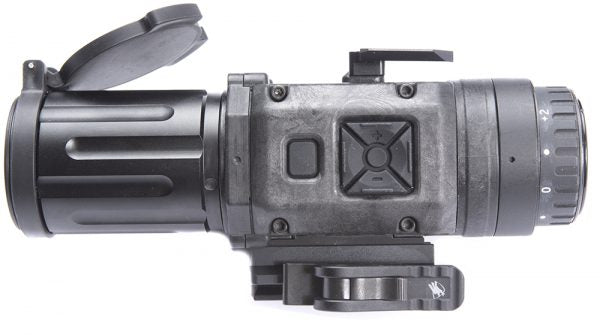

Nox’s five ergonomic control buttons permit immediate access to calibration, polarity, zoom, photo, power and user-friendly menu system for zeroing and customizing device parameters. The dedicated calibration button gives the user ability to calibrate the unit with one hand in under one second.
Sensor Pixel Pitch |
12 um |
---|---|
Resolution |
640 x 480 |
Refresh Rate |
60 Hz |
Magnification |
2.5x |
Lens |
35mm F1.1 |
Focus |
Manual, non-rotating |
Field of View |
12.2(H) x 9.3(V); 15.1 (diagonal) |
Digital Zoom |
1x/2x/4x/8x |
Display Type |
OLED 640×480 B&W |
Power |
One CR123 or one 18650 |
Remote power |
USB 5.0V |
External connector |
Waterproof USB-C |
Calibration (NUC) |
Manual |
Weight, CR123 Battery: |
16.9 oz (w/o weapon mount) |
Weight, 18650 Battery: |
18.7 oz (w/o weapon mount) |
Size, CR123 Battery: |
6.8×2.9×2.4 (w/o weapon mount) |
Size, 18650 Battery: |
6.8×2.9×2.4 (w/o weapon mount) |
Detection range |
1,491 yards |
Recognition range |
524 yards |
Identification range |
270 yards
|
