TinySA Ultra Spectrum Analyzer

TinySA Ultra Spectrum Analyzer

$210.99 USD
$210.99 USD
Sale Sold out
Shipping calculated at checkout.

The TinySA is an incredibly powerful Signals Intelligence (SIGINT) collection tool which displays a broad spectrum of received signals in real time. Much of the appeal of using software defined radio (SDR) in the SIGINT role is for its visual capabilities. This eliminates the need for requiring a laptop or tablet and puts that capability in a field portable kit.

The TinSA Ultra is the best of the small spectrum analyzers currently offered on the market. With a 4in color touch screen, it displays both the spikes as well as a waterfall for signal analysis. In the SIGINT course we attach these to improvised Yagis and Jungle Antennas for broadband signals collection and radio direction finding (RDF). Its wideband reception capability (100 khz - 5.3Ghz) receives not only radio traffic but anything else in the upper ends of the RF spectrum, providing early warning against cell phones, advanced 4G/5G based ground communications, and drones.

I consider this the critical tool for tactical signals exploitation (TSE), followed by a communications receiver.

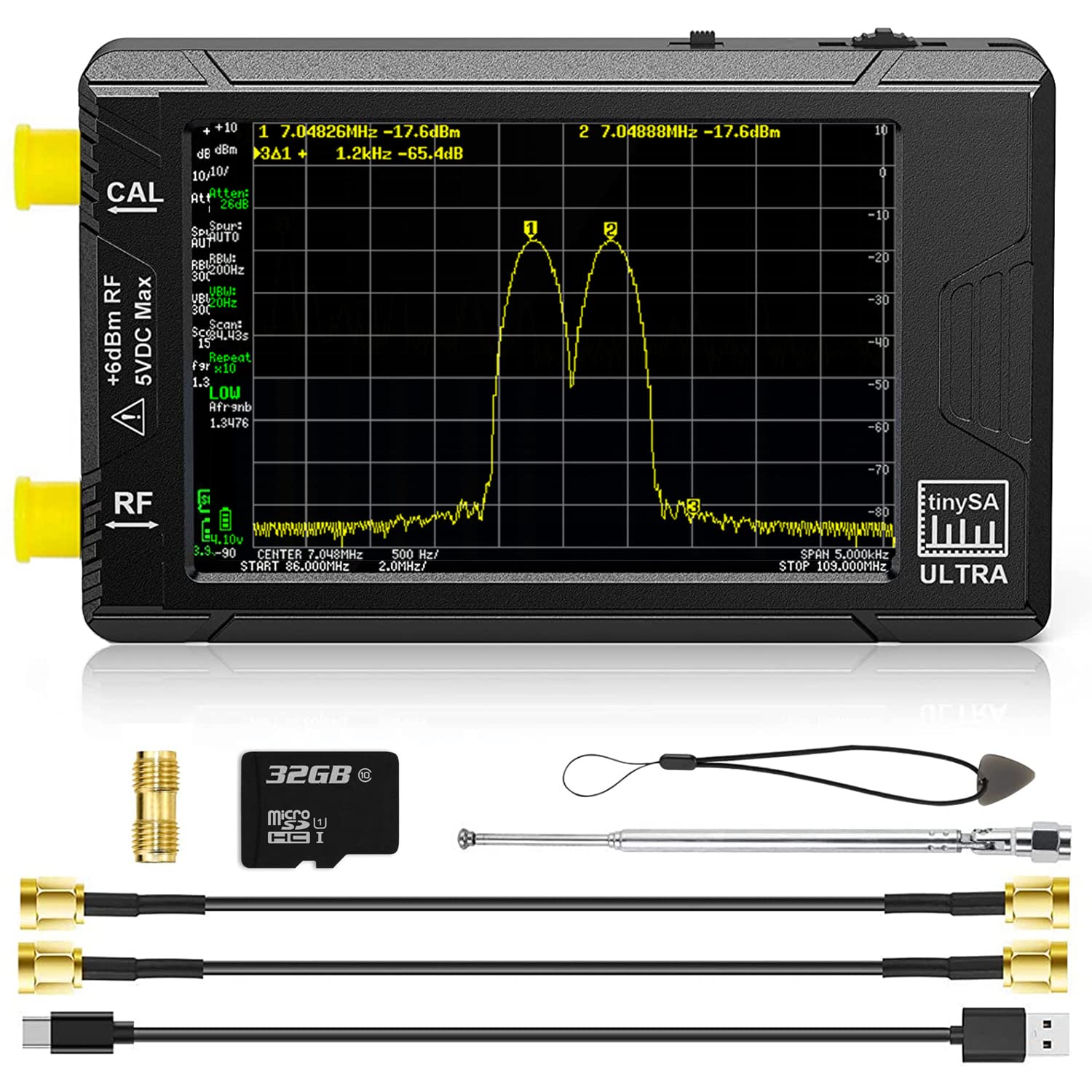

100kHz-5.3GHz,V0.4.5.1 Portable Tiny Frequency Analyzer with 32GB SD Card & 3000mAh Battery

  • 【New TinySA Ultra Mode】The ULTRA Tinysa developed by Hugen can reach an ultra-wide frequency range from 100kHz to 5.3GHz. The 4-inch large screen provides clear data images and sensitive operation touch. It also has a new ESD protection function, installed the latest hardware system V0.4.5.1, professional and stable.
  • 【Frequency Range】ULTRA tinysa has 100kHz to 5.3GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz. In Ultra mode, up to 0.1MHz-6GHz. It has 200Hz-850kHz RBW, adjacent signals effectively distinguished when RBW reach 200Hz, meet SSB two-tone test requirements, maximum width 850kHz, RBW implements fast scanning.
  • 【Used As Signal Generator】It is 2 in 1 device, can be used as Signal Generator. Built-in calibration signal generator that is used for automatic self test and low input calibration. 100k-800MHz sine wave output; 800MHz-4.4GHz square wave output; 4.4GHz-5.4GHz mixing signal output.
  • 【Include 32GB SD Card】 This ULTRA spectrum analyzer built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage. You won't be bothered by saving data any more, and can take tinysa for use at anywhere and anytime.n 240MHz-960MHz.
  • 【3000mAh Rechargeable Battery & PC Control】 The tinysa analyzer built-in 3000mAh rechargeable battery，can be used for up to 8 hours. Support PC Control，you can also transfer data to your computer through tinySA-APP connection. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel.

Materials

Shipping & Returns

Dimensions

Care Instructions

View full details

    Customer Reviews

    Based on 10 reviews
    100%
    (10)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    100.0
    100.0
    R
    RYAN P.
    Great piece of gear!

    I recommend purchasing the tinySAUltra.
    The ability to visualize the spectrum and identify sources is extremely useful. The user interface is simple and efficient which enables the ability manipulate settings on the fly with minimal effort.
    Excellent customer service and shipping.
    🇺🇸

    T
    Travis Young
    Monster signal analysis! Tiny package!

    I love this little SA! It's a fantastic little tool and once I can get the 6G opened up it will be even better. Thanks, Brushbeater.store!

    M
    Mike
    Nice piece of gear

    I've had this a little over a week, so I'm still getting used to it. Setup was easy using the directions from American Partisan and the Brushbeater forum. So far I have been doing spectrum analysis from my home, portable ops come later. The unit works as advertised. Coupled with a receiver of some sort it is a useful SIGINT tool.

    M
    Moose Rider
    Amazingly capable tool

    The TinySA Ultra is well worth the price, it does everything that I needed plus have found other things that the TinySA is handy for like finding listening devices that seem to appear randomly. Fast shipment from Brushbeater and can be sure to get a genuine TinySA Ultra and not a illegal copy, highly recommend!

    A
    Andy Rifleman
    Tiny SA Ultra

    Great piece of equipment. Awesome for tracking down signals and checking for spurious emissions. Love the audio port. I'm able to not only see signals onnthe active waterfall, but also listen to them on a set of headphones using the 3.5mm jack. Would highly recommend this piece of gear.
