- Analog – SDR Radio: Software-defined radio (SDR) system uses software for the modulation and demodulation of radio signals. Processing via a computer or other digital devices with software, the X6100 can provide you more info in real-time, complete complex operations and process data faster.
- 5W Upgrade to 10W High Power: From 5W to max 10W, the Xiegu X6100 is a more powerful RIG than the X5105. In general, a higher wattage allows for greater range. Working with the XPA125B power amplifier, the X6100 can meet your long-rang talking requirement.
- 3.6" LCD Screen - 4in Color Screen: The Xiegu X6100 HF transceiver comes with a 4-inch large color screen with 800*400 high resolution, helping you see all the important information at a glance.
- Wireless Operation: In addition to traditional connecting ports to connect with extended devices , the Xiegu X6100 also supports modern connection methods like mouse and keyboard control via Bluetooth.
- Built-in High-stability TCXO Internal Clock Source
- Newest Firmware: 20221124

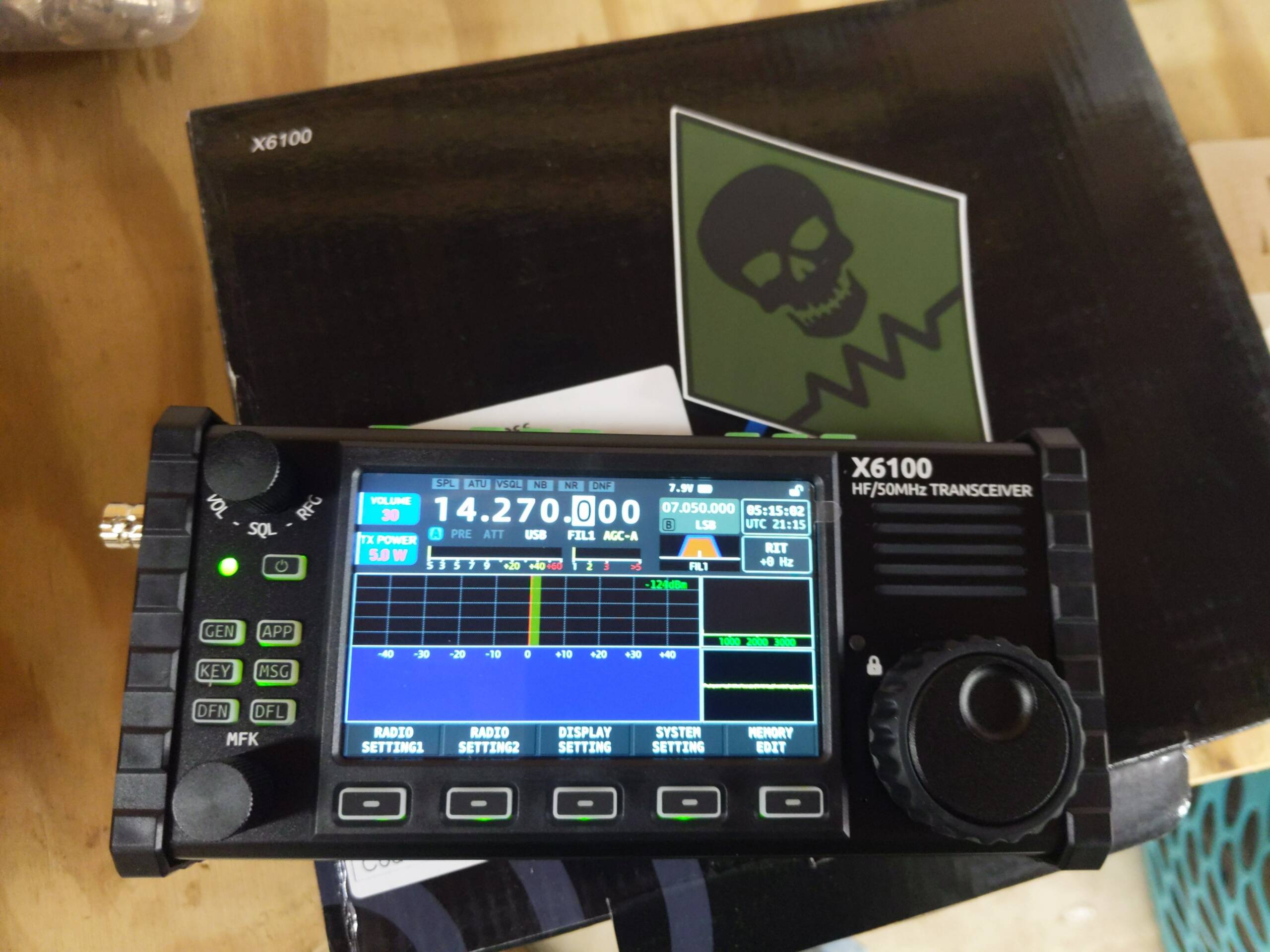

X6100 is an ultra-portable shortwave transceiver. It adopts the SDR software radio platform architecture of excellent performance, which carries powerful baseband and RF unit, integrating rich and diversified operating functions, bringing you a brand-new recognition and experience on amateur radio. With its compact structure and tiny appearance, you can immediately set forth on a journey with it, get close to nature and enjoy the fun of outdoor communication.
LATEST FIRMWARE: 2022.04.18
- SDR Structure
- HF/50MHz Full Mode (supporting data communication)
- 4" (3.46 x 2.13in) High-resolution Color Screen, 800*480
- Built-in 3000mAh Rechargeable Lithium Battery
- Built-in Automatic Antenna Tuner
- Built-in CW/RTTY/PSK decoder
- Integrated SWR Scanner & Voice Call
- Integrated Modem, Preset message, CW Automatic Call
- Built-in Bluetooth/Wifi function, enable wireless audio/keyboard/mouse operation
- Integrated USB control/transmission, supports USB HOST
- Built-in high-stability TCXO internal clock source
Analog – SDR Radio
Software-defined radio (SDR) system uses software for the modulation and demodulation of radio signals. Processing via a computer or other digital devices with software, the X6100 can provide you more info in real-time, complete complex operations and process data faster.
What’s in the box?
1 x Xiegu X6100 Transceiver
1 x USB Type-C Data Cable
1 x Multi-function Speaker Mic
1 x Power Adapter
1 x Charging Cable
1 x User Manual
Antenna tuner initial tuning time: ≤15s
Antenna tuner tuning read time: ≤0.2s
Wireless LAN standard: IEEE802.11b/g/n
Authentication and encryption: WEP (64/128bit)
Frequency band: 2.4G
Bluetooth version: 4.0
Note that the center pin is positive.
Note that as for the included power cable, the white one is positive and black one is negative.
|Frequency Receiving||0.5MHz~30MHz | 50MHz~54MHz|
|Frequency Transmitting||1.8～2.0MHz | 3.5～4.0MHz | 5.3MHz (60 Meters), 7.0～7.3MHz | 10.1～10.15MHz, 14.0～14.35MHz | 18.068～18.168MHz, 21.0～21.45MHz | 24.89～24.99MHz, 28.0～29.7MHz | 50.00～53.99MHz|
|Operation Mode||USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)|
|Minimum Frequency step||10Hz|
|External Power Supply Voltage||DC 9.0V~15.0V, negative ground|
|Frequency Stability||±1ppm (20 minutes after start)|
|Antenna Port Impedance||50Ω|
|Antenna Interface Type||BNC|
|Transmission power||External power supply: 10W | Battery power supply: 5W|
|Current consumption||Standby: 330mA (Max) | Transmit: 3A (Max)|
|Overall dimensions||About 7.1*3.4*2in | 180*86*49mm|
|Weight||about 1.94lb | 880g (host only)|
How to connect X6100 to XPA125B Amplifier?
X6100 can expand the output power to 100W when connected to the XPA125B power amplifier through a L4001 cable (not included).
After connection, X6100 can automatically control the band switching of XPA125B. At the same time, ALC control will be established between the two machines. When the power output from X6100 to XPA125B exceeds the limit, it will be automatically reduced, so that the output power of XPA125B is constant at about 100W.
We recommend you set the output power of X6100 to ≤2.5W to protect the power amplifier equipment.
Recommended Accessories (not included in the package)
1. Xiegu XPA125B 100W Power Amplifier & L4001 Cable
2. Xiegu GNR1 Digital Audio Noise Filter
