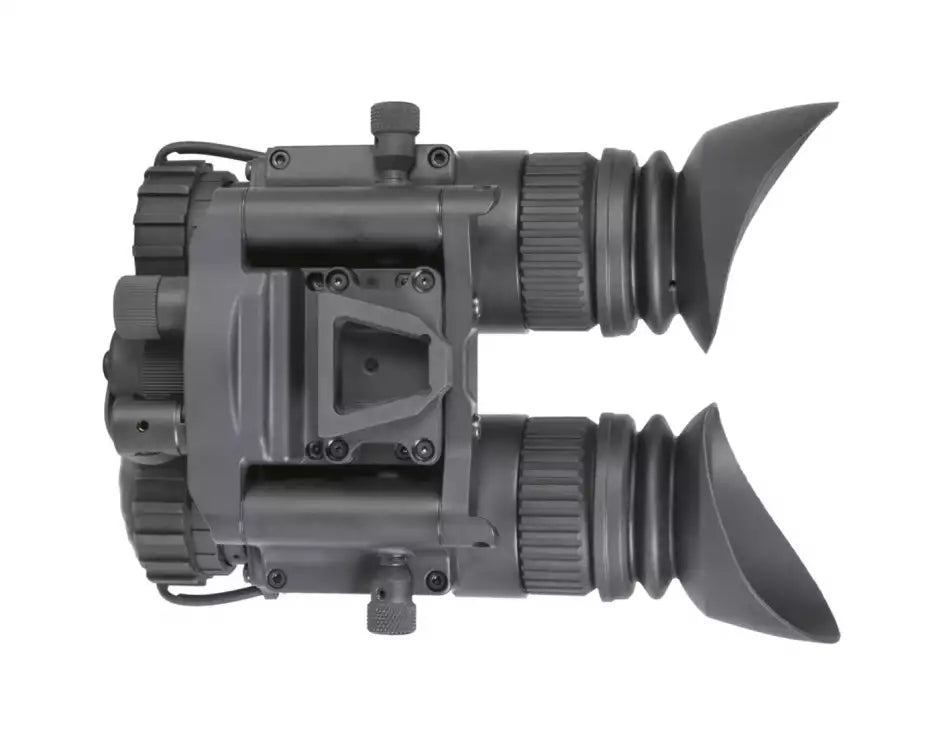

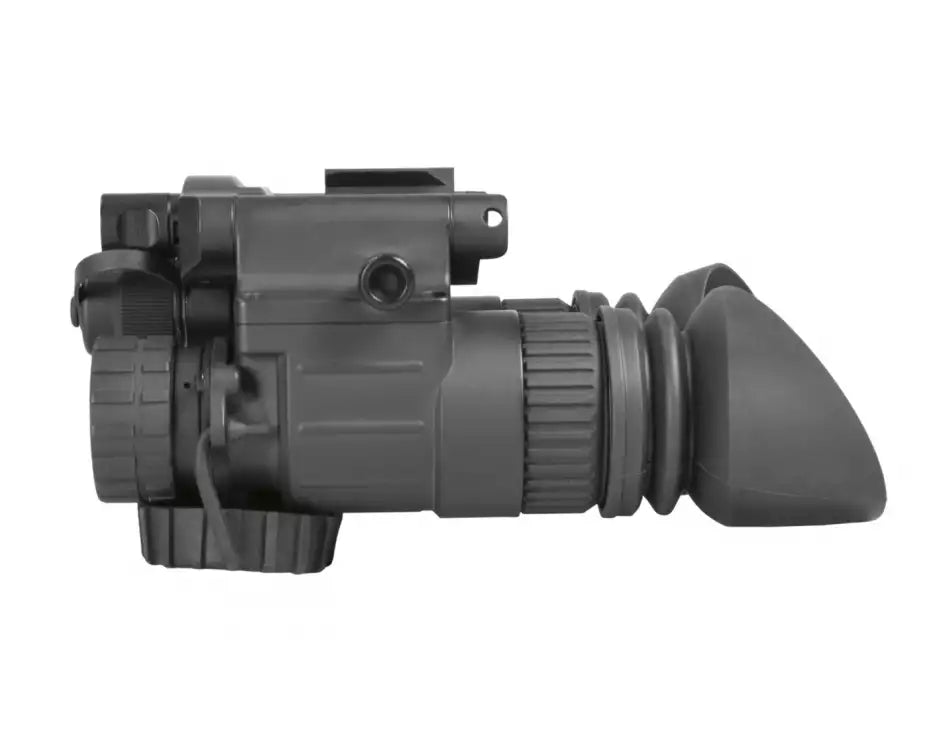

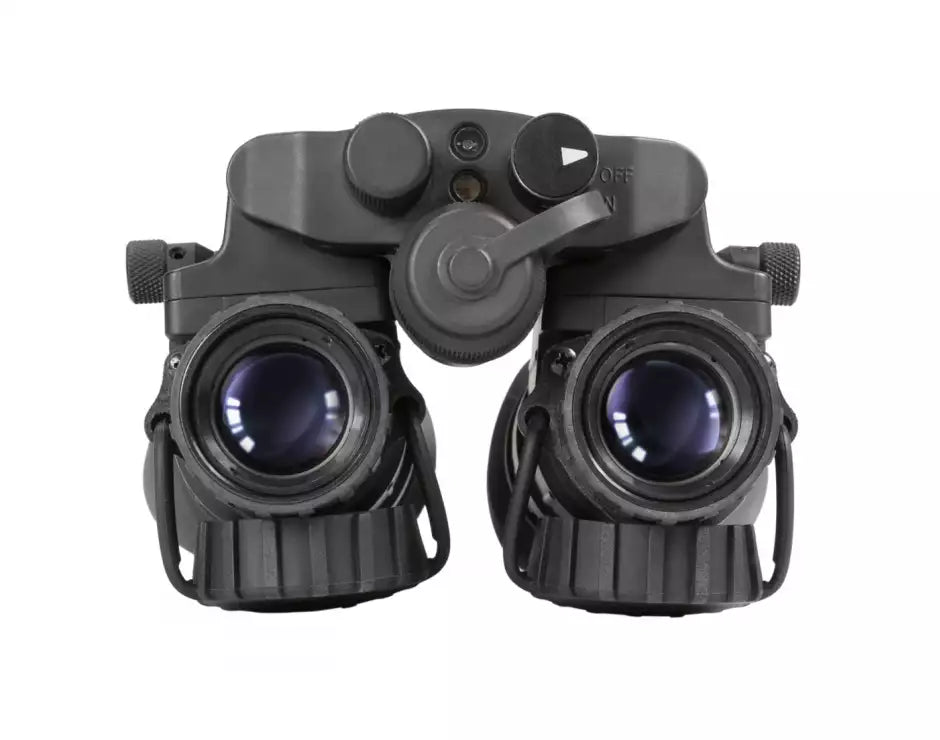

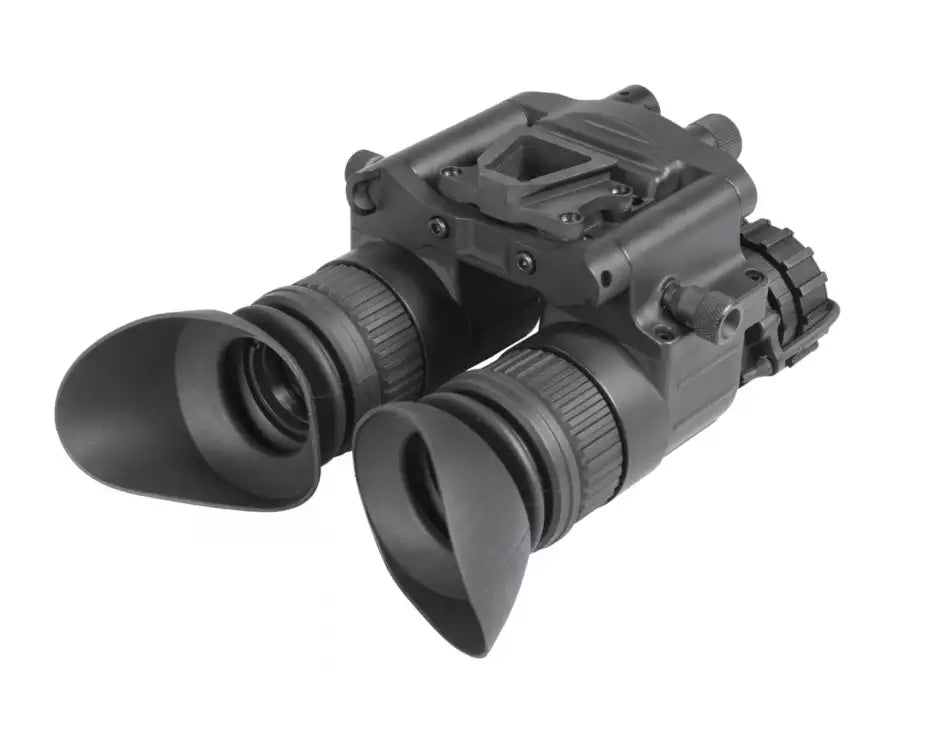

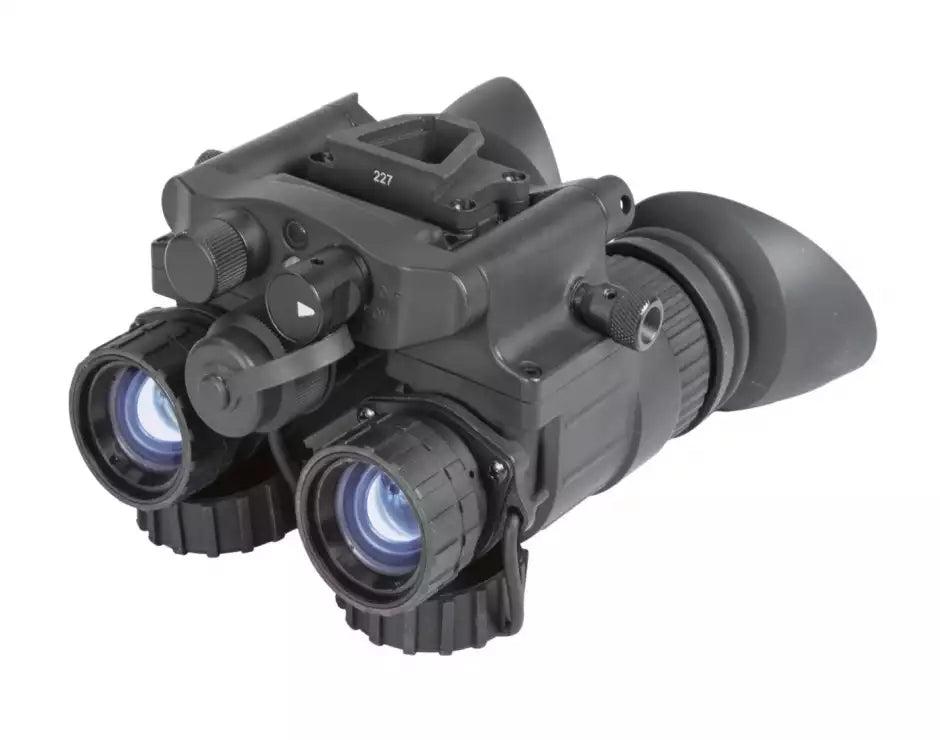

AGM NVG-40 NW1
AGM NVG-40 NW1
Couldn't load pickup availability
Description And features

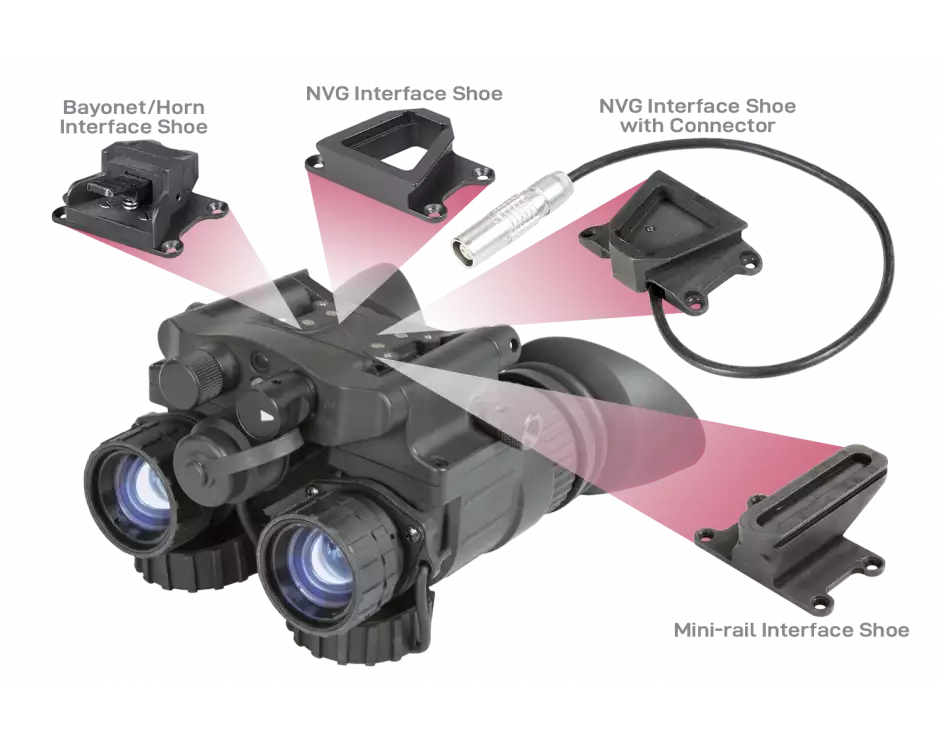

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

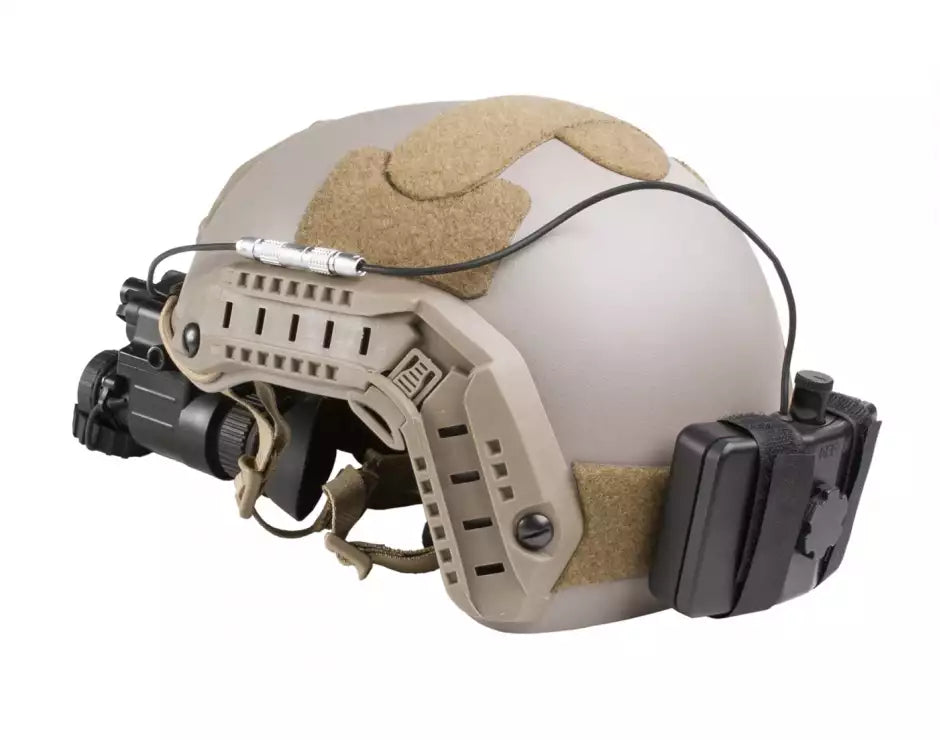

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Warning: California's Proposition 65
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Waterproof

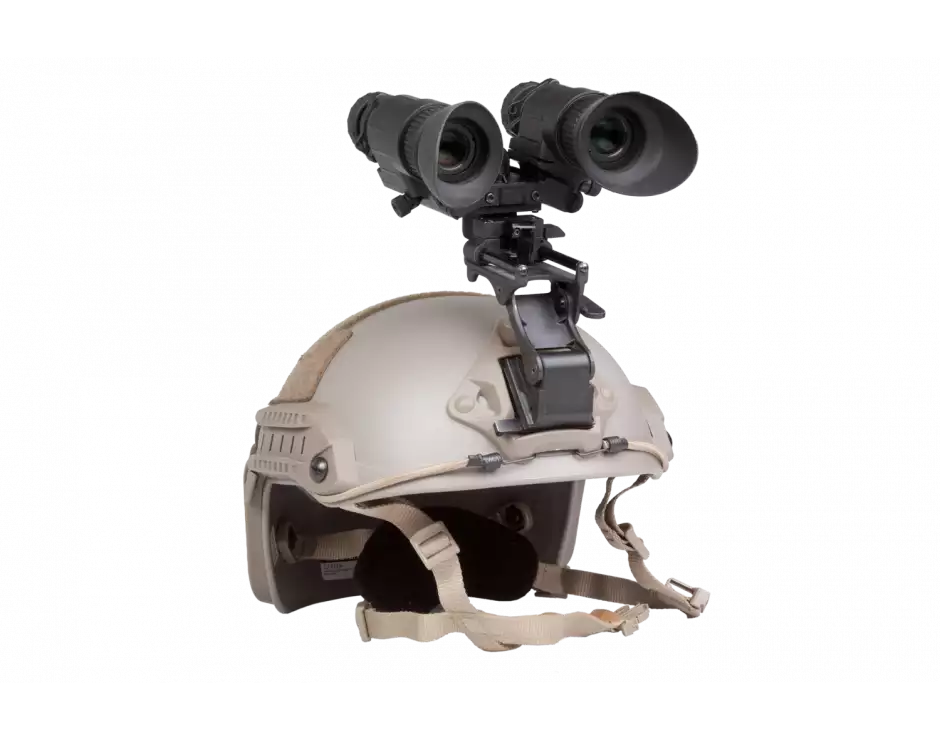

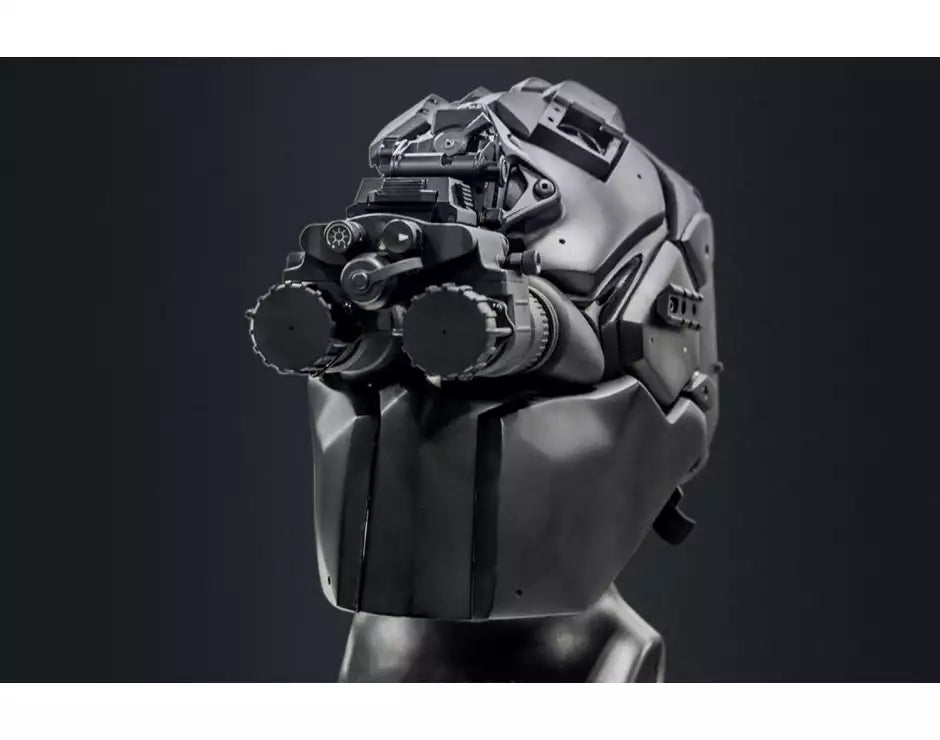

- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- 3-Year warranty
Specifications
Image Intensifier Tube
Gen 2+ "White Phosphor Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm, F/1.3
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
25 mm
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low Battery IR On Excessive Light Conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Waterproof
Yes
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
645 g (1.42 lbs)
Overall Dimensions
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Package Includes
Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
Protection Level
IP67
Image Intensifier Tube: Gen 2+ "White Phosphor Level 1"
Magnification: 1x
Lens System: 27 mm, F/1.3
FOV: 40°
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
