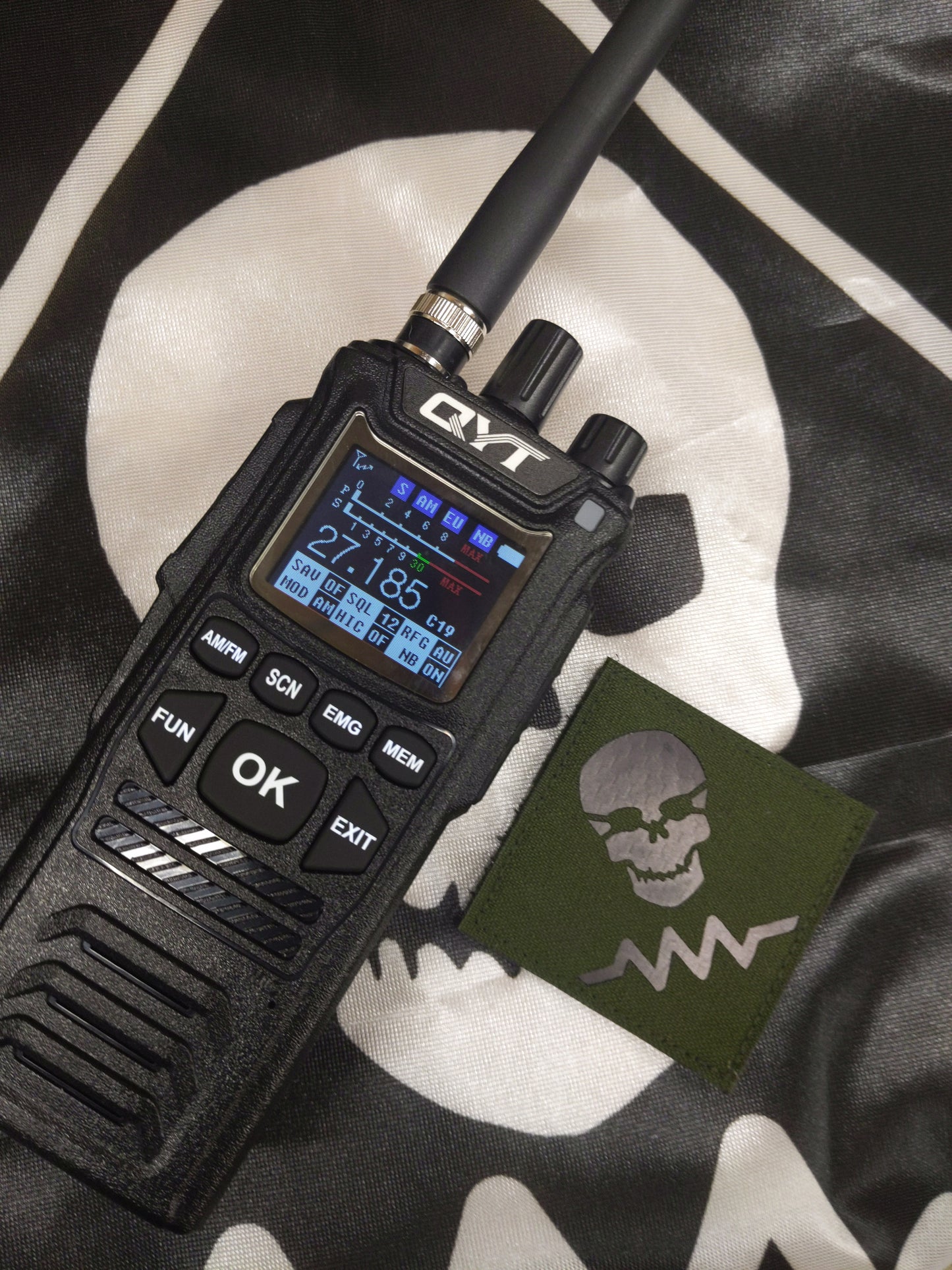

QYT CB-58
QYT CB-58
Couldn't load pickup availability
Citizen's Band. It evokes a nostalgia...like Smokey and the Bandit and Breaker Breaker... but is it still relevant? Well, the QYT CB-58 certainly suggests it is. Aside from being in the most common frequency range in the US, its built quality makes it an absolute beast. With a BNC antenna connector it's easy to rig home brew antennas like we build in the RTO Course. Best part? Its got the same two prong Kenwood plug that the Baofengs have - meaning all of the same accessories work.
Oh and I almost forgot - its both AM and FM modes, and since nearly all of the CB radios in the US are AM, you've got a serious degree of security through obscurity. All the better when you're sending data bursts via the techniques in The Guerrilla's Guide to the Baofeng Radio.
Package includes AA battery pack, rechargeable battery, battery charger.
QYT 27MHz CB-58 Radio Standard Handheld 40 Channel AM/FM CB Radio 4W Handheld Walkie Talkie 26.965-27.405MHz
Specification:
Power: 4W
Modulation Mode： AM/FM
Frequency Range: 27MHZ(26.965-27.405MHz)
Frequency Tolerance: ±5.0ppm
Input Voltage: 12V
Dimensions(in mm): 165(W) x 67(D) x44(H)
Weight：Approx.444.5g
Frequency Control: PLL Synthesizer
Operating Temperature Range: -20°C TO + 55°C
Transmit: 2A MAX
Current Drain: Receive(Squelched 0.3A)Â VOL Max(0.8A)
Antenna Connector: UHF,SO-239
Battery Model: WB58L
Battery Capacity：4100mAh Battery Watt Hours: 49.2Wh
Receiver:
Sensitivity: Less than 1uV for 10dB(S+N)/N
Image rejection: 70dB
Adjacent channel rejection: 60 dB
IF frequency: 1st 10.695MHz     2nd 455KHz
Automatic gain control(AGC): less than 10dB change in audio/output for inputs from 10 to 50000uV
Squelch: less than 1uV
Frequency response: 300-3000Hz
Main Feature:
â–²40 Channel Multiband CB
(Incorporates 40UK/40EU channels plus other European and North American frequency bands)
â–²TFT LCD Display
â–²8 Optional Channels
â–²CTCSS/DCS
â–²DTMF
â–²TOT
â–²Automatic Squelch function
â–²Squelch level adjustable
â–²Receive gain control adjustment
â–²Editable channel scan
â–²Shortcut channel 9/19
â–²NB/ANL wave filter
â–²Audio high frequency cancellation
â–²Keyboard Lock
Transmitter:
â–²Power output: 4Watt/FM/AM
â–²Transmission interference: inferior to 4nW(-54dBm)
â–²Frequency response: 300-3000Hz
â–²Modulated signal distortion: inferior to 5%
â–²Output impedance: 50 ohms
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions
Share
Great little radio. Taking my dog on walks in my little town in northeastern Virginia, I'm getting skip at night all the way from the Midwest, with the included long antenna I bought from Brushbeater.
Radio was shipped to my house in two days.
Thanks Matt!
Order and shipping was great. Seems to work as described, I’m a beginner so I’m still figuring it out.
This is the best handheld cb I've used so far. Decent range with supplied antenna. Running this on a inverted V dipole changed the game. The K-plug socket allows the use of speaker mic and accepts an APRS cable for Data if needed. Overall a good purchase.
Can’t say enough good about NC scout and Brushbeater great service, people and products they way it should be
Great radio. Functions EXACTLY as NC Scout said it would. 2 pin connector accepts all the stuff you already have for your Baofengs. Transmits on frequency. Receives good with the stock antenna. Transmits ok with stock antenna. This is truly what you want working in a team environment though. Get the whip also available here if you want to use it in a more traditional manner.
